Full-Automatic Blood Collection Tube Production Line

FOB Price:	150,000.00 - 250,000.00 USD/line
Supply Ability:	2 Other per Month
Shipping:	sea shipment
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, Southeast Asia, Mid East, Eastern Asia
Place of Origin:	Guangdong in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Model Number: AYJ-LSX
Brand Name: A&J

Specifications

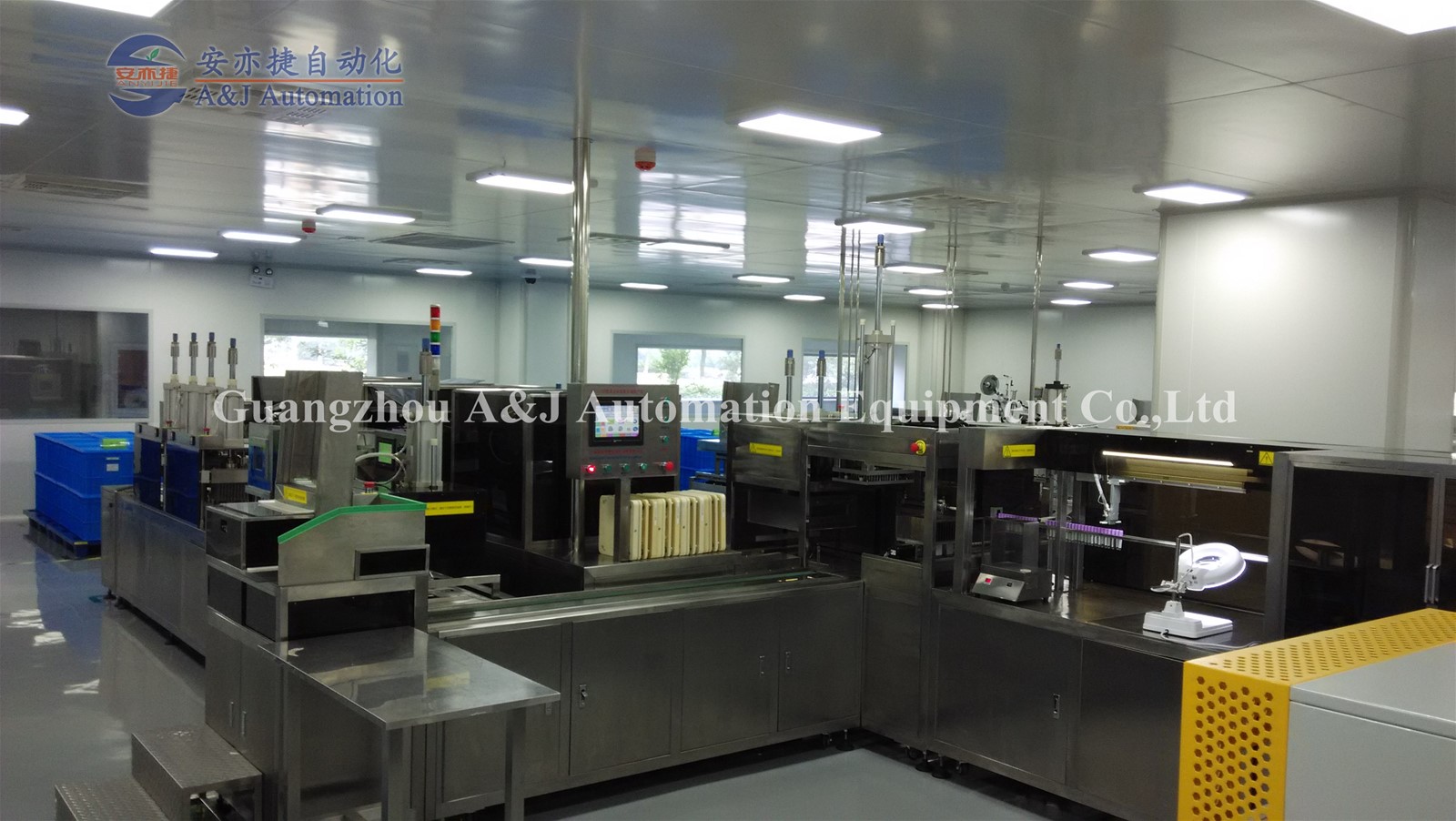

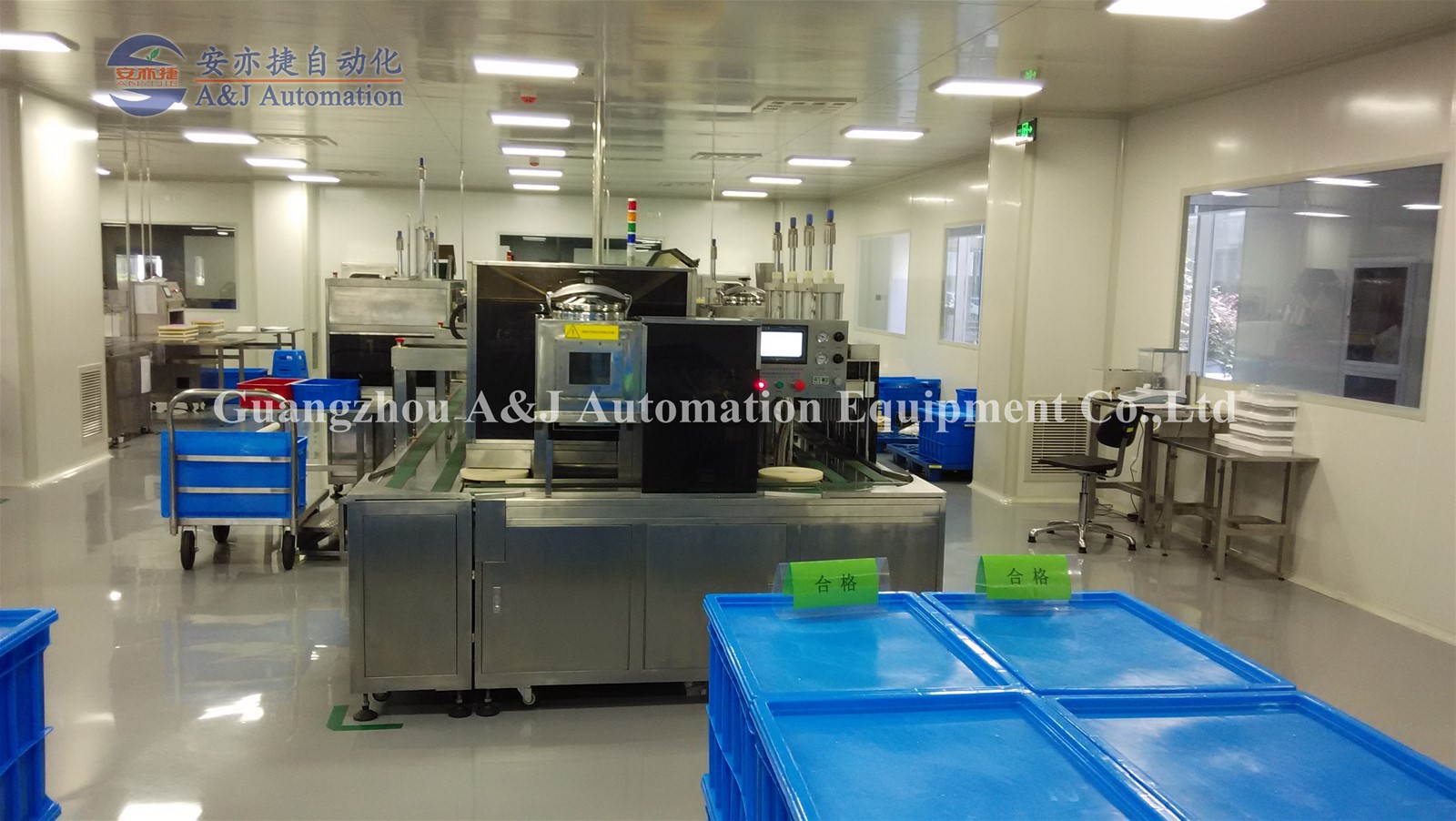

Disposable Vacuum Blood Collection Tube Assembly Line

Specialized in Manufacturing, Keep Improving

Holds 7 patents( including 2 innovation patents, 4 utility model patents and 1 design patent).

1, Automatic labeling
2, Automatic tube loading
3, spraying&filling
4, PTC drying
5, cap adding
6, vacuum&cap-pressing
7, load to EPS tray
8, shink packing

Production Process of full automatic assembly line:

1. Tube Labeling part: Paste label on tube wall

2. Tube lifting part: Transport tube from labeling part to next part

3. Tube Loading part: Load tubes into tube rack

4. Reagent Filling & Spraying part

5. Drying part: Dry tube(1) + Dry tube(2) + Dry tube(3) + Dry tube(4)

6. Caps adding part

7. Vacuuming and Capping part

8. Place finished tube into EPS tray part

9. Shrink packing part

Brief description of each process

Part 1 Tube Labeling:

Automatically paste label on tube outside wall;

Equipped with two channels for tube loading.

Part 2 Tube lifting:

Second, one lifting system transport tubes with labels to the tube loading part;

Part 3 Tube loading:

Automatically load tubes into test tube rack;

Load 10 pcs tubes at one time, 10 times for one tray.

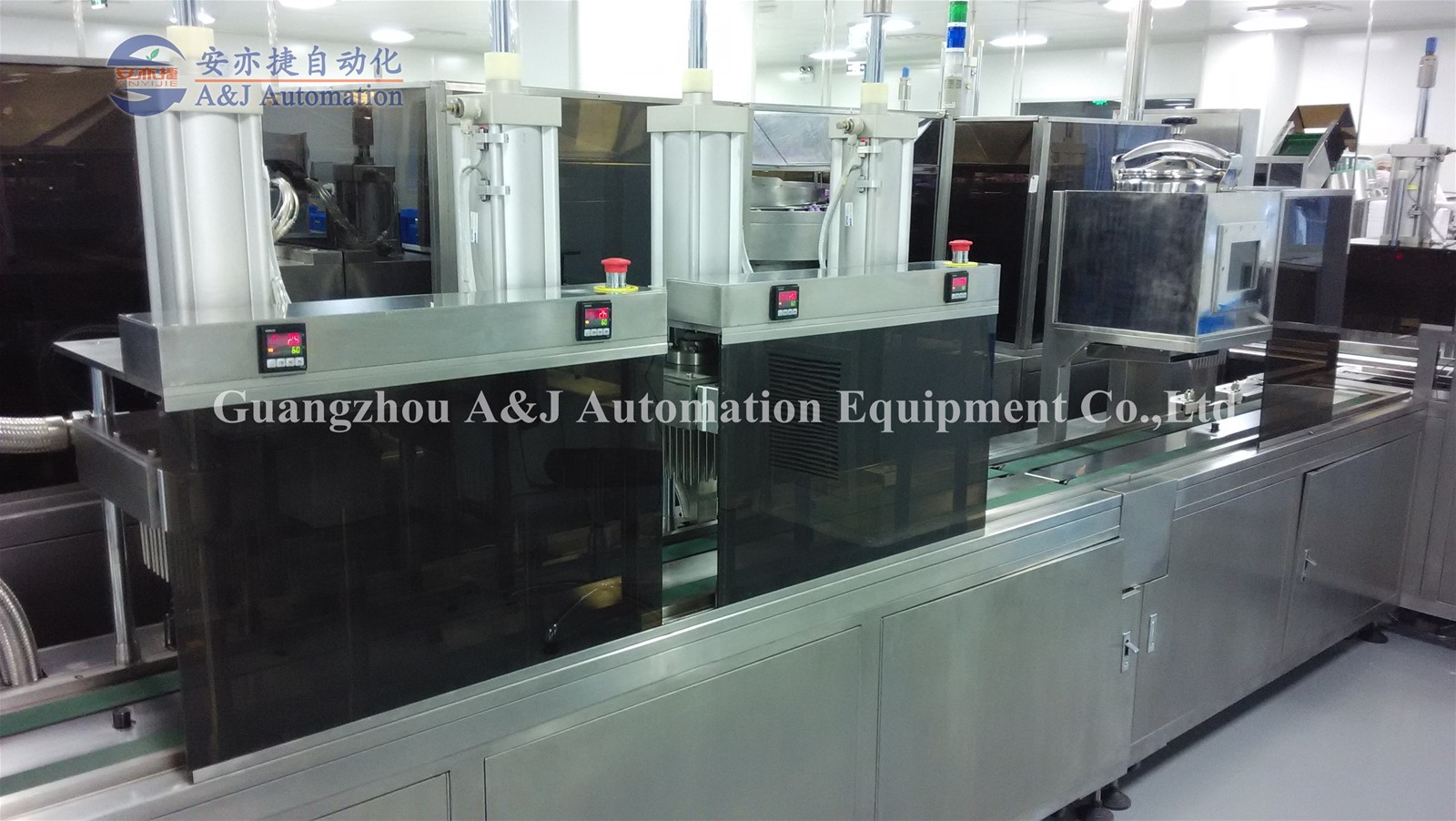

Part 4&5 Reagent filling & spraying + Drying:

Fill or spray reagent into tube and dry tube;

Equipped with ten set nozzles and ten valves for reagent solution dispensing, one to one control, high precision, good repeat-ability and conformity; Totally four station for tube drying,

Drying temperature and time are adjustable.

Part 6 Caps adding part:

Put the assembled rubber caps into tube rack;

Equipped with two vibrate feeders and 5 orbits for caps feeding. Catch caps 50 pcs at one time, two times for one tray.

Part 7 Vacuuming and capping:

Do vacuum and capping (close cap) at the same time.

Part 8 Place finished tube into EPS tray:

after closed cap, automatically transfer finished tubes from tube rack to EPS tray.

Part 9 Shrink packing:

Pack film with finished tubes with EPS tray.

Automatically wrap film, cut film, and heating.

Main Technical Parameters

Worker required	3-5 persons	Filling Chemical	EDTA/Heparin,etc.
Production Capacity	8000-12000Pcs/hour	Work hour/Day	24hours
Test Tube tray	100pcs/plate	Production Test Tubes	1375mm/ 13100mm
Running Route	Automatic Recycling Mode	Exterior Size	about 800340240cm
Air pressure Range	0.8---1.0 Mpa	Power	16kw
