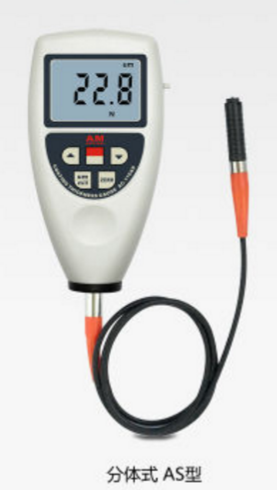

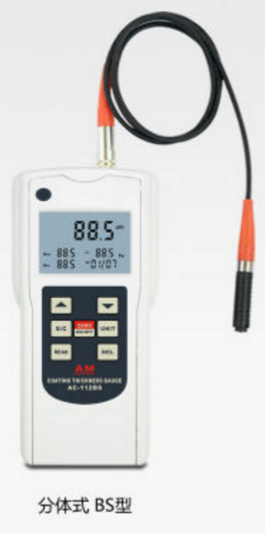

Paint Coating Thickness Gauge Meter

FOB Price: 220.00 - 350.00 USD/Set
Supply Ability: 10,000 Set(s) per Year
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, Paypal
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: carrying case

Quick Details

  • Model Number: AC-110A
  • Brand Name: AMITTARI

Specifications




paint coating thickness gauge meter

Product Parameters

Measuring Range 0~1250 um
0~50mil (other range may be specified)
Resolution

0.1 um (0~99.9um)/1 um (over 100um)

Accuracy:
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area 6 mm

Minimal Surface

F Type convex1.5 mm / concave 25 mm
NF Type  convex 3 mm / concave 50mm
Operating Condition Temp: 0~50°C /
Humidity: <95%
Size
120x63x25 mm
Power Supply 2x1.5vAAA Um-4 Battery
Weight
90 g  (Not including batteries)

Product Accessories





Standard Accessories

Main Unit
Wrist Ring

Calibration Foils

Substrate  ( Iron )

Substrate  ( Aluminium )

Carrying Case
Operation Manual

Optional Accessories


USB data output

Bluetooth data output


Buying Guide

When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell Our customer -service worker.

the following three items are basic optional accessories choices

Standard Accessories+USB data output

Standard Accessories+Bluetooth data output


Bluetooth Accessories

Amittari  instruments  generally  can  be  supplied  with   Bluetooth?  data  output function ( except  few  instruments ). as  Bluetooth?  data  output  is  included  in optional accessories, not  standard delivery,it needs to be indicated when choose.10 meters to 100 meters distance can be chosen.Please kindly  contact  with   the customer-service worker  if you need Bluetooth?  data  output.
