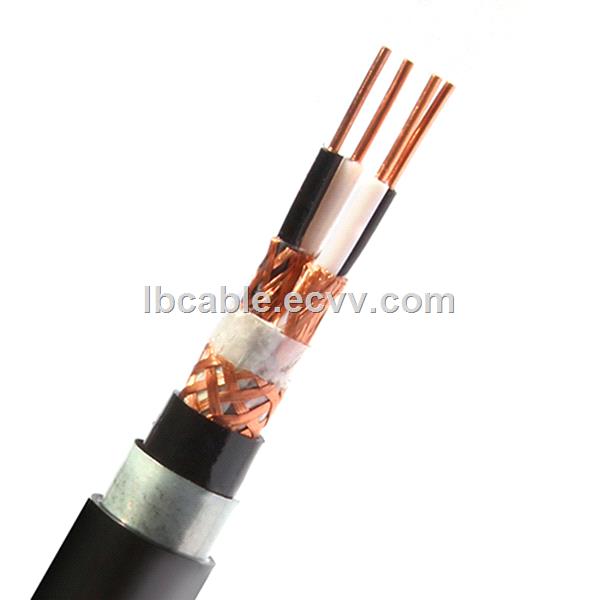

PE Insulated/ Cu Tape Screened/PVC Sheathed/Swa/Computer Cable

FOB Price:	1.00 - 2.00 USD/Meter
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Jacket: PVC
Conductor Material: Copper
Shielding: Braid
Model Number: DJYVP22
Brand Name: LUBAO

Specifications

PE Insulated/ Cu Tape Screened/PVC Sheathed/Swa/Computer Cable
PE Insulated Cu Tape ScreenedPVC SheathedSwaComputer Cable

1. Applicable Standard
TICW/06-2009

2. Application Area
1: AC rated voltageU0/U:300/500V. Long term work- ing temperature of cable conductor is 70oC & 105oC for cable with PVC insulation, 70oC for cable with PE insula- tion and 90oC for cable with XLPE insulation.(XLPE insu- lation includes silane XLPE & irradiation XLPE insulation.)
2: Min. Environment temperature is -40oC for fixed
Laying and -15oC for non-fixed laying. Environment tem- perature shall be no less than 0oC for installing.
3: Min.Bending radius allowed by cable is no less than 6 times that of cable OD for non-armored soft cable or braided shielding cable and 12 times that of cable OD for cable with metallic tape wrapped shielding or steel wire/steel tape armor.

3. Specification
Pair No.: 1~48 pairs
Core No. Per pair: 2 cores (equal to 2 wire group ) or 3 cores (equal to 3 wire group)
Cross section of conductor: 0.75mm2-6mm2

4. Type & Description
Can be laid indoor,in tunnels or some fixed occations.
DJVPV PVC insulated, pair-twisted Cu wire woven, individual screen, PVC sheathed computer control cable
DJVPVP PVC insulated, pair-twisted Cu wire woven, individual and overall screen, PVC sheathed computer control cable
DJVVP PVC insulated, pair-twisted Cu wire woven, overall screen, PVC sheathed computer control cable
DJVP2V PVC insulated, pair-twisted Cu tape individual screen, PVC sheathed computer control cable
DJVP2VP2 PVC insulated, pair-twisted Cu tape individual and overall screen, PVC sheathed computer control cable
DJVVP2 PVC insulated, pair-twisted Cu tape overall screen, PVC sheathed computer control cable
DJVP3V PVC insulated, pair-twisted Al/plastics combined tape individual screen, PVC sheathed computer control cable
DJVP3VP3 PVC insulated, pair-twisted Al/plastics combined tape individual and overall screen, PVC sheathed computer control cable
DJVVP3 PVC insulated, pair-twisted Al/plastics combined tape overall screen, PVC sheathed computer control cable
the above-mentioned Can be laid indoor,in tunnels or some fixed occations.

DJVPV22 PVC insulated, pair-twisted Cu wire woven individual screen,PVC sheathed and steel tape armored computer control cable
DJVPVP22 PVC insulated, pair-twisted Cu wire woven individual and overall screen,PVC sheathed and steel tape armored computer control cable
DJVVP22 PVC insulated, pair-twisted Cu wire woven overall screen,PVC sheathed and steel tape armored computer control cable
DJVP2V22 PVC insulated, pair-twisted Cu tape individual screen,PVC sheathed and steel tape armored computer control cable
DJVP2VP2-22 PVC insulated, pair-twisted Cu tape individual and overall screen,PVC sheathed and steel tape armored computer control cable
DJVVP2-22 PVC insulated, pair-twisted Cu tape overall screen,PVC sheathed and steel tape armored computer control cable
the above-mentioned Can be laid indoor, and tunnels places being able to bear large outer mechanical force.

DJYPV PE insulated, pair-twisted Cu wire woven individual screen,PVC sheathed computer control cable
DJYPVP PE insulated, pair-twisted Cu wire woven individual and overall screen,PVC sheathed computer control cable
DJYVP PE insulated, pair-twisted Cu wire woven overall screen,PVC sheathed computer control cable
DJYP2V PE insulated, pair-twisted Cu tape individual screen,PVC sheathed computer control cable
DJYP2VP2 PE insulated, pair-twisted Cu tape individual and overall screen,PVC sheathed computer control cable
DJYVP2 PE insulated, pair-twisted Cu tape overall screen,PVC sheathed computer control cable
DJYP3V PE insulated, pair-twisted Al-plastics combined tape individual screen,PVC sheathed computer control cable
DJYP3VP3 PE insulated, pair-twisted Al-plastics combined tape individual and overall screen,PVC sheathed computer control cable
DJYVP3 PE insulated, pair-twisted Al-plastics combined tape overall screen,PVC sheathed computer control cable
the above-mentioned Can be laid in indoor, tunnels and some fixed places.

DJYPV22 PE insulated, pair-twisted Cu wire woven, individual screen,PVC sheathed and steel tape armored computer control cable
DJYPVP22 PE insulated, pair-twisted Cu wire woven, individual and overall screen,
PVC sheathed and steel tape armored computer control cable
DJYVP22 PE insulated, pair-twisted Cu wire woven,overall screen,PVC sheathed and steel tape armored computer control cable
DJYP2V22 PE insulated, pair-twisted Cu tape individual screen,PVC sheathed and steel tape armored computer control cable
DJYP2VP2-22 PE insulated, pair-twisted Cu tape individual and overall screen, PVC sheathed and steel tape armored computer control cable
DJYVP2-22 PE insulated, pair-twisted Cu tape overall screen, PVC sheathed and steel tape armored computer control cable
the above-mentioned Can be laid in indoor, tunnels and places being able to bear large outer mechanical force.

DJYJPV XLPE insulated, pair-twisted Cu wire woven individual screen, PVC sheathed computer control cable
DJYJPVP XLPE insulated, pair-twisted Cu wire woven individual and overall screen, PVC sheathed computer control cable
DJYJVP XLPE insulated, pair-twisted Cu wire woven overall screen, PVC sheathed computer control cable
DJYJP2V XLPE insulated, pair-twisted Cu tape individual screen, PVC sheathed computer control cable
DJYJP2VP2 XLPE insulated, pair-twisted Cu tape individual and overall screen, PVC sheathed computer control cable
DJYJVP2 XLPE insulated, pair-twisted Cu tape overall screen, PVC sheathed computer control cable
DJYJP3V XLPE insulated, pair-twisted Al-plastics combined tape individual screen, PVC sheathed computer control cable
DJYJP3VP3 XLPE insulated, pair-twisted Al-plastics combined tape individual and overall screen, PVC sheathed computer control cable
DJYJVP3 XLPE insulated, pair-twisted Al-plastics combined tape overall screen, PVC sheathed computer control cable
the above-mentioned Can be laid in indoor, tunnels, cables and some fixed places.

DJYJPV22 XLPE insulated, pair-twisted Cu wire woven individual screen, PVC sheathed and steel tape armored computer control cable
DJYJPVP22 XLPE insulated, pair-twisted Cu wire woven individual and overall screen, PVC sheathed and steel tape armored computer control cable
DJYJVP22 XLPE insulated, pair-twisted Cu wire woven overall screen, PVC sheathed and steel tape armored computer control cable
DJYJP2V22 XLPE insulated, pair-twisted Cu tape individual screen, PVC sheathed and steel tape armored computer control cable
DJYJP2VP2-22 XLPE insulated, pair-twisted Cu tape individual and overall screen, PVC sheathed and steel tape armored computer control cable
DJYJVP2-22 XLPE insulated, pair-twisted Cu tape overall screen, PVC sheathed and steel tape armored computer control cable
the above-mentioned Can be laid in indoor, tunnels and cables, places able to bear large outer mechanical force.
Note: All the type can be divided into flame retardant degree A, B, C.
