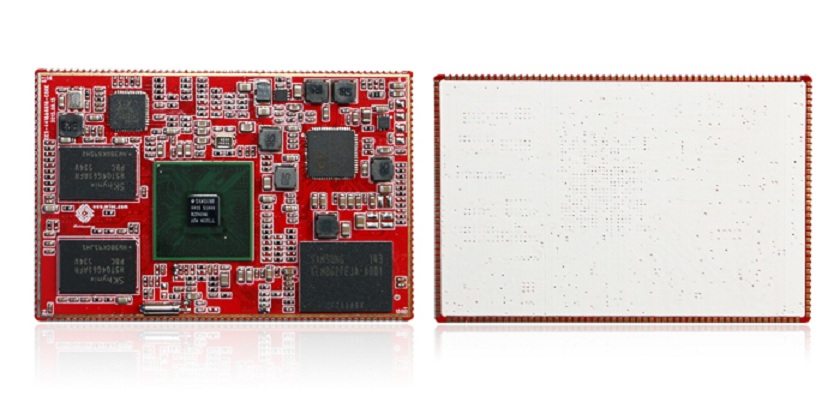

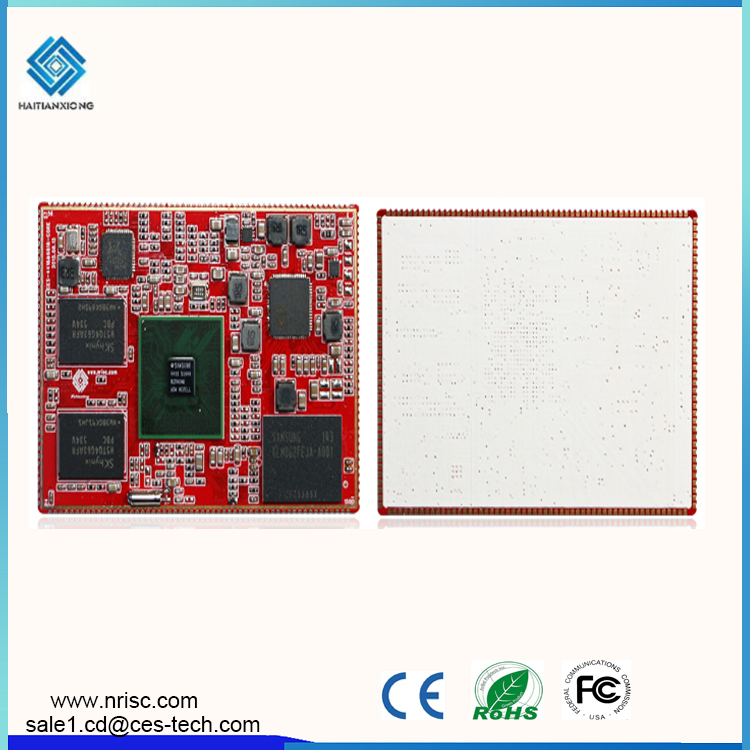

S5P4418 Mother Board Cortex-A9 Linux & Android & Ubuntu
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | 7 days after payment |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1 piece per bag |
Quick Details
- Brand Name: Haitianxiong
- Size: 53.5*65mm
- Type: core board
- Material: Aluminum
- Color: red
- Model Number: S5P4418
Specifications
S5P4418 Mother Board Cortex-A9 Linux & Android & Ubuntu
1. Processor: S5p4418 ARM Corter-A9, quad-core processor, main frequency is up to 1.4GHz
2. 32KB*4I/D L1 cache, 1MB L2 cache
3. Support H.263, H.264, MPEG1, MPEG2, MPEG4, VC1, VP8, Theora, AVS, RV8/9/10, MJPEG
multimedia decode
4. Support Open GLES1.1/2.0OpenVG1.1
5. Support LCD/VGA, LVDS, MIPI, HDMI display
6. Memory: Standard 1GB DDR3, optional 1GB or 2GB DDR3
7. eMMC: 8GB eMMC
8. PMIC: PMIC adopts AXP228, with 5-way DC/DC and 14-way LDO output power
9. Ethernet: gigabit Ethernet
10. Pin Number: 188pins
11. Size: 43*65mm
CoreBoard Configuration:
CPU
S5p4418
Architecture
ARM Cortex-A9
CPU cores
Quad-core
L1 Instruction Cache
32KB
L1 Data Cache
32KB
L2 Cache
1MB
Memory
Standard 1GB DDR3, optional 1GB or 2GB DDR3
Storage
8GB eMMC
Power Management Chip
AXP228
Pin Number
188
Start Mode
eMMC, SD
Operating System
Android5.1, Linux3.4, Ubuntu12.04
