S5P6818 Development Platform Eight Core ARM Cortex-A15 Andorid/Linux/ Ubuntu

Specifications

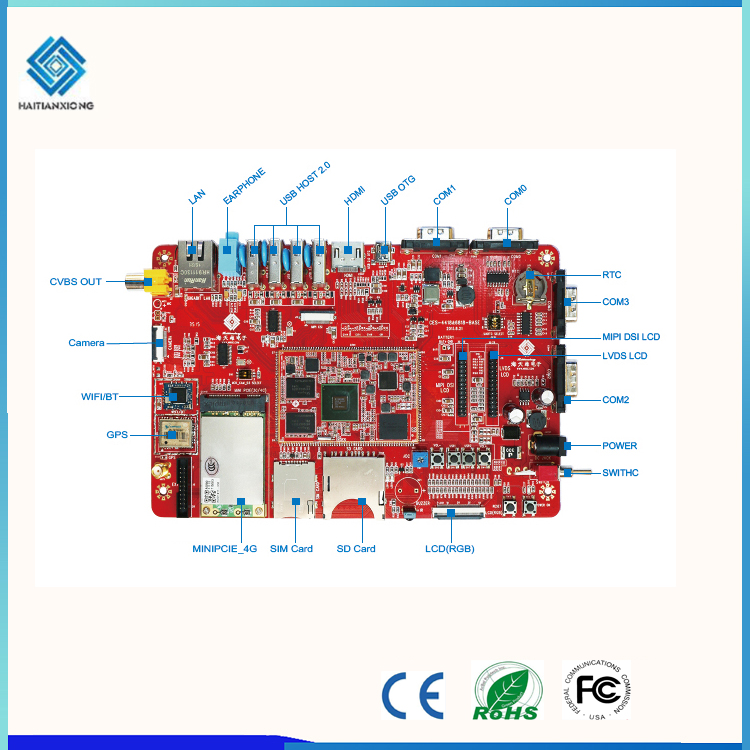

Hardwares

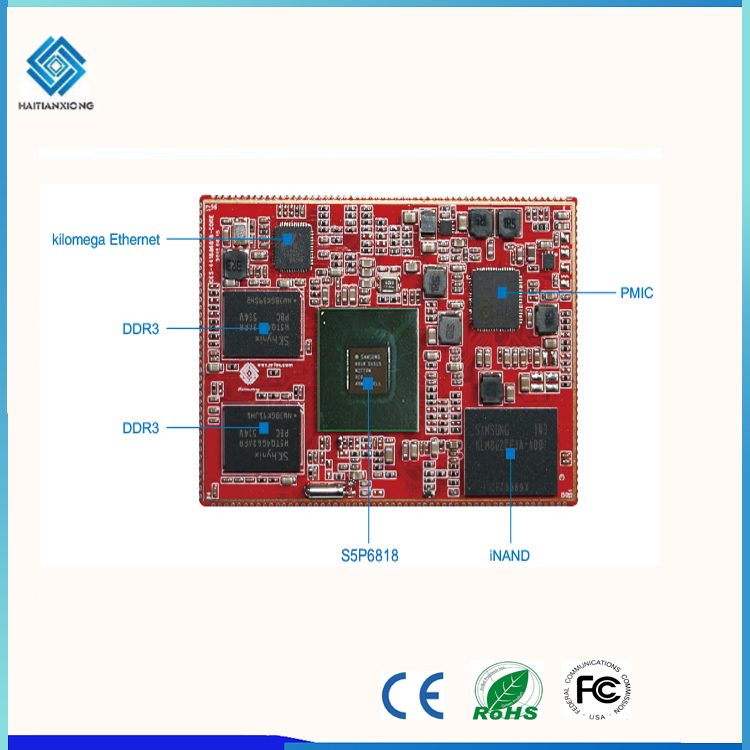

CPU: ARM Cortex-A53 S5P6818 64bit eight-core processor, frequency at 1.4~1.6GHz

 Memory: 1GB or 2GB DDR3, rate for 800MHz, standard 1GB DDR3

3D graphics accelerating engine: ARM Mali-400 MP

 eMMC: 8GB eMMC

 PMIC: AXP228, supporting dynamic FM and coulombmeter, etc

4G: Mini-PCIE interface with SIM card slot

 WiFi/Bluetooth: Supports all-mode 802.11b/g/n and bluetooth communication

 GPS: -165dBmtracing sensitivity and -148dBm capture capacity

 Camera interface: 1-channel 24pin camera interface

USB 2.0 HOST: 4 USB Host 2.0 mater device interface

 USB OTG: 1 USB OTG 2.0 subordinate interface

 SD/HSMMC: 2-channel SDIO 2.0, leading to 1 SD/MMC card slot

 UART: 4 COM0-COM4 UART serial ports at 115200bps baud rate for GPS communication,  common serial ports, debugging information output etc

 HDMI: 1 HDMI 1.4 (1080P/60Hz) HD interface

Video output interface: 1 CVBS video output interface

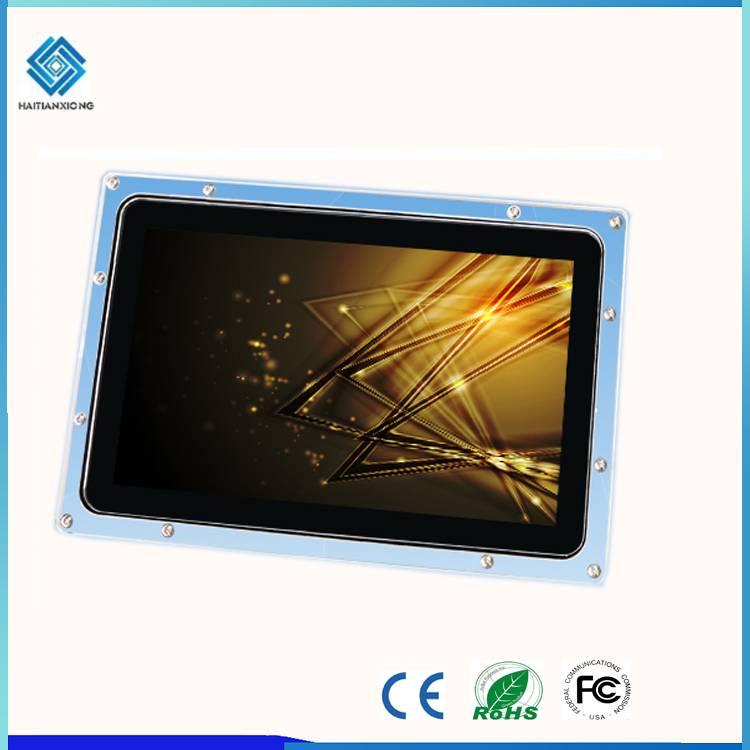

 Display: Standard 10.1 inch LVDS LCD, with capacitive touch function, default supporting 1024*600  resolution

 Ethernet Port: 1 kilomega network card slot, using RTL8211E    PHY network chip

 Audio Cell: ES8316/IIS interface, supporting record and broadcast functions

Acceleration sensor: onboard with Acceleration sensor 3-axis 2g/4g/8g 10bit, I2C port

Function Keys: Power button, reset and interrupt buttons etc

 Infrared Sensor: Serial communication for IRDA

 Buzzer: 1 MMBT3904/SOT buzzer

 Battery: 1 Ni-MH Cylindrical Battery for RTC

Power Supply Mode: 12V/3A direct current supply with power switch and indicator light

Other Expansion Interfaces: MIPI DSI, LCD(RGB)  and other expanded interfaces for thesignals users need

  Operation System: Android 5.1.1 Lollipop
  Linux Kernel: Linux 3.4.39

  ystem Guidance Procedure: U-boot2014.07

 Serial Debugging Tool: Minicom terminal

 Cross Compilation Tool: arm-eabi-4.8(gcc4.8)

  File System Format: Ext4

  GUI: Android 5.1.1 Lollipop

  4G Function: Supports 4G network and information receiving and sending

  WiFi Function: Supports 802.11b/g/n wireless protocol and WIFI wireless network

  BT Function: Supports Bluedroid Bluetooth protocol stack and Bluetooth data communication

  GPS Function: Collection and reception for location data

  G-Sensor: Supports system interface rotation function

  CMOS Function: Image preview, photograph and video functions

  Network Interface Modules Drive: Kilomega wired Ethernet

  HDMI Display Drive: Supports HDMI audio and video output

 AUDIO Drive: Audio broadcast

  LCD: Supports 10.1 inch multi-capacitive LCD, supports backlight adjustment function

 TOUCH: Supports capacitive multi-touch drive

 USB HOST: Supports USB mouse,USB keypad and U disk reading

 USB OTG: Supports ADB and MTP

 Keypad: Supports 4 GPIO keypads

SD/MMC: Supports read-write operation of 32GB high-capacity SD card storage

RTC: Supports real-time clock

UART Serial Communication Drive: Supporting debugging serial and communication serial functions

 MFC codec driver: Supports H.264, MPEG4, H.263, MJPEG formats codec function

  PPM: Supports infrared sending and receiving

  BEEP Buzzer driver: Supports buzzer control function

  LED: Supports LED light control function

  ADC: Supports ADC value read menu

  USB Camera driver: Supports preview and photograph function

   Operation System: Linux3.4

   Linux Kernel: Linux 3.4.39

   System Guidance Procedure: U-boot2014.07

   Serial Debugging Tool: Minicom terminal

   Cross Compilation Tool: arm-eabi-4.8(gcc4.8)

   File System Format: Ext4

   GUI: QT5.5

   Video Player: MPlayer

   WiFi Function: Supports 802.11b/g/n wireless protocol and WIFI wireless network

   Network Interface Modules Drive: Kilomega wired Ethernet

   AUDIO Drive: Audio broadcast

   LCD: Supports 10.1 inch multi-capacitive LCD

   TOUCH: Supports capacitive drive

   USB HOST: Supports USB mouse,USB keypad and U disk reading

   Keypad: Supports 4 GPIO keypads

   SD/MMC: Supports read-write operation of 32GB high-capacity SD card storage

   TC: Supports real-time clock

   UART Serial Communication Drive: Supporting debugging serial and communication serial functions

   BEEP Buzzer driver: Supports buzzer control function

   LED: Supports LED light control function

   ADC: Supports ADC value read menu

   USB Camera driver: Supports preview and photograph function

   Operation System: Ubuntu12.04

   Linux Kernel: Linux 3.4.39

   System Guidance Procedure: U-boot2014.07

   Serial Debugging Tool: Minicom terminal

   Cross Compilation Tool: arm-eabi-4.8(gcc4.8)

   File System Format: Ext4

   GUI: Ubuntu12.04

   Video Player: Movie Player

   Music Player: Rhythmbox

   WiFi Function: Supports 802.11b/g/n wireless protocol and WIFI wireless network

   Network Interface Modules Drive: Kilomega wired Ethernet

   AUDIO Drive: Audio broadcast

   LCD: Supports 10.1 inch multi-capacitive LCD

   TOUCH: Supports capacitive drive

   USB HOST: Supports USB mouse,USB keypad and U disk reading

   Keypad: Supports 4 GPIO keypads

   SD/MMC: Supports read-write operation of 32GB high-capacity SD card storage

   RTC: Supports real-time clock

   UART Serial Communication Drive: Supporting debugging serial and communication serial functions

   USB Camera driver: Supports preview and photograph function
