Turbine Oil Vacuum Dehydration Plant, Turbine Oil Purification Machine & Vacuum Cleaner

FOB Price: 6,000.00 - 9,000.00 USD/Set
Supply Ability: 10 Cubic Inch(es) per Day
Shipping: BY SEA
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Chongqing in China
Packaging Details: in export wooden case

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE,ISO,SGS
  • Weight: 500KG
  • Dimension(L*W*H): 1.5x1.0x1.8
  • Power(W): 21kw
  • Voltage: 380v OR AS YOUR REQUIRE
  • Usage: Lubricant Oil
  • Model Number: TY
  • Brand Name: ZN
  • Working Pressure: 0.5mpa
  • Flow: 600lph
  • Condition: New
  • color: optional

Specifications

Live working Turbine oil dehydrator,Turbo Oil Purifier,break emulsion, dewatering, removing particles

Application:

It is used for treating the unqualified turbine oil, especially the seriously emulsified turbine oil. Widely applied

to turbine, gas turbine and hydraulic turbine online oil treatment in the power, chemical, papermaking and

Metallurgic industries. this series, which can rapidly and effectively remove the water, gas and impurities

Aiming at turbine oils nature of high water content, easily emulsified and high impurity content, make the oil reach new oil standard.



Features:



1. Special polymer materials as filter medium with the functions of broken emulsion, dewatering, removing particles
2. Duplex-Stereo film evaporation technology, equips with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technology.
4. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
5. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
6. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
7. Work online with stream turbine, hydraulic turbine.



Advantages:
this machine breaks emulsification thoroughly, and the oil is very difficult to be emulsified again after

Treatment. Its dehydration volume is large and it can drain off the water on line. TY series, which prevent

Lubrication system from damage, can effectively extend the lifetime of oil and protect turbine and other

Machines.



Technical specs( It will be changed as customer's requirements)


Item

Unit

TY-10

TY-20

TY-30

TY-50

TY-100

TY-150

TY-200

TY-300

Flow rate

Liters/hour

600

1200

1800

3000

6000

9000

12000

18000

Working Vacuum Degree

MPa

-0.06 ~ -0.095

Working Pressure

MPa

    ≤ 0.3

Temperature Range

40 ~ 70

Water content

PPM

≤80

Impurity content

μm

≤5

Gas content

%

≤0.1 %

Cleanness

NAS

≤6 grade (NAS1638)

Demulsification value

min

≤15 (GB/F 7305)

Power Supply



3 Phase, 50 Hz, 380V (or as per requirement)

Heating power

kW

12

15

18

24

45

60

72

84

Total power

kW

14

17

20

27

48

66

81

97

Inlet/outlet caliber

mm

25

25

25

32

42

50

50

60

Weight

kg

400

450

500

600

700

900

1050

1550

Dimension

Length

mm

1280

1350

1350

1400

1500

1500

1600

1800

Width

mm

750

900

950

950

1000

1200

1350

1400

Height

mm

1450

1450

1500

1600

1650

1800

1800

1850

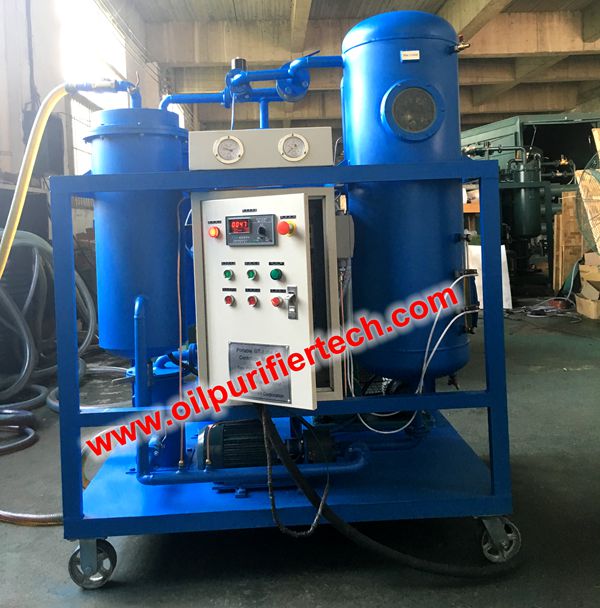

Turbine oil Vacuum dehydration plantturbine oil purification machine and vacuum cleaner

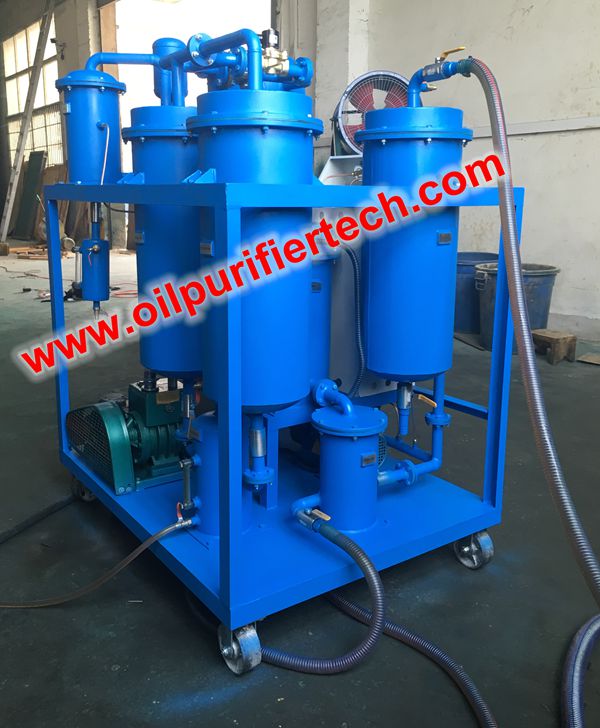

Turbine oil Vacuum dehydration plantturbine oil purification machine and vacuum cleaner
