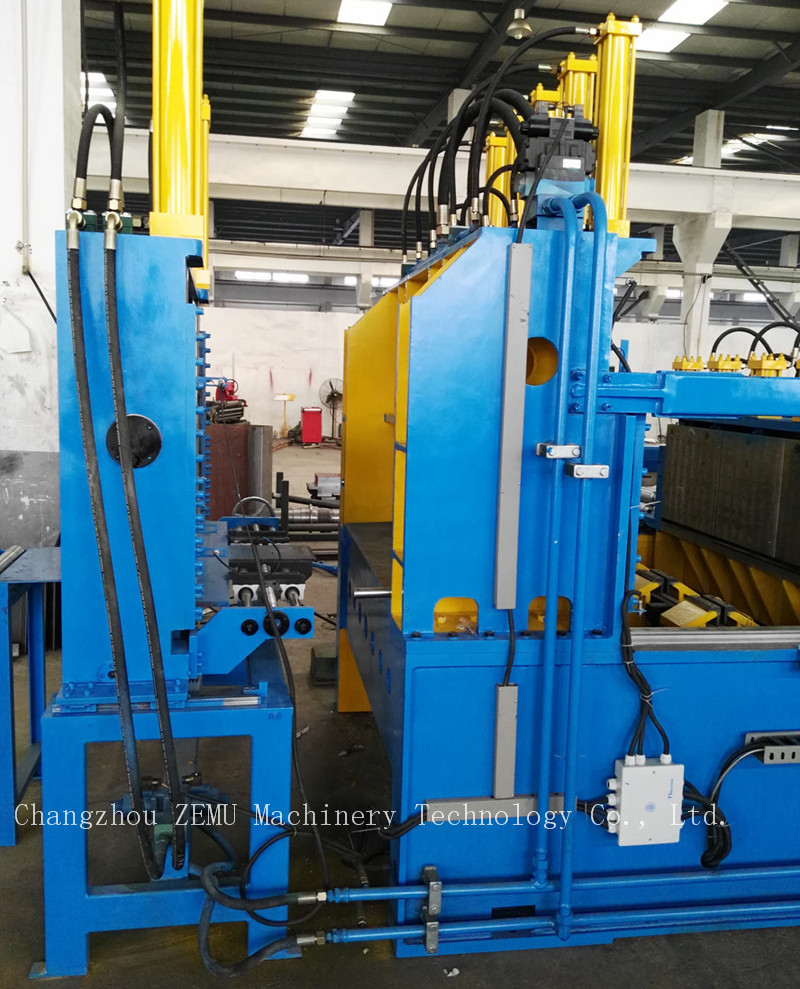

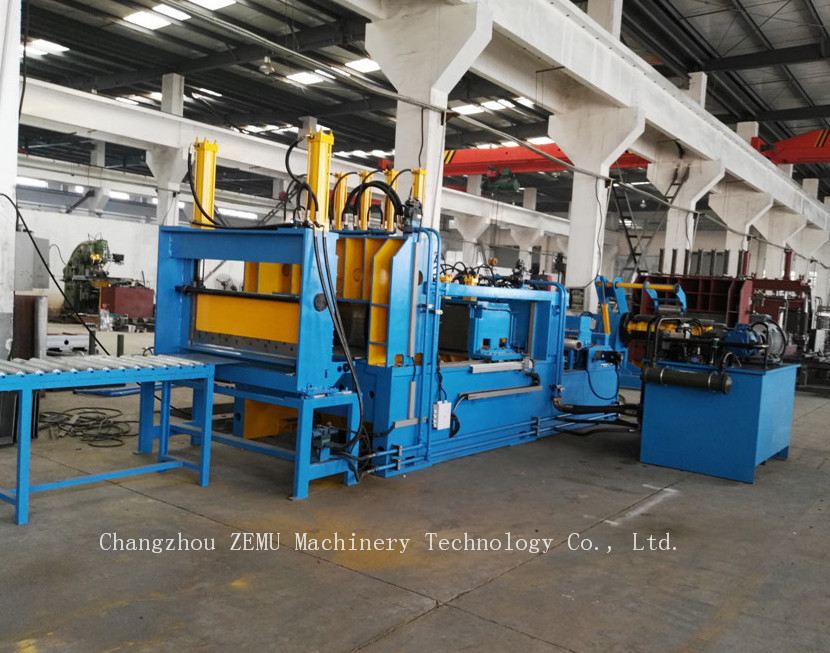

Transformer Cooling Fin Production Line

FOB Price:	50,000.00 - 60,000.00 USD/Set
Supply Ability:	5 Set(s) per Month
Shipping:	by sea
Payment Terms:	T/T

In Stock

Inquiry Now

Product Details

Export Markets:	Southeast Asia, Africa, Mid East
Place of Origin:	Jiangsu in China
Packaging Details:	sea worthy packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Model Number: ZM-879
Brand Name: ZEMU
fin gap: 6mm
fin width: 300-1300mm
fin height: 40-300mm
Bending height: 20mm
Pleast thickness: 1.0-1.75mm

Specifications

1. Description of transformer cooling fin production line

1) Includes materials guidance, feeding, front pack, rear pack, edge folding,
Shearing and parts collection.
2) the hydraulic system is automatic controlled and stable running.

3) Human interface computer dialogue display, reasonable structure and easy in operation, labor saving
(1~2 labors).

4) Perform the process of forming, shearing and edge folding within one time when you input all operation
parameters on computer unit.

2. Parts of transformer cooling fin production line
1) Hydraulic Automatic Decoiler Machine
2) Transformer Tank Fin Forming Machine
3) Hydraulic Transformer Tank Fin Shearing and Bending Machine
4) Automatic Transformer Tank Fin Welding Machine
5) Hydraulic Station
6) PLC Control System

3. Features of transformer cooling fin production line
1) Specially designed for producing and welding transformer radiator fin.
2) PLC control, fully automatic line: automated conveying, clamping and welding.

3) Touch screen control it is easy and convenient to operate.

4) High-speed welding, much faster than manual welding.

    5) Argon arc welding, the welding is close and the surface is very clean and smooth.

4. Parameters of Shaping Machine for Production of Corrugated Tank Fin
  1) Plate width: 300mm-1600mm
    2) Plate thickness: 0.5mm-1.75mm
  3) Corrugation height: 50mm-400mm
    4) Corrugation pitch: >=45mm
    5) Bending height: 20mm
    6) Forming speed: 3-4fins/min
    7) Total power of motors: 40KW
