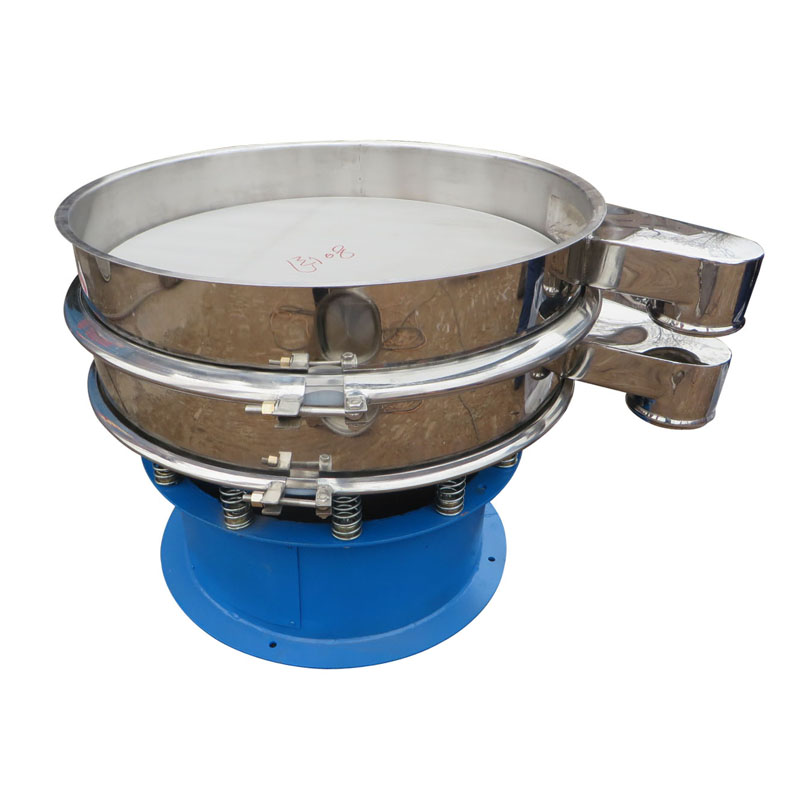

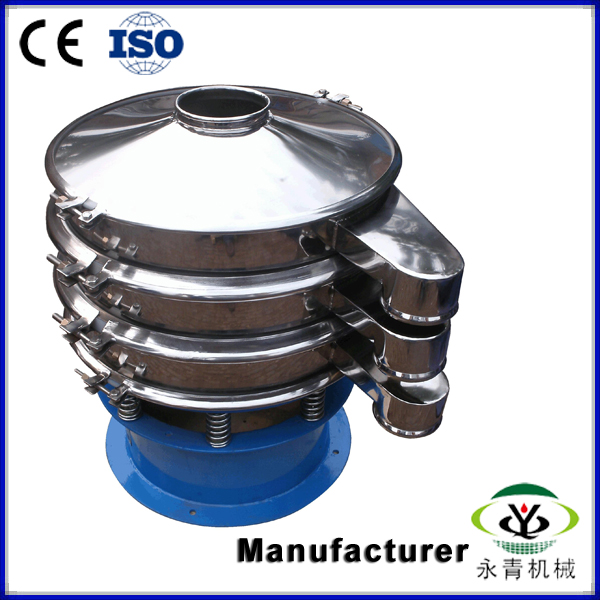

Food Processing Electric Rotary Vibrating Sieve for Spice Powder

Specifications

 Introduction of Vibrating Screen:
 the XZS series rotary vibrating screen is used for materials screening /sieving /sorting /grading /classifying /separating. It is electronic automatic,suitable for screening fine powders and granules,separate materials to different size fractions. Also used for liquid filtering /purifying
this ratory vibrating screen machine can be single deck or multi decks, with different mesh size for each deck (mesh size can be 2-300 mesh).  screen diameter can be 400mm,450mm, 500mm, 600mm,800mm, 1000mm,1200mm,1500mm and 1800mm as per different process capacity requirement.Widely used for food, chemical, mineral industries etc.






Electric Power Supply:
110V--480V available
50hz /60hz
Single phase /three phase

Features of Screen Sieve:
1. Quick release ring, make it fast and easy to replace different mesh screen
2. Suitable for all kinds of powders,particles  and liquids,
3. No block of screen nets, with silicon screen cleaning bouncing ball for fine powders
4. the feeding-out direction can be adjusted freely
5. High efficiency in scren separation and filtering precision,

Working Principle of Vibrating Screen Machine  :
Use a vertical vibrating motor as vibraion source, making processing materials on the screen move centrifugally,and realize high accuracy screening purpose.  by adjusting eccentric blocks' angles of the motor, can easily change the vibrating force, and then change material moving routes.

Application of Vibration Screen:
the sieve shaker machine is suitable for screening powders, particles and liquids.
Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime,, juices, beverages, sugar, salt, monosodium glutamate, spices, sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering


the vibrating motor:
1. Source of vibration force, easy adjusted.
2. Automatic power off protection in case of short circuit, default phase or unstable voltage.
3. 110v-480v voltage available
4.  both single phase and three phase available

Q: how to Select the Suitable Vibratory Screen
A: Please confirm the following information, then we will advice the suitable screening machine for you
 1. What material you are going to screening?
 2. how many  layers you need?
 3. the screen mesh size for each layer you need.
 4. What process capacity you need  ( t/h )?

Model	XZS- 500	XZS- 600	XZS- 800	XZS- 1000	XZS- 1200	XZS- 1500	XZS- 1800	XZS- 2000
Dia (mm)	500	600	800	970	1170	1470	1770	1970
Layer	1-3	1-3	1-3	1-3	1-3	1-2	1-2	1-2
Screen Dia (mm)	430	530	730	900	1100	1400	1700	1900
Screen Mesh (mu/inch)	2-500
Maximum particle size(mm)	<20	<20	<30	<30	<50	<50	<50	<50
Vibration time (times/min)	1440
Power(kw)	0.25- 0.55	0.25- 0.55	0.55- 0.75	0.75- 1.5	1.1- 1.8	1.5- 2.2	2.2	2.2
