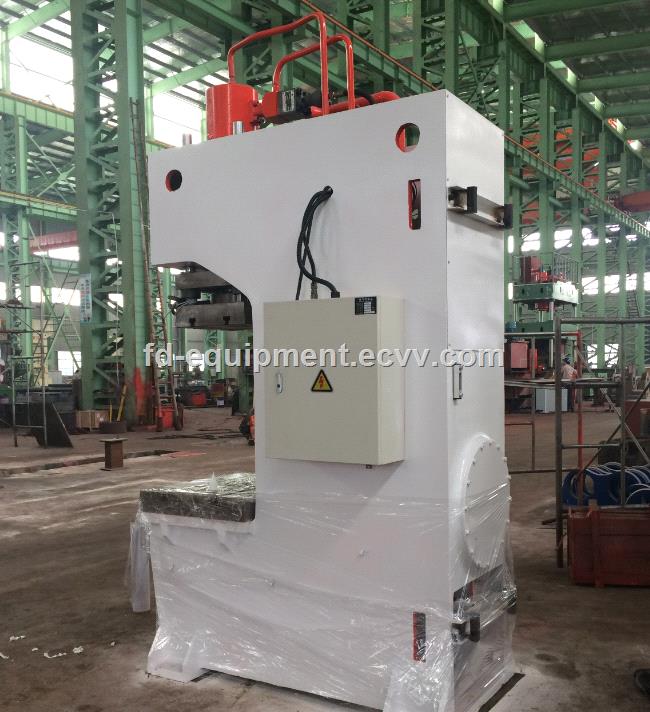

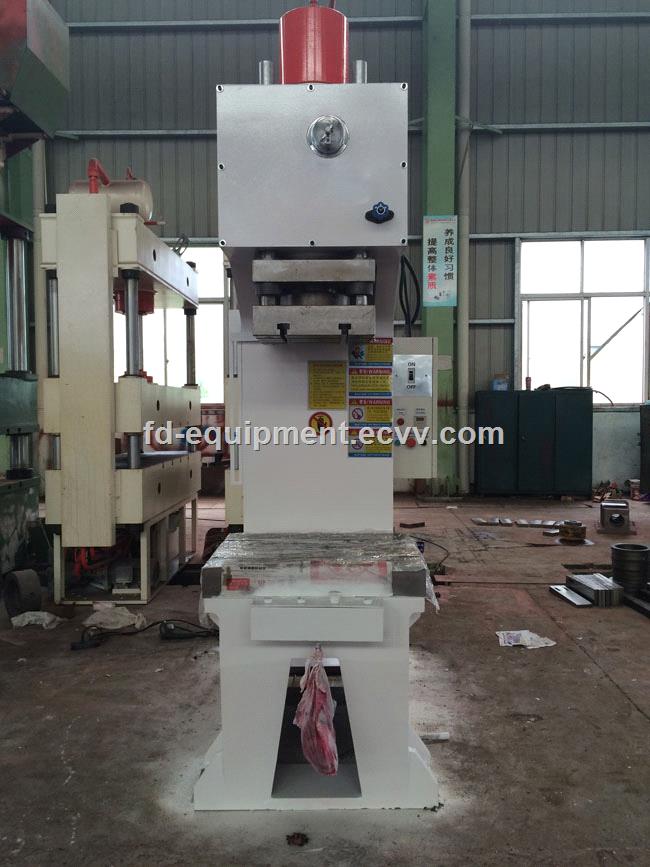

Y41 Series Single-Column Hydraulic Straightening & Mounting Press

 Features of C Frame Hydraulic Press
1. Y41 Series C-Type Hydraulic Press is one of the new generation of plate process and developed by Besco machine Tool Limited..
C-frame design for large operating spaces - suitable for automatic operations forming, punching, bending,straightening and multi-press assemblies to form automatic production line.
2. Totally European design,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
3. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts,slide and bolster tables with T-slots.
4. Uses a variable flow piston pump - offers high pressure resistance, high velocity, durability and low noise.
5. Hydraulic pipe system uses integrated circuits - manifold block fits inside the press to reduce piping and oil leaks, easy to maintain, simple and safe. Hydraulic system is from Bosch,Germany.
6. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
7. Front Side Covers with safety switches, Back light safety guards, Foot pedal conforming to CE regulation.
8. Guiding device: adopts four cylindrical location guiding to make sure of the steady precision, and it's easy to test and maintain.
9.Presses operated with automatic one cycle design; two hand push button design for simple and safe operation. Presses which could realize three-operation mode: adjustment, manual and semi-automatic.
10. PLC press control is flexible and safe. Adjustable proximity switches allows stroke adjustments in seconds.
11. All our electrical, hydraulic and mechanical parts are standard in the industry and available throughout North America and Europe.
12. the Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
13. Dual control you can select to use:
A) Moveable pedestal height for comfort and ease of operation c/w dual electric palm buttons & extra emergency stop.
B) Movable single-hand pedal switch.
14. Optional touch screen terminals offer.
A) Data storage of mould(s) and manufacturing conditions.
B) Reduced mould replacement time and calibration, fabrication requirements.
C) Programmable memory for working conditions, displays pressure, stroke, spend data, etc; one cycle process sequence.
 Work Environment
 Power Requirement:     Three phase four wire, 380V, 50HZ ( as design accepted)
 Installation Field:    Clean, low dust
 Maximum Temperature:40oC
 Minimum Temperature:   -5oC
 Relative Temperature:55—85%

 Height:                less than 1000M

Y41		Unit	Y41-40T	Y41-60T	Y41-80T	Y41-100T	Y41-160T
Nominal Pressure		KN	400	600	800	1000	1600
Max.Pressure		Map	22.2	24.3	25.8	25.8	25.8
Max.Opening Height		mm	600	630	720	800	800
Slide Stroke		mm	400	500	500	500	500
Accuracy Error Range between Tables		mm
Throat depth		mm	320	350	350	350	350
Dimensions of Die Table	F.B.	mm	550	620	650	650	680
	L.R.	mm	700	700	700	800	850
RAM Table Dimensions	F.B.	mm	380	450	450	480	500
	L.R.	mm	500	500	550	600	600
Worktable Height		mm	710	720	730	730	830
Work Table Opening Diameter		mm	100	140	150	150	150
Hydraulic cylinder diameter		mm	150	180	200	250	280
Motor Power		Kw	5.5	7.5	7.5	7.5	7.5
