R. O. Water Treatment/Mineral Water Treatment Plant/Water System

Specifications

Product Features:

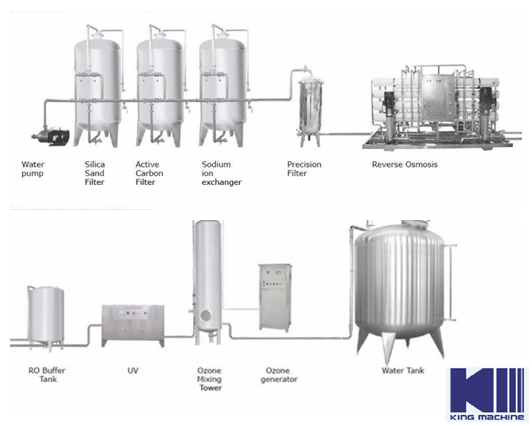

According to the customer requirements and the source water quality, we adopt different equipment to produce pure water, mineral water,etc. the main equipments are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator,water tank,etc. the treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

Components Introduction:

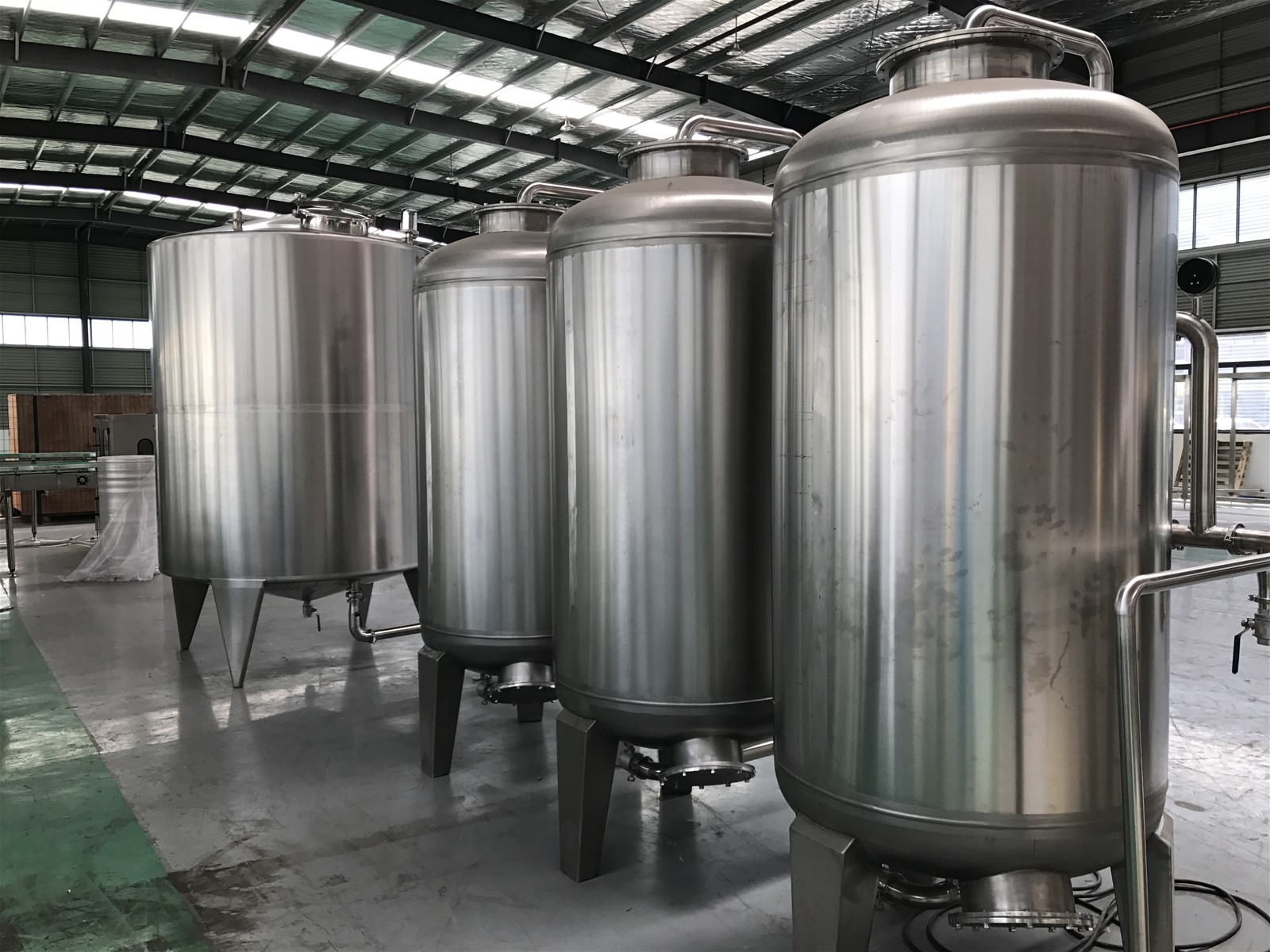

1.Silica sand filter:It can remove the suspended solids and gluten particles in the water,thus reduce turbidity of water. 2.Active carbon filter:It can remove the pigment,smell and a large number of biological organisms in the water. 3.Sodium ion exchanger:It can remove calcium and magnesium ions in the water, so as to sofen the water.

4.Precision filter:It can ensure that granularity of the water into reverse osmosis membrane is less than 0.1um.

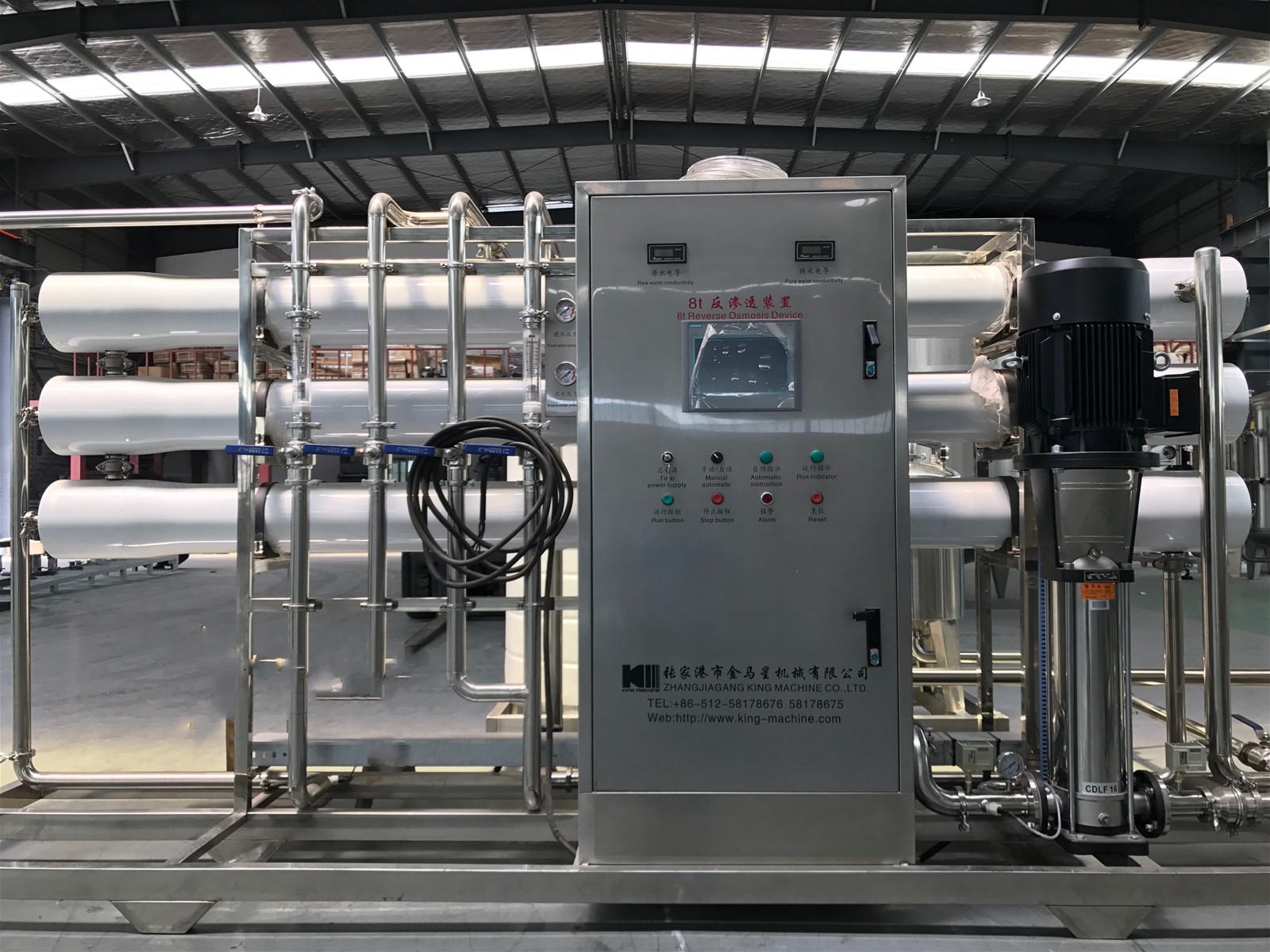

5.Reverse Osmosis:the Reverse Osmosis Device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane.It is called reverse osmosis,as it is counter to natural penetration direction. Different material have different osmosis pressures. the reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid,microorganism,particles and organic materials,becoming the best first-choice equipment in the engineering of modern purified water,highly purified water and space water(super-purified water).the most highlighted features are low energy consumption,no pollution,simple technique,high-quality water and convenient operation and maintenance. 6.UV sterilizer:It uses the UV to kill some bacteria that may also pass through the reverse osmosis system. 7.Ozone sterilizer:Some bacteria may not be killed by the UV,the sterilizer uses ozone to kill those bacteria.

8.Hollow-fibre Ultrafilter(alternative):this ultrafilter adopts dissymmetriacal semipermeable film which is made from macromolecule material with special process.the raw liquid flows under pressure,inside or lut side the film.the macromolecule substance and colloid particles in the raw liquid are clogged at the film surface and are brought away by circulating raw liquid.Then the raw liquid becomes inspissated,furthermore,the substance in liquid is separated,concentrated.

Company Profile

Zhangjiagang King Machine Co. Ltd,is a direct manufacturer and exporter specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.

Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.

King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. and we are looking forward to the future cooperation with you if our products can impress you deeply.

 Our service

Installation service

When you finish the Preparation conditions,our fast and professional sale-after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

the sample service

1. We can send you the video of the running machine.

2. You are welcome to come to visit our factory,and see the machine running.

Customized service

1.We can design the machines according your requirements(materiaL,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

after-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2.When you finish the Preparation conditions,our fast and professional sale-after service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4.We provide one year warranty

5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 .24 hours for engineer response

7 .12 Months guarantee and life-long technical support.

8.Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you geT any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is  good,and ensure the machine running smoothly.
