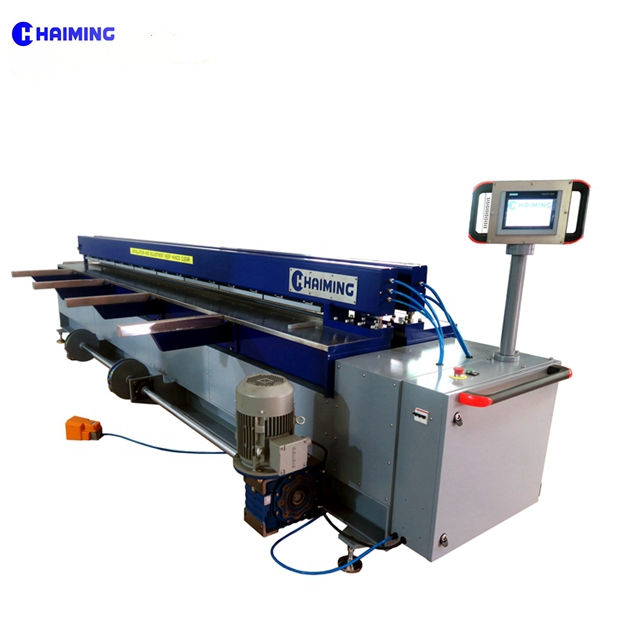

China Guangzhou Haiming PP PE PVDF Polyethylene Welder Machine
| Supply Ability: | 1 Set(s) per Month |
|---|---|
| Shipping: | exw |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Sea worthy Simple package or according to customer's requirment for high frequency straight. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Usage: welding plastic sheet
- Weight: 2800kg
- Voltage: 380v
- Brand Name: Haiming
- Dimensions: 4300x1900x1100 mm
- Welding Area: plastic sheet thickness
- Frequency: 50-60hz
- Power: 12kw
- Model Number: S-PH3000A
- Processing Type: Plastic Thermoforming Machine
- Warranty: 1 year
- Certification: CE
- Dimension(L*W*H): 4300x1900x1100 mm
- Power(W): 10kw
- Product Type: Plastic Sheet
- Condition: New
- welding: plastic sheet
Specifications
China Guangzhou haiming PP PE PVDF polyethylene welder machine
Features:
the new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
Suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF)
Control system Siemens PLC, 7-inch color touch screen.
Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
3mm-40mm welding capabilities, special welding thickness of up to 60mm.
Range of Application
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics
Technical Data
Model |
S-PH3000A |
S-PH4000A |
S-PH6000A |
Machine Length( mm) |
4300 |
5300 |
7500 |
Machine Width (mm) |
1900 |
1900 |
1900 |
Machine Height (mm) |
1100 |
1150 |
1200 |
Total Weight (kg) |
2800 |
3600 |
5950 |
Welding Material thickness(mm) |
3-40 |
3-40 |
3-40 |
Length of Welding materials(mm) |
3025 |
4025 |
6025 |
Minimum Diameter Welded pipe(mm) |
360 |
480 |
480 |
Air pressure |
8,0 bar |
8,0 bar |
8,0 bar |
Power supply(V) |
380 |
380 |
380 |
Heating element power(KW) |
3.5 |
4.5 |
3.5X2(Stepwise heating) |
Reel Motor power(KW) |
2.2 |
2.2 |
3 |
Heating element (Teflon coated T Max = 260 C) |
3200mmX20mmX50mm |
3400mmX20mmX50mm |
6200mmX20mmX50mm |
Welding materials |
PP PE PVDF... |
PP PE PVDF... |
PP PE PVDF... |
Welding Area lighting |
LED |
LED |
LED |
Optional(can add) |
|
|
|
Automatic Circular System |
* |
* |
* |
90 vertical Welding system |
* |
* |
* |
Our service:
1. Warranty for 12 months.
2. We accept OEM & ODM.
3. in some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply service
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
the only use of advanced technology from Germany
the only electrical integration automated system
the only design
the only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade. and our factory have many skilful peration of workers and the stability of the scale of production. and we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.after-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of tim
