Single-Head Hydraulic Pipe Bender

FOB Price:	15,000.00 - 20,000.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

SPECIFICATIONS:
Introduced trades:

Automobile fittings(break fuel pipe,bumper,muffler,seat)motorcycle,shipbuilding,boiler,power plant,train,fitness equipments,air condition,bicycle,steel furniture,bathroom equipment.

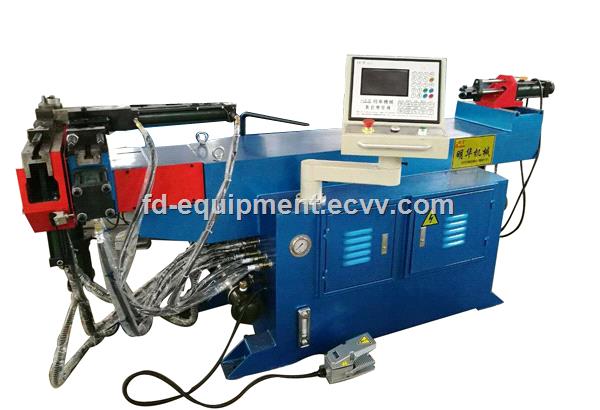

DW130NC high-speed single-head hydraulic bending machine, the use of NC control, multi-group program, multi-angle setting,

so your simple side.

Key Specifications	unit	Models: DW130NC	Notes
Maximum bending diameter × wall thickness	mm	Φ130 × 8	1. Minimum bending radius according to pipe diameter 2. Maximum bending radius according to customer requirements 3. Maximum core length of wear based on customer requirements
Maximum bending radius	mm	R520
Minimum bend radius	mm	R90
Maximum bending angle	Degree	190
Standard straight-length	mm	4500
Control system		Microcomputer control
Elbow pipe to allow the number of	Unit	16
Parts store a few	Unit	16 × 16
Hydraulic motor power	KW	22
System pressure	Mpa	14
Hydraulic system control		Solenoid valve
Tank capacity	L	400
Overall size	mm	5700x1600x1300
Machine weight	Kg	8000
