Qingdao North Torch Machine Tool Co., Ltd.
China Manufacturer with main products: CNC Lathe Machine, CNC Facing Lathe, Heavy Duty Horizontal Lathe, CNC Floor Type Lathe Machine, Conventional Lathe Machine, CNC Turning and... |
Home
>Products Catalog > Conventional Lathe Machine > China Professional Full Metal Shield CNC Lathe for Machining Aluminum Wheel(CK61125)

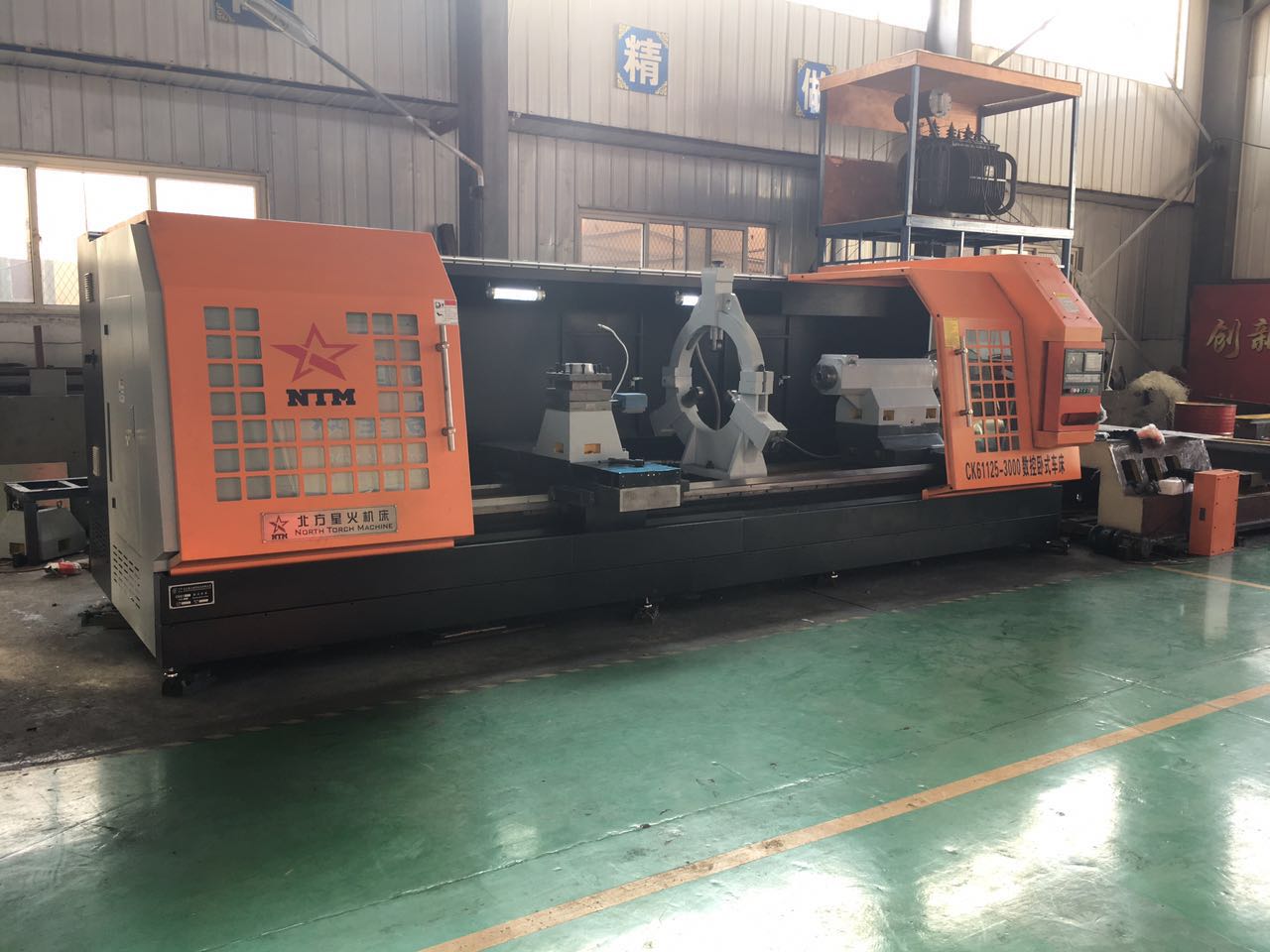

China Professional Full Metal Shield CNC Lathe for Machining Aluminum Wheel(CK61125)
| FOB Price: | 1.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set(s) per Year |
| Shipping: | By Ocean |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Wooden Boxes Package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE, BV,ISO9001
- Weight: Customized
- Dimension(L*W*H): Per the design
- Voltage: 380V/480V per local request
- Model Number: CK61125
- Brand Name: NTM
- Max. Swing Diameter: 1250 mm
- Automatic Grade: Automatic
- CNC or Not: CNC
- Type: Horizontal
- Condition: New
- Max.Swing Diameter over Bed: 1250 mm
- Max.Swing Diameter Over Carriage: 850 mm
- Max.Length of Work-piece: 500-1000 mm
- Max.Weight of Work-piece: 5T
Specifications
China Economic Professional Large CNC Lathe
for Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
for Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 20 years, if you have special request and demands, please feel free to contact us.
Application: the base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. this machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parameters
| Name | CK61100 | CK61125 | CK61160 | CK61200 | CK61250 | |
| Description | Unit | |||||
| Max. Swing over bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 |
| Max. Swing over the skateboard | mm | 600 | 800 | 1200 | 1500 | 1800 |
| Max. Weight of Work-piece | T | 1 | 1 | 2 | 2 | 3 |
| Max. Length of Work-piece | mm | 700 | 700 | 700 | 700 | 700 |
| Gears of Spindle Speed | / | Infinitely Variable Speed/step-less speed | ||||
| Range of Spindle Speed | R/Min | 10-300 | 10-200 | 10-160 | 10-160 | 4-80 |
| Chuck Diameter | mm | 800 | 1000 | 1250 | 1600 | 2000 |
| Bearing Diameter of Main Front Shaft | mm | 190 | 190 | 220 | 220 | 300 |
| X,Z X,Z-Axis Feed Range | Mm/Min | 0-3000 | ||||
| Horizontal Stroke | mm | 500 | 650 | 800 | 1000 | 1250 |
| Longitudinal Stroke | mm | 700 | 700 | 700 | 700 | 700 |
| Main Driving Motor | Kw | Variable Frequency 11Kw-4 | Variable Frequency 15Kw-4 | Variable Frequency 22Kw-4 | Variable Frequency 30Kw-4 | Variable Frequenc |
3. after -sale Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. in case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. the company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. the company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
for more details, please feel free to contact us. Thanks!
