PVC WPC Hollow Door Board Making Machine

FOB Price:	130,000.00 - 140,000.00 USD/Set
Supply Ability:	50 Set(s) per Year
Shipping:	60days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Precast concrete light weight wall panel machin...

Price:50,000.00 USD/Unit

Min. Order:1 Unit
EPS/XPS/Rock Wool Sandwich Panel Machine (ESFH-...

Price:

Min. Order:
Automatic Paper Edge Board and Flat Board Produ...

Price:30,000.00-35,000.00 USD/Set

Min. Order:1 Set
Welded steel wire rod mesh panel making machine...

Price:2,000.00-70,000.00 USD/Set

Min. Order:1 Set
Gypsum Board Production Line /equipment/machine

Price:

Min. Order:
PVC Wood Plastic Cabinet Panel Production Line

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	wooden box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Power(W): 110KW
Brand Name: Tongsan
Application: Plates
Condition: New
Certification: ISO CE SGS
Weight: 15Tons
Dimension(L*W*H): 25m*5m*3m
Voltage: customized
Model Number: SJSZ80/156
Automatic Grade: automatic
Screw Design: Double-screw
Plastic Processed: WPC
Name: WPC door board door frame machine

Specifications

1. Introduction of WPC PVC hollow door board extrusion machine

Plastic WPC Door Extrusion making Machine is adopted specially designed conical twin screws extruder. It adopts imported ABB or SIEMENS speed frequency converters. It chooses imported RKC and OMRON temperature controller. It possesses the features of easy and reliable operation.

Whatsapp
86
183
6623
6672

2.Consist of the PVC WPC hollow door board extruder machine

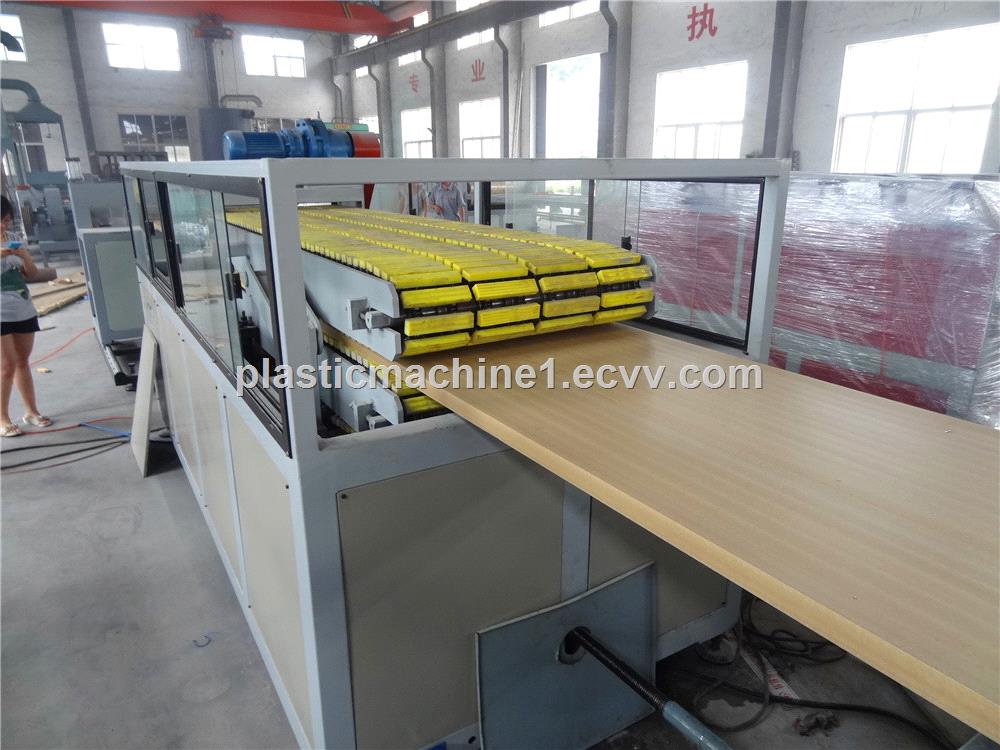

PVC WPC hollow door board making machine

the WPC PVC door board production line consists of conical twin screw extruder, moulds for door boards, forming moulds, calibrating cooling stage, caterpillar haul-off, transverse cutter and tilt stacker.

Connical twin screw extruder

Mould

Calibrating Table

Haul off machine

Cutting Machine

Stacker

PVC WPC hollow door board making machine

3. Application and fuction of the PVC WPC hollow door board
It can be used either inner and outer door board, partition, window sill etc, or PVC and PVC+ wood extruding foaming craft. The final products produced by PVC WPC Wood Plastic Door Plate Extrusion Production Line centralizes the characters of plastic and wood. It not only has special appearance effect, but also overcomes the shortage of wood. It has good processability as wood, and the proportion can be controlled in 0.6-0.9kg/m3.

It can be sawed, drilled, and planed by the wood working tools. the WPC materials and products have features on resistance against heavy acid bases, water-proofing, corrosion resisting, anti-moth, anti-aging, static-free and flame retarded.

4.Main Technical Parameters of the PVC WPC hollow door board machine

SPECIFICATIONS
Extruder	Extruder model	Conical twin	SJSZ-80/156
	Extrusion capacity	Spiral auto-feeder	400kg/hour
	Extrusion speed	Base on setting	0.5-1.5m/hour
Electrical control	PLC control system	SIEMENS S-700	10.4'' digital diagnose
	DC speed regular	Connector	Temperature meter
	EUROTHERM	SIEMENS	OMRON
General information	Machine weight	12tons	2 40' containers
	Machine overall dimension	25m3m3m	LWH
	Total install-power	150kw	380V 50Hz or other area requests
