P9 SMD Outdoor LED Display Screen with Front Service EMC Certificated
| FOB Price: | 1.00 - 1,500.00 USD/Square Meter |
|---|---|
| Supply Ability: | 1,000 Square Meter(s) per Month |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton with inner foam protection. 4 cabinets per carton, 83x41x47cm, 33.5kg/carton. Flight case package for rental projects, 5 cabinets per case, 77x43x45cm. |
Quick Details
- Screen Dimension: 360 x 720mm
- Pixels: 9mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Outdoor
- Model Number: S-PH9FO
- Cabinet case: aluminum
- Matrix configuration: 40 x 80 pixels
- Resolution: 12345 pixels/sqm
- Brightness: 6500 nits/sqm
- Installation access: front access / back access
- Viewing angle: 140 horizontal / 120 veritical
- Greyscale: 65536
- Power consumption: 208W/cabinet
- Net weight: 7.5kg/pc
- Waterproof level: IP66
Specifications

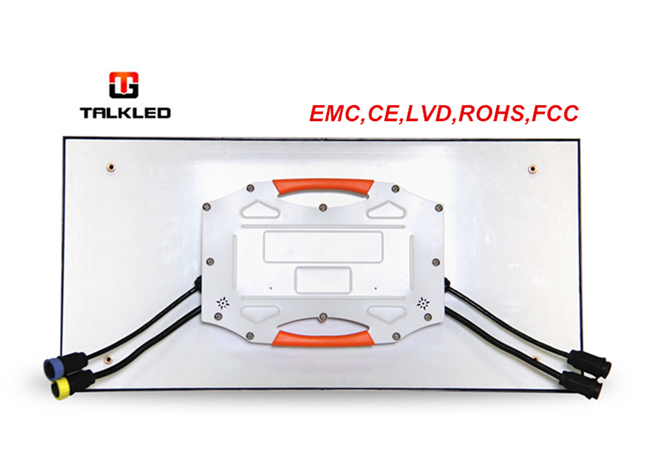

P9 Outdoor LED Display Screen with aluminum cabinet 360x720mm.
Supplying both fixed installation and rental type cabinet.
SMD 2727, brightness 6500nits/sqm.

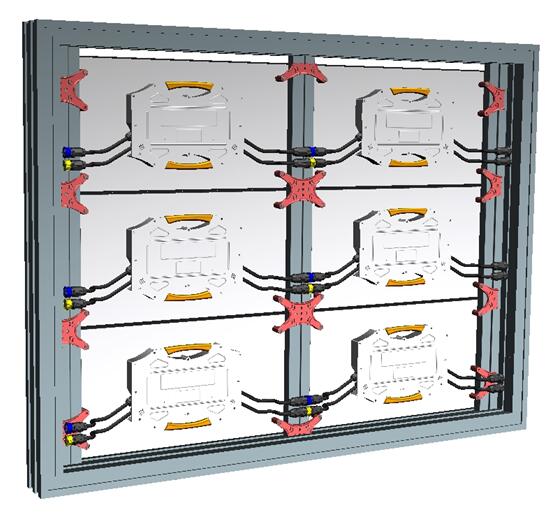

Easy front service and back service installation.
Features:
Thin light aluminum cabinet 360x720mm.
Front service available.
High brightness LEDs, High refresh rate MBI IC driver with PWM.
4-layers thick PCB board, more durable.
IP66 waterproof, ok to work underwater.
Special perfect ventillation without fan inside cabinet.
High quality slim power supply.
Easy installation and maintenance.
Technical details:
| Parameters / Product Model | S-PH9FO |
| Working Environment | Outdoor |
| Pixel Pitch (mm) | 9mm |
| Pixel Configuration | SMD2727 |
| Pixel Matrix per panel | 40×80 |
| Panel Dimensions (HXW) (mm) | 360×720mm |
| Panel Material | Aluminum |
| Panel IP Rating (Front and Rear) | IP66/IP66 |
| Panel Weight (kgs/PC) | 7.5kg |
| Panel Thickness | 60mm |
| Panel Installation type | Fixed |
| Installation Access | Front Access / Back Access |
| Color Grayscale (Bit) | 16 |
| Gray Scale per Color (level) | 65536 |
| Refresh Rate (Hz) | 2880Hz |
| Driving Type | 1/4 scan |
| Monitoring and Detection | Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc |
| Signal Transmission Distance (m) | CAT5 Cable: <100 m; Single mode Fiber: <10 km |
| Brightness (CD/㎡) | 6500 |
| Calibration | Brightness Calibration and Chromatic Calibration |
| Optimal Horizontal Viewing Angle (°) | 140 |
| Optimal Vertical Viewing Angle (°) | 120 |
| AC Input Voltage (V) | 90~240V |
| AC Input Frequency (Hz) | 50/60Hz |
| MAX power Consumption (W/Panel) | 208W |
| Average power Consumptio (W/Panel) | 63W |
| Storage Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Operating Temperature (℃) | ﹣40 ℃~﹢60℃ |
| Storage Humidity (RH) | 10%~95% |
| Operating Humidity (RH) | 10%~95% |
| Lifetime Typical Value (hrs) | 100000 |
Package:
Carton with inner foam protection.
4 cabinets per carton, 83x41x47cm, 33.5kg/carton.
Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.
