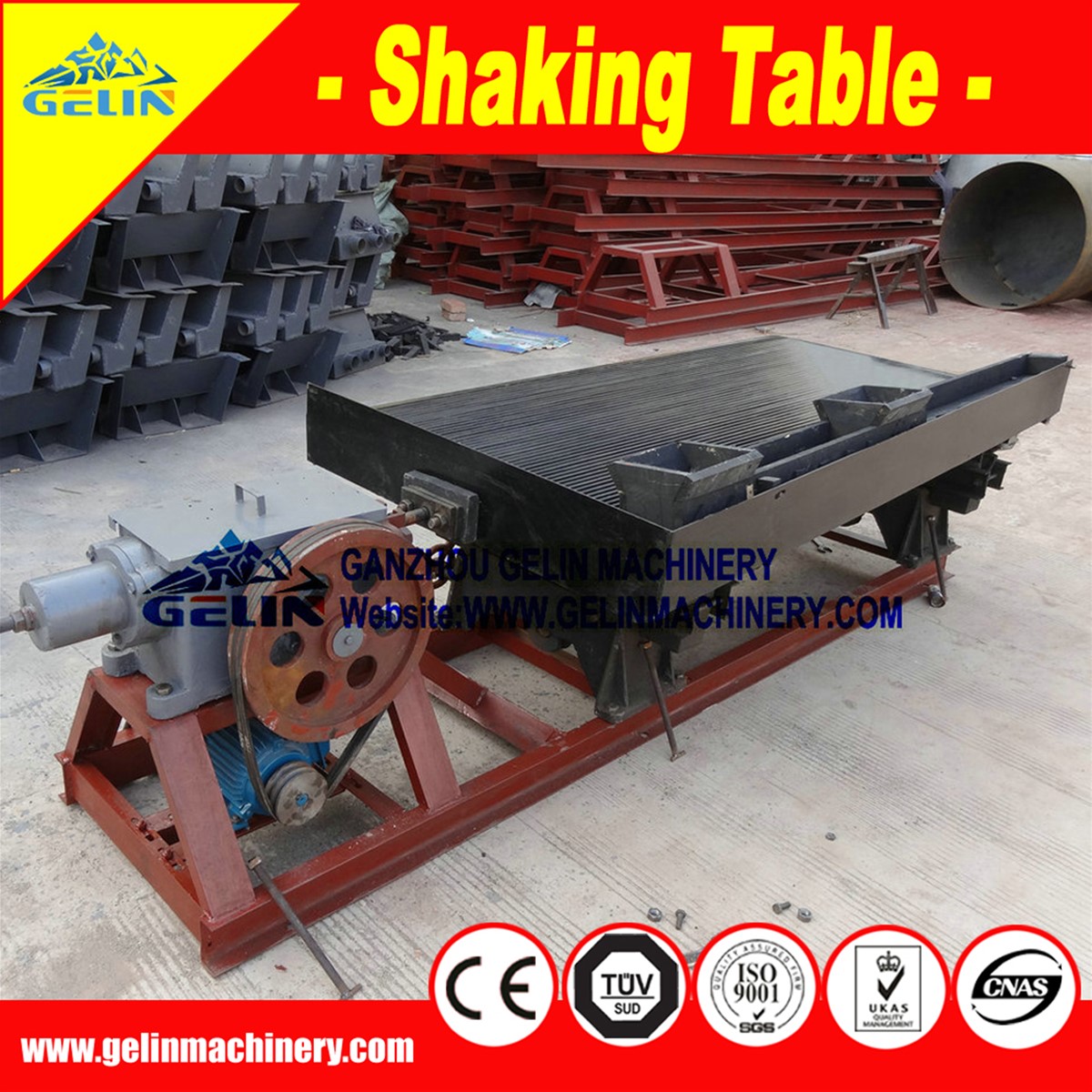

Gravity 6S Gold Shaking Table
| FOB Price: | 1,300.00 - 1,800.00 USD/Set |
|---|---|
| Supply Ability: | 1,300 Set(s) per Month |
| Shipping: | Xiamen |
| Payment Terms: | L/C, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangxi in China |
| Packaging Details: | Nude/ Exported standard packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: 6S
- Brand Name: Gelin
- Max. feeding size: 2mm
- Capacity: 0.1-1.5tph
- Power: 1.1kw
- Material: Steel, Fiberglass
- Warranty: 1 year
Specifications
Gravity 6S Gold Shaking Table
1.Brief Introduction:
GELIN Shaker Table is one of the main equipments of gravity concentration.
It is widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. the shaker effective recycling granularity scope is 2-0.22 millimeters.
2.Techincal parameters:
Model
6S-7.6
6S-4.08
6S-1.95
6S-0.5 Deck Type
Coarse ore deck
Fine sand deck
Slime deck
---
---
--- Benification Area (m2)
7.6
7.6
7.6
4.08
1.95
0.5 Deck Dimension (mm)
Length
4450
4450
4450
3000
2100
1100 Transmission end width
1855
1855
1855
1320
1050
500 Concentrate end width
1546
1546
1546
1100
850
430 Max. Feeding size (mm)
Sand
2
0.5
<2
<2
<2 Slime
0.15
<0.1
<0.074
<0.074 Feeding Amount ( T/H )
0.8-1.5
0.8-1.5
0.8-1.5
0.4-1.5
0.3-0.8
0.05-0.2 Feeding Density (％)
25-30
20-25
15-25
10-30
10-30
10-30 Stroke (mm)
16-22
11-16
8-16
6-30
12-28
9-17 Frequency (F)
45-220
53-250
60-280
210-320
250-450
280-460 Water Added ( T/H)
1-3
1-3
1-3
0.4-2
0.2-1
0.1-0.5 Transverse slope of deck
2°30-4°30
1°30-3°30
1-2°
0-10°
0-8°
0-10° Longitudinal slope of deck
1.4
0.92
---
---
---
--- Cross-section shape of deck
Rectangular
Saw-tooth
Triangle
---
---
--- Motor Power ( Kw)
1.1
0.55 Transmission mechanism
Eccentric linkage
3.Performance features:
1. High recovery ratio & high concentration ratio
2. Easy installation and simple operation
3. Deck constructured of fiber glass
4. Seven different decks to choose
5. Long working life & adjustable stroke length and speed
4.WOrking Principle:
the working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
5.Production Application:
Gold refining Shaking Table as one of gravity mining equipment, 6S shaking table is widely applied on separating Gold, Manganese, Chrome, Lead, Zinc, Mercury, Auluminum and rare metals, the noble metal ore, also applied on sorting coal, ect.6S shaking table can be usedin different stages in mining, like rough concentration, retreat and scanvenging.
Recovery material size ranges are: coarse sand (0.5 mm to 2 mm), fine sand (0.074 mm to 0.5 mm) and slime (-0.074 mm). Effective mineral recovery size range is 0.22 mm to 2 mm.
