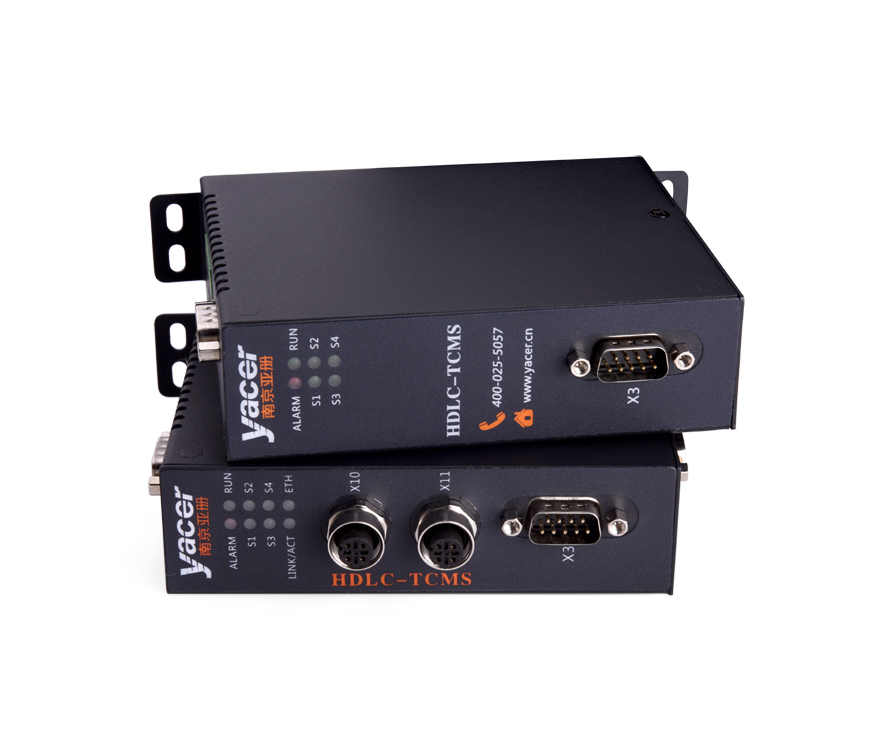

HDLC-TCMS Serial Ethernet Converter RS485 NRZI
| Supply Ability: | 200 Piece(s) per Month |
|---|---|
| Shipping: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: yacer
- Wavelength: 1
- Data Rate: 1
- warranty: 1
- Connector: 1
- Color: others
- Channel: 1
- Distance: 1
- distances: 1
Specifications
the Yacer HDLC-TCMS Protocol converter, provides dualRS-485Synchronous & Asynchronous serial ports and two expansion interfaces, with support for the Conversion between synchronous HDLC and asynchronous UART.Optional dual 100M Ethernet interfaces, to achieve the protocol conversion between the serial Port and the Ethernet interface.
Industrial wide Temperature, complete isolation protection measures, applicable for the train Communication network.
L Conversion between CAN bus and serial port
L Conversion between CAN bus and Ethernet
L Train Control and Monitoring System (TCMS)
L Train Communication Network (TCN)
L Embedded application
L Dual 10/100M Ethernet interfaces, with supportfor the Ethernet switching and dual-IP
L S1, S2: Dual RS-485 synchronous and asynchronous serial ports with isolation
L S3: Optional RS-232, RS-422 or RS-485 serial port for the expansion interface
L S4: Optional RS-422, RS-485 Serial port or CAN bus for the expansion interface
L All serial ports support the synchronous HDLC protocol & Asynchronous UART
L NRZI, DBPL, Manchester and differential Manchester encoding Formats
L Complete isolation protection measures
L Industrial wide Temperature
RS-485 Interfaces S1, S2 | |
Connector |
1 x male D-Sub 9 (X20) + 1 x female D-Sub 9 (X21) |
Interface type |
RS-485 Half-duplex serial port with isolation |
Working Mode |
Synchronous HDLC, Asynchronous UART |
Encoding Format |
NRZI, Manchester, Differential Manchester, DBPL(Differential Bi-Phase Level) |
Baud rate |
Synchronous10 Mbps Asynchronous3 Mbps |
Isolation protection |
2.5 kVrms |
Expansion Interface S3 | |
Connector |
1 x male D-Sub9 (X3) |
Optional Interface type (One out of Three) |
RS-232 Full-duplex serial port RS-422 Full-duplex serial port with isolation RS-485 half-duplex serial port with isolation |
Working Mode |
Synchronous HDLC, Asynchronous UART |
Encoding Format |
NRZI, DBPL, Manchester, differential Manchester |
Baud rate |
Synchronous10 Mbps Asynchronous3 Mbps |
Isolation Protection |
2.5 kVrms |
Expansion Interface S4 | |
Connector |
1 x male D-Sub9 (X4) |
Optional Interface type (One out of Three) |
CAN bus Isolation interface (CAN 2.0A, CAN2.0B, ISO 11898) RS-422 Full-duplex serial port with isolation RS-485 Half-duplex serial port with isolation |
Working Mode |
Synchronous HDLC, Asynchronous UART |
Encoding Format |
NRZI, DBPL, Manchester, differential Manchester |
Baud rate |
Serial Port: Synchronous10 Mbps,Asynchronous3 Mbps CAN: 50 Kbps ~ 1 Mbps |
Isolation Protection |
2.5 kVrms |
Ethernet Interfaces ETH1, ETH2 | |
Connector |
2 x M12 with D-coding |
Function |
Support for the Ethernet switching, VLAN and dual-IP functions |
Rate |
10/100 Mbps,Auto MDI/MDI-X |
Network protocol |
TCP/IP |
Programming interface |
UDP Server, UDP Client |
Isolation Protection |
1.5 kVrms |
Configuration Management | |
Configuration tool |
Yacer-DMSConfiguration Management software |
Configuration Interface |
Ethernet Interface |
Power Requirements | |
Power Supply |
LV: Nominal 24V, range 9 ~ 36 VDC MV: Nominal 36V, 48V, range 18 ~ 75 VDC HV: Nominal 72V, 96V, 110V, range 40 ~ 160 VDC |
Isolation Protection |
> 1.5 KV, support for the anti-reverse protection |
Power consumption |
< 3 W |
Power Interface |
3 pin Connector with 5mm pitch (Phoenix Contact MSTB 2,5 / 3-GF or equivalent) |
Mechanical Characteristics | |
Dimensions |
HxWxD: 124 mm x 36 mm x 104 mm |
Weight |
500g |
Operating Environment | |
Operating temperature |
-40 ~ +75 |
Storage temperature |
-40 ~ +85 |
Operating humidity |
5 ~ 95% RH(no condensation) |
HDLC-TCMS |
- |
4 |
3 |
5 |
- |
LV |
400 series products: Dual 100M Ethernet Dual RS-485 serial ports |
||||||
S3 expansion interface: |
||||||
L Full-duplex RS-232 |
3 |
|||||
L Full-duplex RS-422 |
4 |
|||||
L Half-duplex RS-485 |
5 |
|||||
S4 expansion interface: |
||||||
L Full-duplex RS-422 |
4 |
|||||
L Half-duplex RS-485 |
5 |
|||||
L CAN bus interface |
6 |
|||||
Supply voltage range: |
||||||
L Nominal 24 V, range 9 ~ 36VDC |
LV | |||||
L Nominal 36V, 48V, range 18 ~ 75VDC |
MV | |||||
L Nominal 72V, 96V, 110V, range 40 ~ 160VDC |
HV | |||||
