| Video |
| System |
Hisilicon high-performance DSP |
| Sensor |
High sensitivity CMOS Sensor, 1/4'' 1.0MP, 1/3'' 1.3MP, 1/2.8'' 2.0MP |
| Output resolution |
1280(H)×720(V), 1280(H)×960(V), 1920(H)×1080(V) |
| D/N Mode |
Auto switching,black and white video and IR cut action linkage |
| Illumination |
Color 1.0Lux F1.2,Black 0.1 Lux@ F1.2 |
| Video processing |
H.264 video compression, dual streaming |
| AVI format, 0.1M~6Mpbs adjustable; |
| Video Output |
Main streaming:1280×720, 1280×960, 1920×1080 |
| Sub streaming;960×540,640×360,480×270,352×288,320×240,352×192, |
| Frame rate |
1MP 25/30 frame(full real time),support 1~30frame/seconds adjustable |
| Network interface |

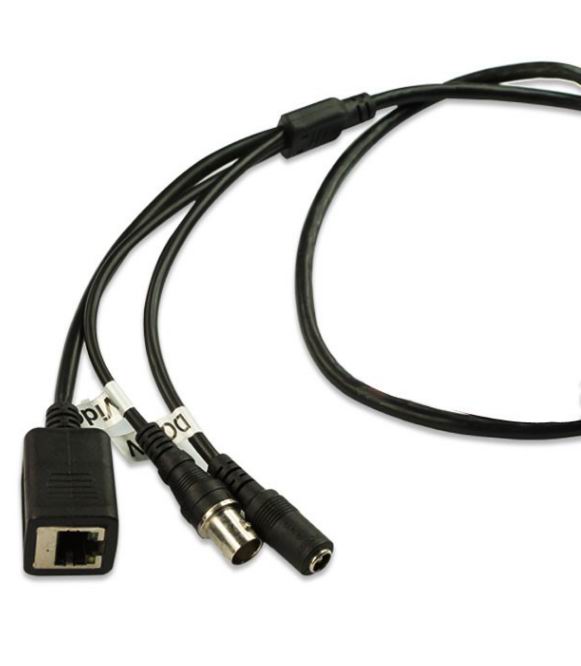

RJ45 ethernet,10/100M;RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP protocol supported |
| Access Protocol |
Standard ONVIF Protocol, Support third party access; PC; |
| Support IE6.0 and aboveSmartphone |
| Support AndroidiPhone |
| Lens |
| Lens |
Optional 3.6/6/8mm Megapixels lens |
| LEDs |
12pcs* IR LEDs |
| IR distance |
8-10m |
| Function |
| Function |
Support WEB configuration, OSD,real-time video transmission |
| Support motion detection |
| Support front end storage,playback and download |
| Support uniform client and platform system application |
| Support complete SDK for second development. |
| Normal |
| Power supply |
DC12V/POE(optional) |
| Operation temperature |
-10°C~+60°C,10%~90%RH |
| Dimension |
120*62mm |
| Weight |
300g |
