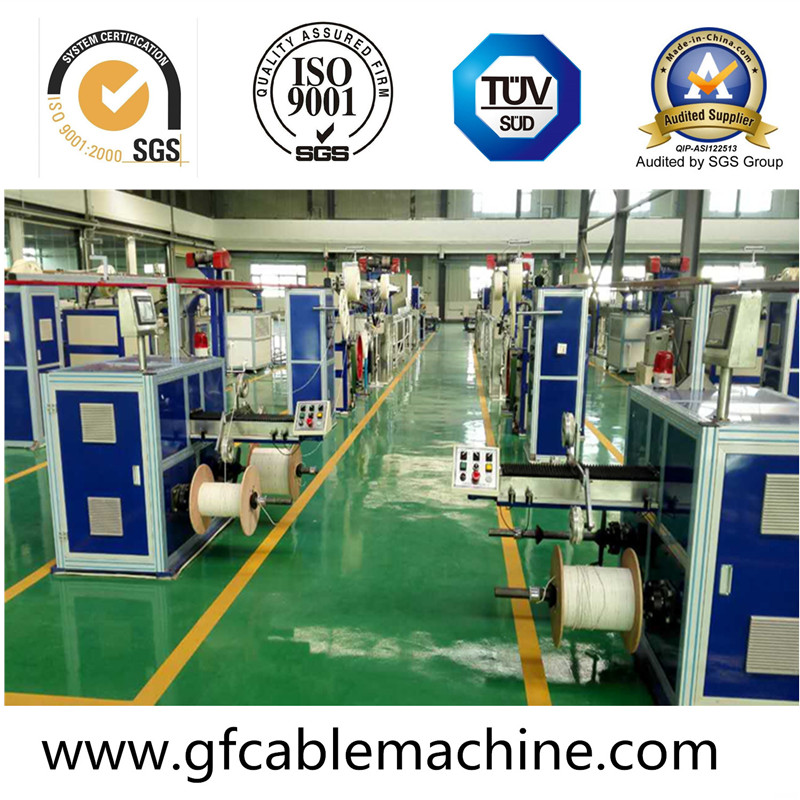

50mm Soft Optical Fiber Cable Sheath Production Line-Optical Cable Equipment
| FOB Price: | 10,000.00 - 100,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set(s) per Month |
| Shipping: | shenzhen |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Plastic Film+Wooden Package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Brand Name: FBK
- Weight: 500 KG
- color: sky blue
- Payment Term: T/T, L/C
- Structure Speed: Max.150m/Min
- Service: Technical Support, Training
- Motor: Siemens
- System: PLC+Ipc Control
Specifications
1,machine application:

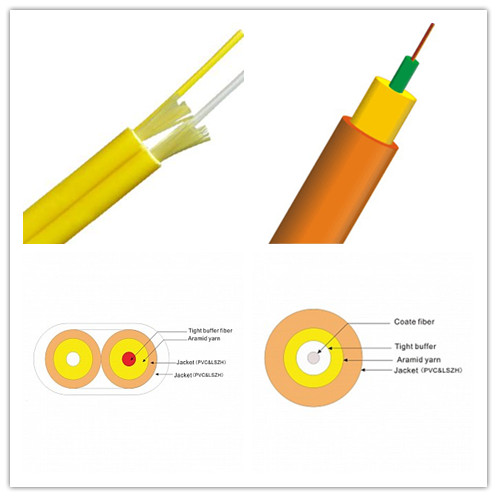

Soft optical cable extruder mainly applied in processing tight fiber into optical fiber cord.
2,?50*26D Technical parameters:
| Tight fiber diameter | ?0.9mm |
| Optical fiber cord diameter | MAX.?6.0mm |
| Structure speed | 300m/min |
| Production speed | 100m/min |
| Tight fiber reel size | ?400mm |
| Pay-off tension of tight fiber | 1N-3N(adjustable) |
| Stranding pitch | 80-400mm |
| Heads No of Aramid yarn | 10 heads |
| Pay-off tension of aramid yarn | 3N-10N |
| Take-up tension | 5N-20N(adjustable ) |
| Take-up reel size | ?630mm-1000mm |
3,?65*26D Technical parameters:
| Tight fiber diameter | ?0.9mm |
| Optical fiber cord diameter | MAX.?7.5mm |
| Structure speed | 300m/min |
| Production speed | 100m/min |
| Tight fiber reel size | ?400mm |
| Pay-off tension of tight fiber | 1N-3N(adjustable) |
| Stranding pitch | 80-400mm |
| Heads No of Aramid yarn | 10 heads |
| Pay-off tension of aramid yarn | 3N-10N |
| Take-up tension | 5N-20N(adjustable ) |
| Take-up reel size | ?630mm-1000mm |
Motor: Siemens (china) Motor
Transducer: American Emerson transducer
Temperature controller: Omron Brand PID Smart type
Man-Machine interface: 10.2 inch color
PLC and Control Module: Siemens
Screw and Barrel: Produced by jinhu Company.
Bearing: Japan NSK or other same quality brand
Low voltage electrical parts: Adopts SIEMENS, OMRON, SCHNEIDER brands,etc.
