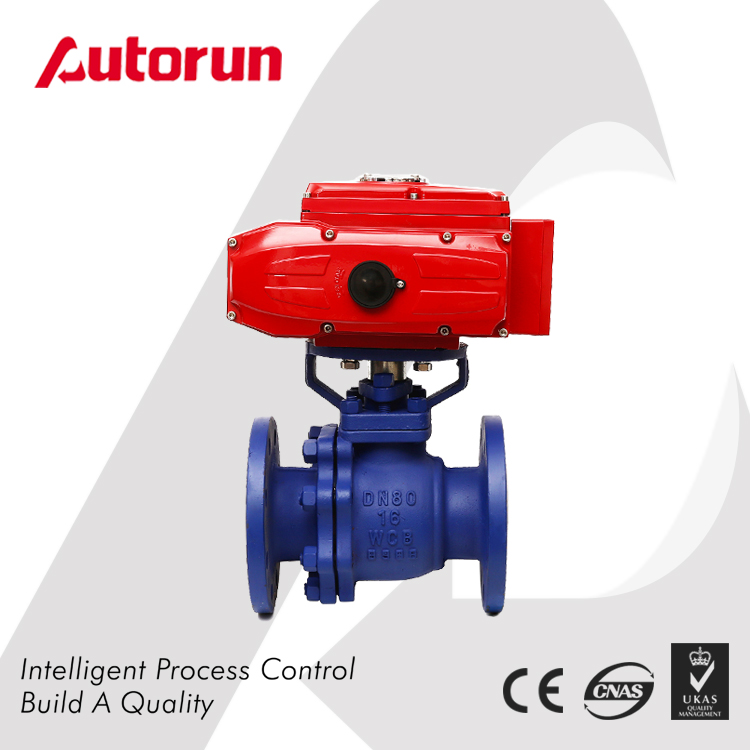

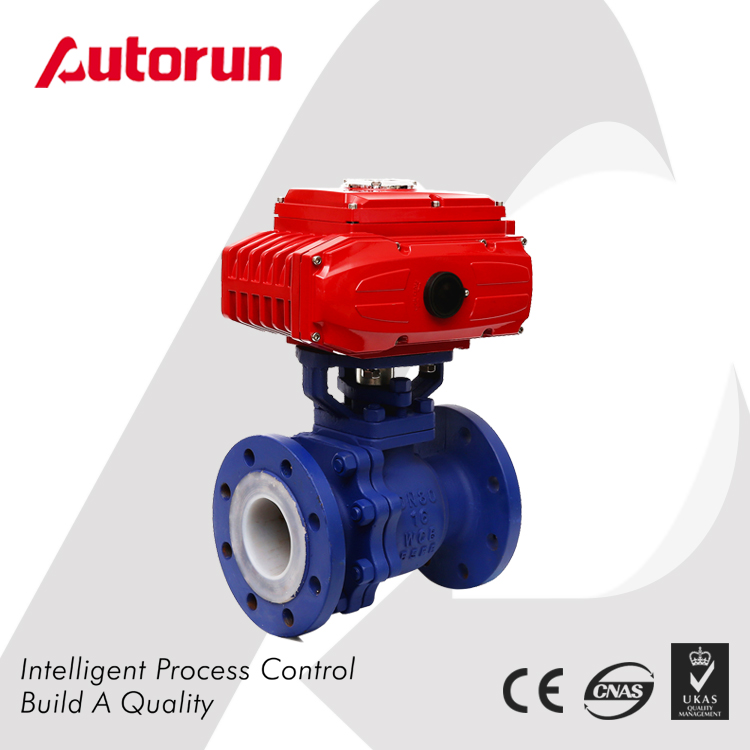

PTFE SEATED ELECTRIC FLANGED BALL VALVE

FOB Price: 110.00 - 250.00 USD/Set
Supply Ability: 10,000 Set(s) per Month
Shipping: Generally 7 days for stock items, otherwise 20-30 days.
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Packaging Details: Carton or Wooden case

Quick Details

  • Brand Name: Autorun
  • Temperature of Media: Medium Temperature
  • Material: Casting
  • Pressure: Medium Pressure
  • Standard or Nonstandard: Standard
  • Model Number: ODL/OHQ series
  • Port Size: 1/2"-4"
  • Media: Acid
  • Power: Solenoid
  • Structure: Ball

Specifications

PTFE SEATED ELECTRIC FLANGED BALL VALVE PRODUCT DETAILSDescription:
Model: Q941F46-16
Q: Ball valve
9: Electric actuator operated
4: Flanged end
1: Floating ball structure
F46: Fluorine lined seat
16: Nominal pressure max. 16 bar
Body Material: WCB, Stainless steel
Nominal size: DN15 - DN400 mm

Driving device: Electric actuator (modulating type)
Torque range: 7 - 2000N.M
Rotary angle: 0 - 90°; 0 - 270°
Ambient temperature: -30°C ~ +60°C
Working pressure: 0 - 4.0MPa
Open/close time: 7 - 100S
Number of wires: 2 - 7
Actuator body: Aluminum alloy
Protection class: IP67, IP68
Power supply: 24VDC, 110VAC, 220VAC, 380VAC; 50/60Hz
Control signal (for modulating type): 4-20mA or 0-10V DC

Technical data
Standard available: GB, ANSI
Connection: Flange
Structure: Floating ball
Nominal diameter(mm): DN15 - DN400
PN(MPa): 1.0, 1.6, 2.5, 4.0, 6.4MPa): 1.0, 1.6, 2.5, 4.0, 6.4
Applicable medium: Water, Petroleum, Nitric acid, Acetic acid, Viscous fluid, Sizing, Strong oxidizing medium, etc.
Medium temperature: -40°C ~ +180°C; -40°C ~ +350°C
Ball rotary angle: 90°
Valve body material: A105, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni9Ti, CF8, CF8M, CF3M
Seat material: Fluorine lined, PTFE(normal temperature), Special PPL(high temperature), Metal seal(high temperature)
PTFE SEATED ELECTRIC FLANGED BALL VALVEPTFE SEATED ELECTRIC FLANGED BALL VALVEPTFE SEATED ELECTRIC FLANGED BALL VALVEPTFE SEATED ELECTRIC FLANGED BALL VALVEPTFE SEATED ELECTRIC FLANGED BALL VALVEPTFE SEATED ELECTRIC FLANGED BALL VALVE
