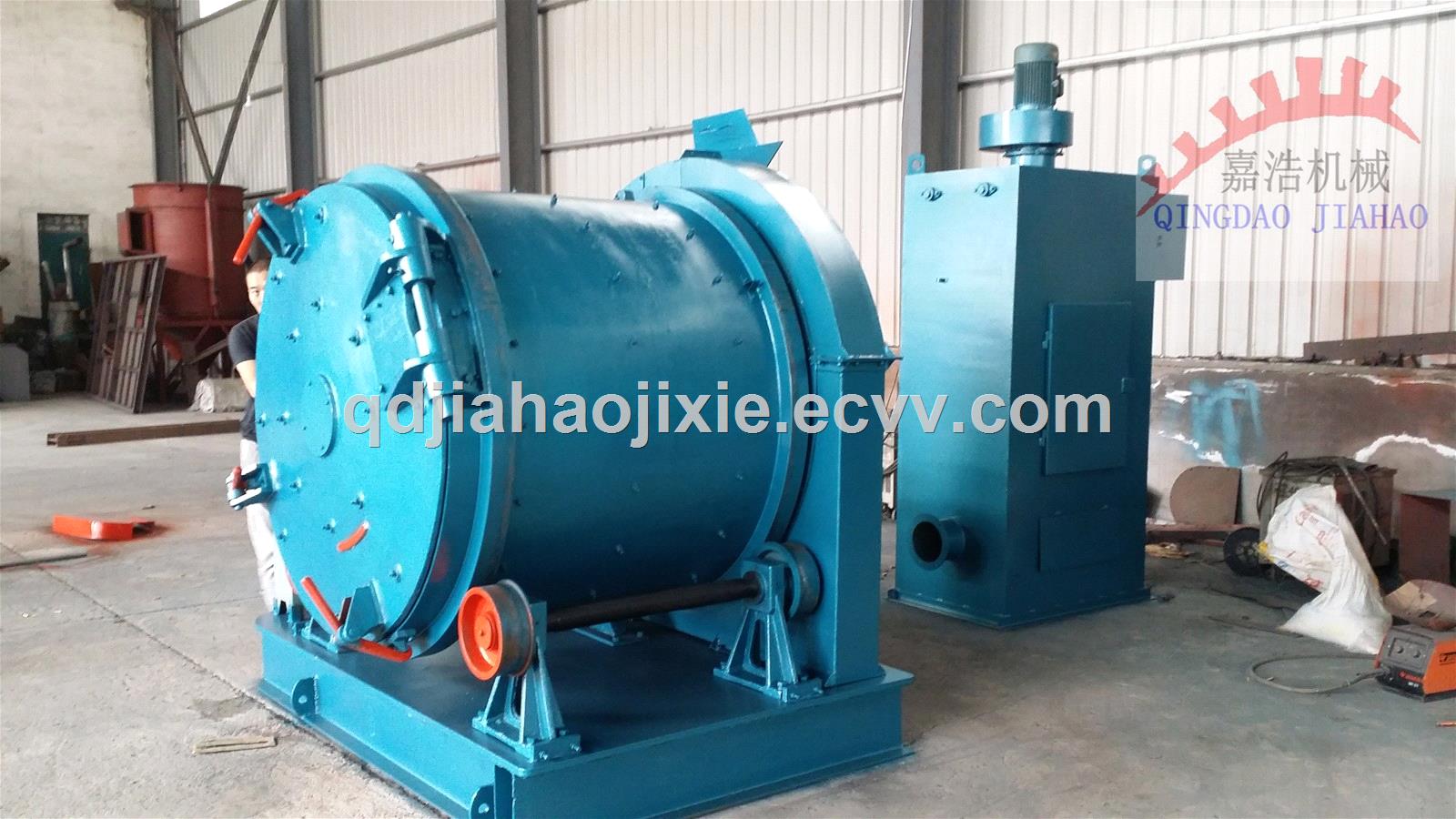

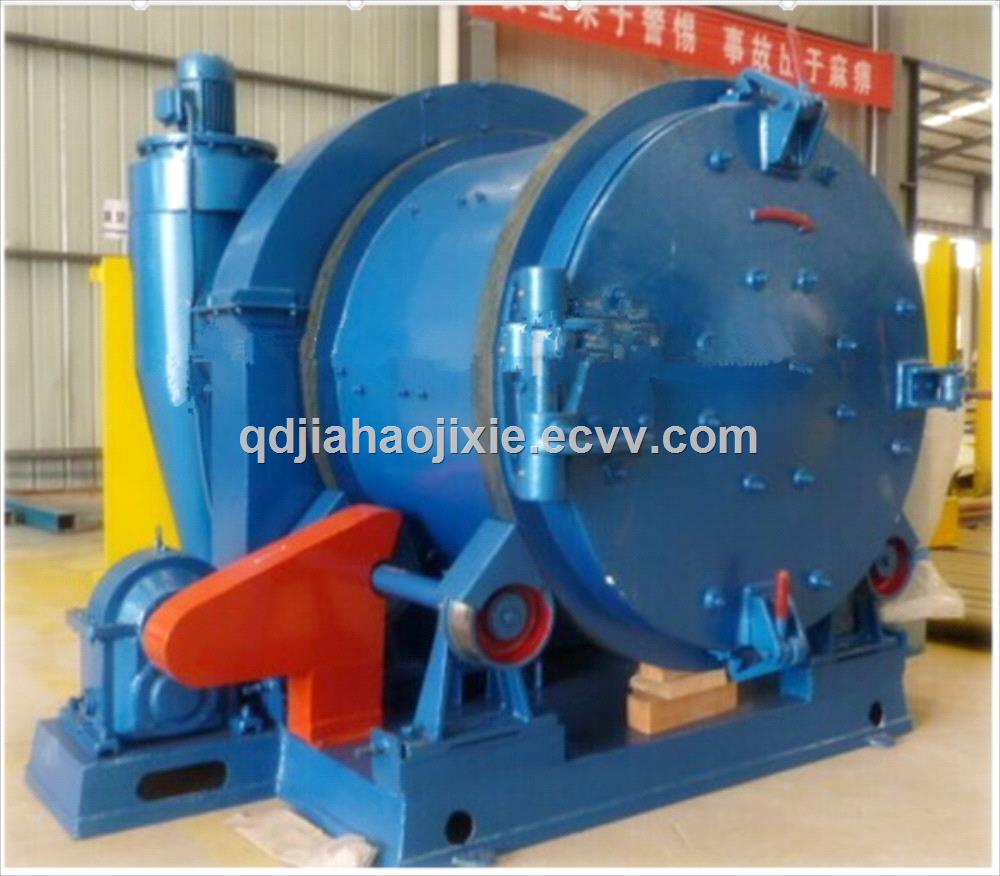

Control Easily Sand Blaster Q3110 Drum Type Shot Blasting Machine

FOB Price: 9,000.00 - 10,000.00 USD/Set
Supply Ability: 100 Set(s) per Quarter

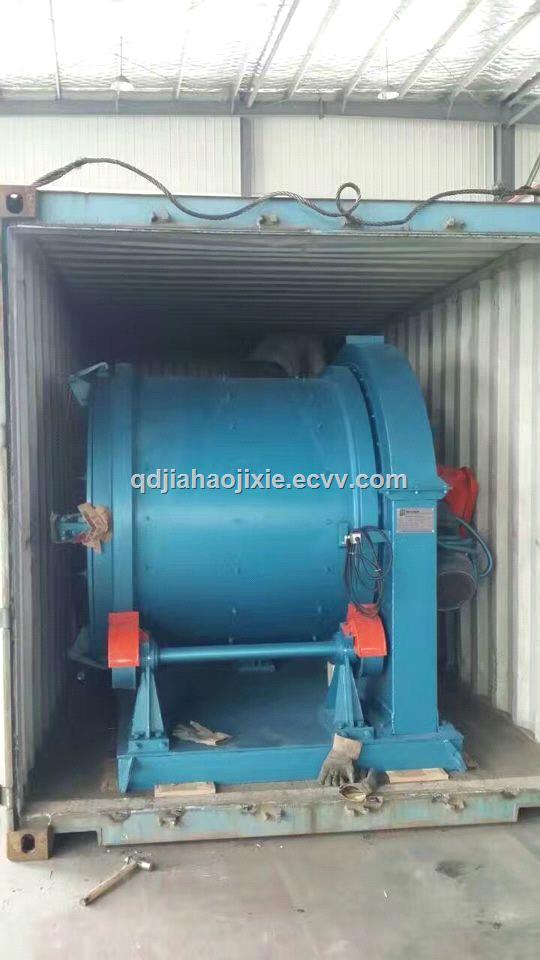

Shipping: 40'HQ standrad container; FOB OR CIF PRICEING
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: PLY WOOD CASE Packing size:2550*2341*2250MM

Quick Details

  • Machine Type: Abrator
  • Use: Burnishing,Container / Bottle Cleaning,Deflashing,Descaling / Stripping
  • Certification: CE,RoHS
  • Feature: Critical Cleaning / Residue Free,Non-Ionic,Rust / Corrosion Inhibitor,Sudsing / Foaming
  • Brand Name: JIAHAO
  • Machine Type: Drum Type Shot Blasting Machine
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Dimension(L*W*H): 2550*2341*2250MM
  • Power(W): 15000
  • Material: Metal / Coil
  • Industry Used: Shipyard, Machinery building
  • Cleaning Type: Clean-In-Place (CIP)
  • Cleaning Process: Steel shot,Abrasive
  • Fuel: Electric
  • Model Number: Q698, Q6912, Q6915, Q6920
  • Condition: New
  • Product name: Rotary Drum Shot Blasting Machine
  • Function: Rust and heat scale removal
  • Max Capacity: 1.2 cbm/4000 kg
  • Barrel Diameter: 1000-2000MM
  • Efficiency: 10-20 min/barrel
  • Blast chamber: High Chrome, ZGMn13

Specifications

Drum type shot blasting machine belongs to small shot blasting machine.

Drum type shot blasting machine belongs to small shot blasting machine.
this king drum type shot blasting machine with smooth rotation in work time, so that parts of the cylinder gently rolling, uniform shot blasting, remove the surface rust, sticky sand, dirt, but also can improve the workpiece internal stress and improve the surface quality of the workpiece and anti- Fatigue strength.

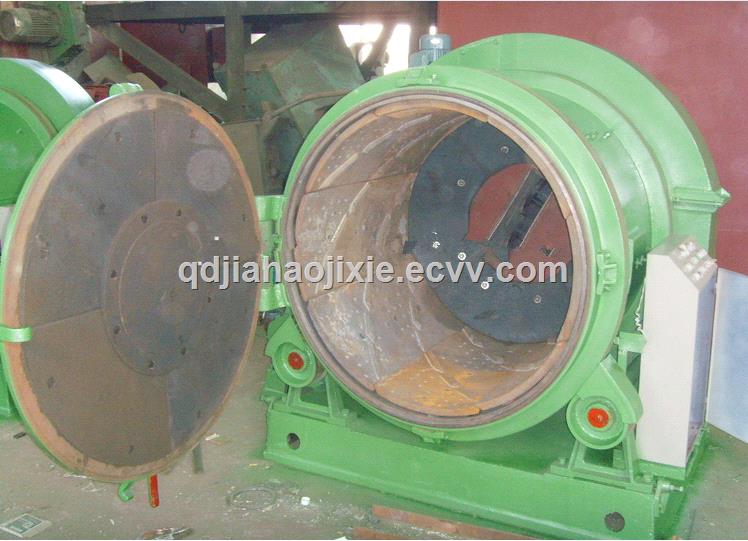

Drum-type shot blasting machine cylinder made of cast iron, the internal bolts with a protective plate, the plate has a grid hole and the spiral of the guide ribs, in order to turn the workpiece in the work. There is also a spiral belt for recovering the projectile between the guard and the drum shell. The whole roller system is supported on two pairs of reels of the frame, and the roller is driven at low speed by the reducer motor driven by chain and sprocket. As the drum speed is low, the casting of the bruises, edges and corners of the wear are less occur, and because of the role of the projectile reflection, to clean up the more complex shape of the castings and forgings. The end cover is located at one end of the drum, so the loading and unloading is convenient, and it is convenient to replace the guard and maintenance work.

how to Work?

Put the cleaning workpiece into the barrel and close the end-cover, adjust the cleaning time. Firstly, move the semi-nut needle to the desired position and the start the machine in turn. after the barrel rotating, the helical ribs on the protecting board tumble the castings continuously to make each surface cleaned evenly. through the hole, the abrasive flows into the middle-wall, then through the screw belt conveying to the box-shaped frame via elevator carrying to the top of the separator. Screw such big core-sand and burrs,etc. The small sand, dust and abrasive are carried away by the airflow. The integrity shot flows into the blast wheel for continuous usage.



Technical Parameters:
Item
Unit
Q3110BI
Q3110BII
Rolling drum diameter
mm
1000
1000
Loading capacity
Kg
300
300
Power
Kw
9.7
11.9
Max. Weight of workpiece
Kg
15
15
Dust efficiency
%
85
99
Outline dimension
mm
2078*2458*1861
3870*2458*3370

We are QINGDAO JIAHAO MACHINERY CO., LTD.  Located in the machinery Manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 Years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers Such as: Mechanical foundry equipment:Resin sand mixing machine, clay sand mixing machine, environmental Dust collector,the shot Blasting equipment is covered:Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, Oil pipeline casting etc);
