>Products Catalog > Holykell 4800E Electromagentic Flowmeter, Magnetic Water Flow Meter Price Waste Water Flow Meter

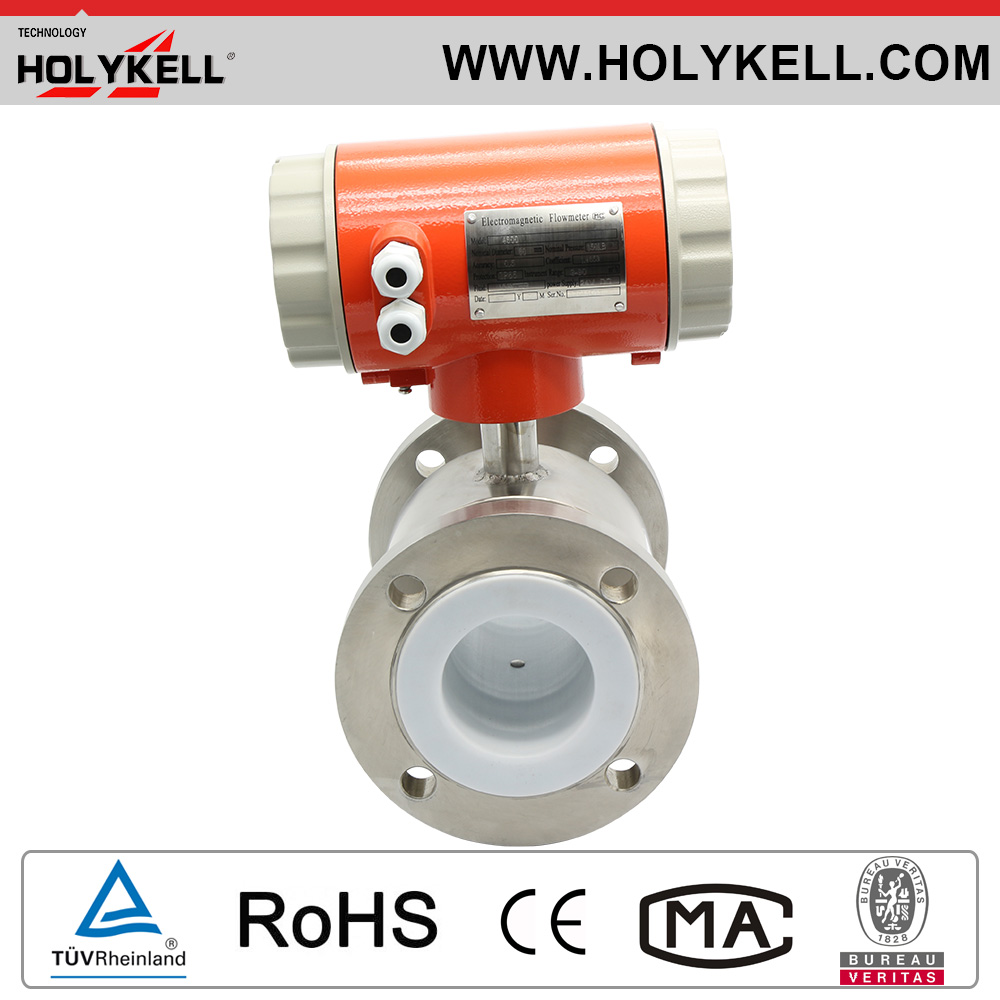

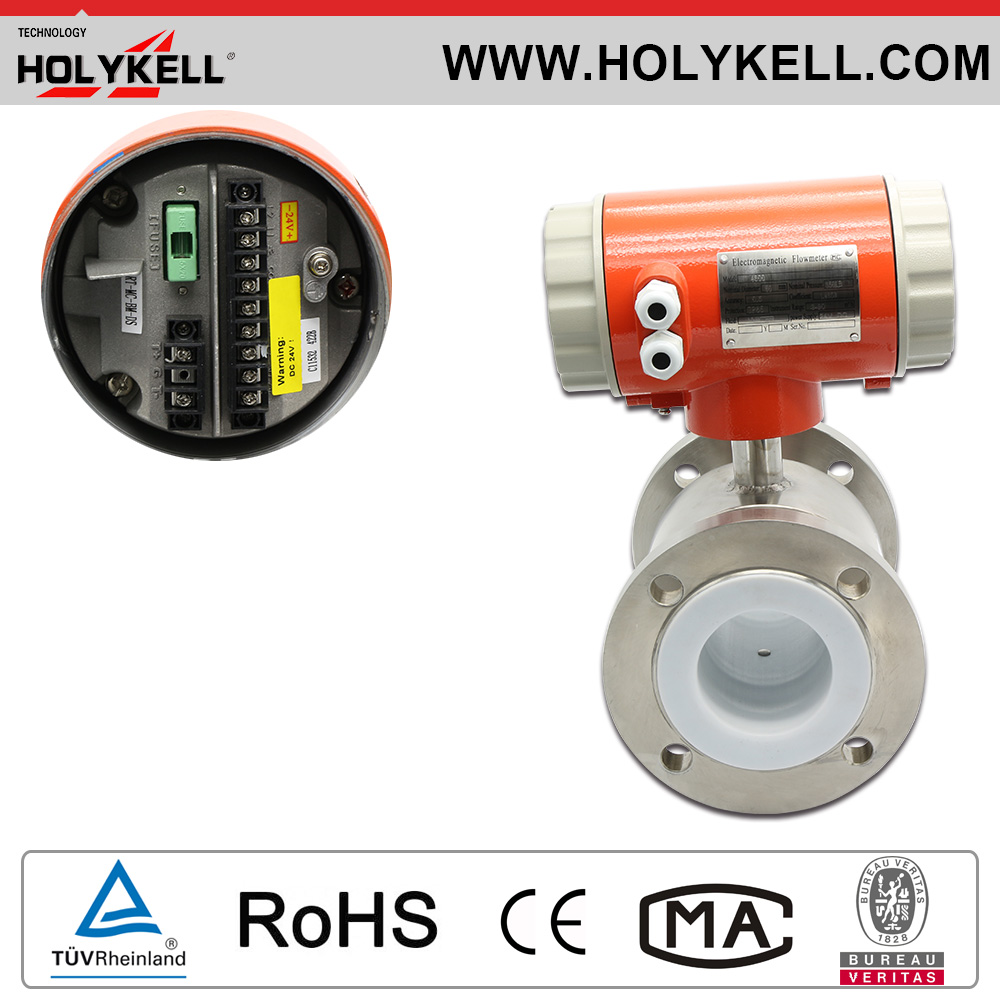

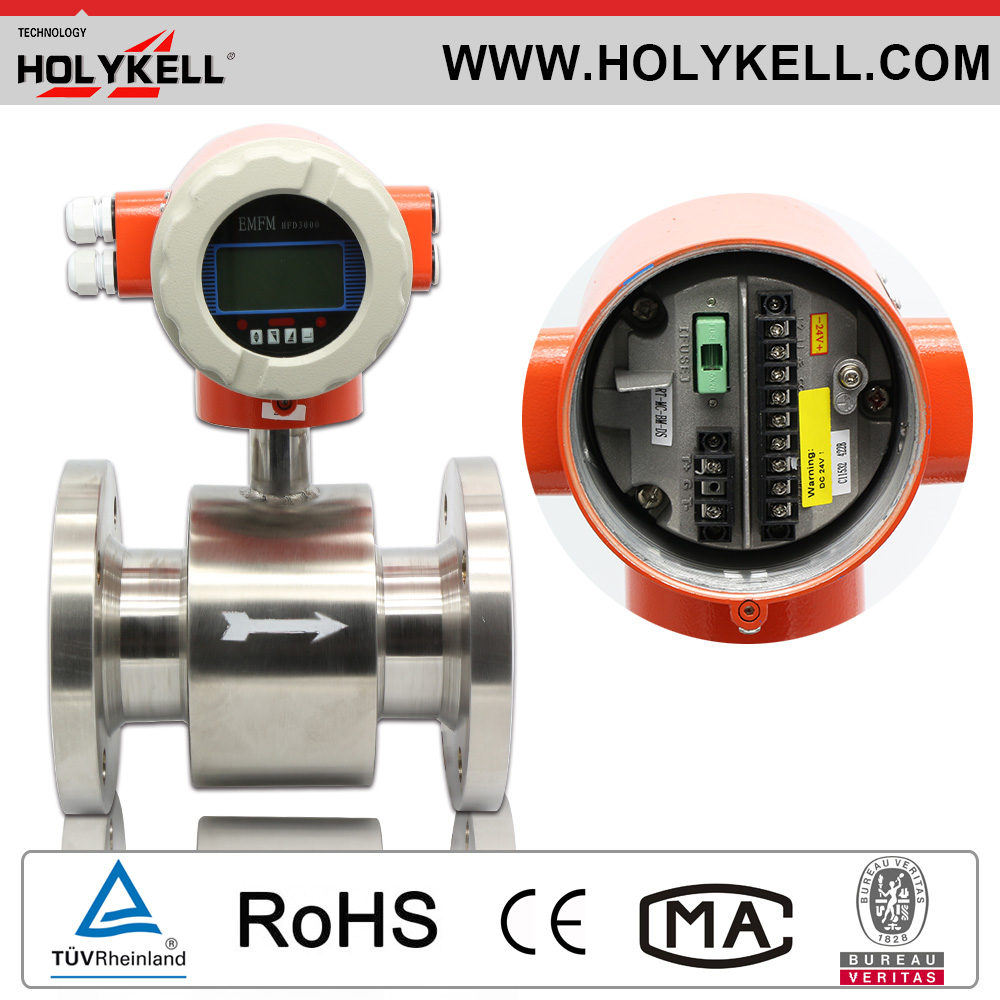

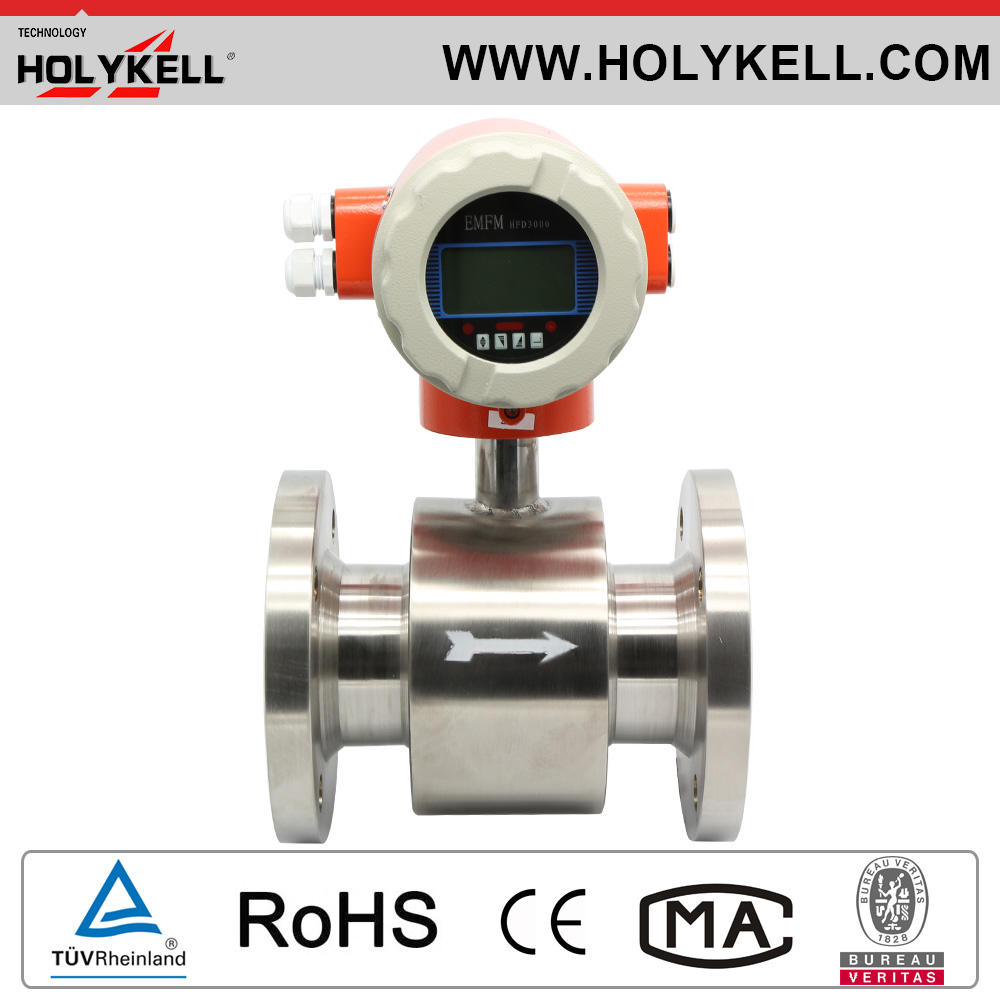

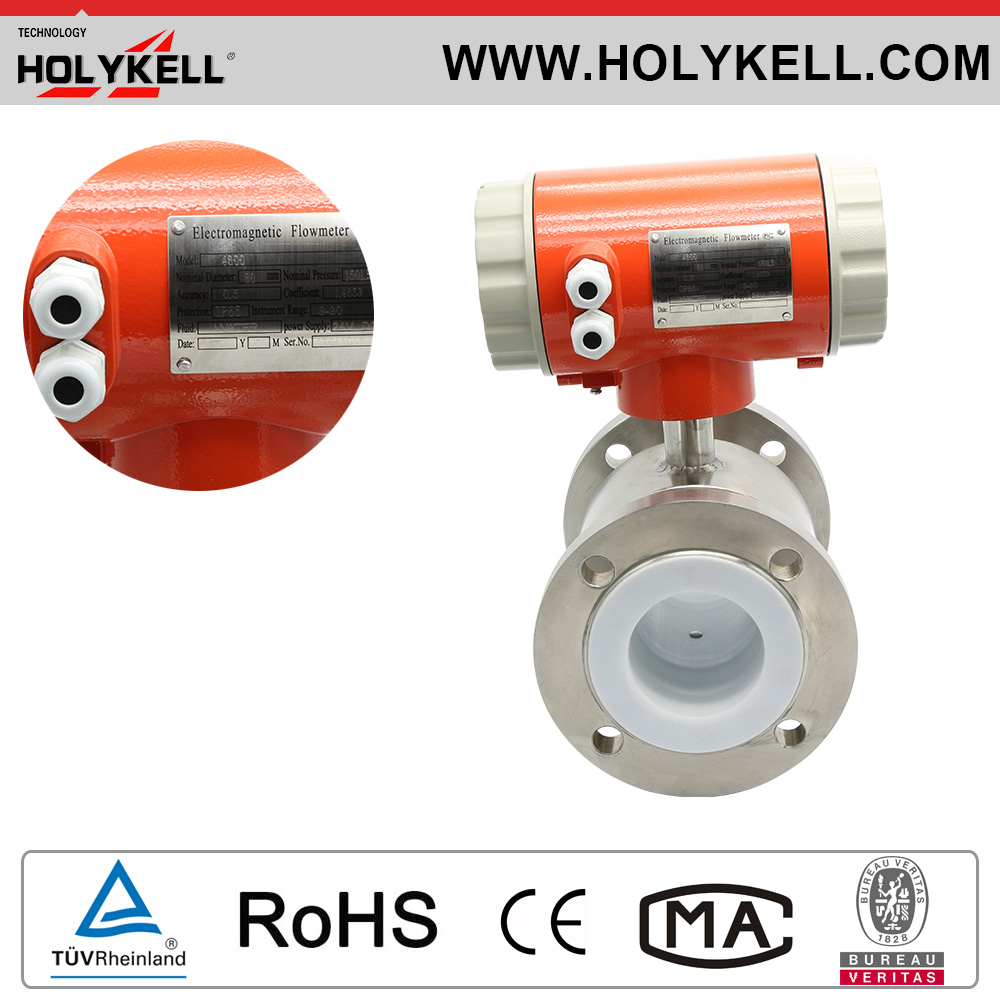

Holykell 4800E Electromagentic Flowmeter, Magnetic Water Flow Meter Price Waste Water Flow Meter
| FOB Price: | 300.00 - 1,000.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Shipping: | Shipped in 10 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hunan in China |
| Packaging Details: | standard export packing, no damage to product |
Quick Details
- Brand Name: Holykell 4800E Electromagentic Flowmeter ,Magnetic Water Flow Meter Pr
- Accuracy: 0.25%FS to 0.5%FS
- Power Supply: AC220V or DC24V
- output: 0-10mA,4-20mA,pulse,digital
- Medium: electromagnetic flowmeter
- Model Number: electromagnetic flowmeter
- Flow range: 0.3~15m/s
- EX proof: normal , flameproof( dIICT4-CT6), Intrinsically safety( ExiaIICT4)
- Application: water (tap water, industrial water, and sewage treatment) metallurgy
- Specification: liquid or water flow measurement
Specifications
Holykell 4800E China Electromagentic Flowmeter,Magnetic Water Flow Meter Price are fully Comprehensive (all intelligence) which is developed in Using the advanced technology from domestic and foreign Countries and consisted of 4800-type flow sensor and 4800-type smart converter supporting. It is widely used in Water (tap water, industrial water, and sewage treatment) Metallurgy, chemical, textile, food, paper, power, Pharmaceutical and other industrial areas. It applies to Measure (is fit for the measurement of ) the volume flow of Conductive medium including the acid, alkali, salt solution, Slurry, pulp, paper pulp, waste water.
Model Parameter: |
4800 series |
Caliber |
DN15 - DN150 |
Medium temperature |
≤120°C |
Measuring medium |
Medium conductivity>5μs/cm;Water≥20μs/cm |
Range |
0.3m/s~15m/s |
Accuracy |
±0.2%,±0.5% |
Working pressure |
1.6MPa (special pressure build) |
Output signal |
4 ~ 20mADC / RS-485 / HART protocol |
Power supply |
Standard 220VAC, 24VDC |
Converter |
Integrated Segregate |
Electrode type |
Standard fixed type |
Connecting flange |
in line with international standards of GB9116-88 and DIN2501 (BS4505) |
Selection of materials |
Flange connection material: stainless steel (1Cr18Ni9Ti) |
Lining material |
F46 (FEP) poly perfluoro ethylene allyl |
Explosion-proof |
Normal,flameproof(dⅡCT4-CT6),Intrinsically safety(ExiaⅡCT4) |
Protection class |
IP65,IP68 |
