>Products Catalog > Monocrystalline Solar Panel > Mono PV Panels, 260w Mono PV Modules Popular in India

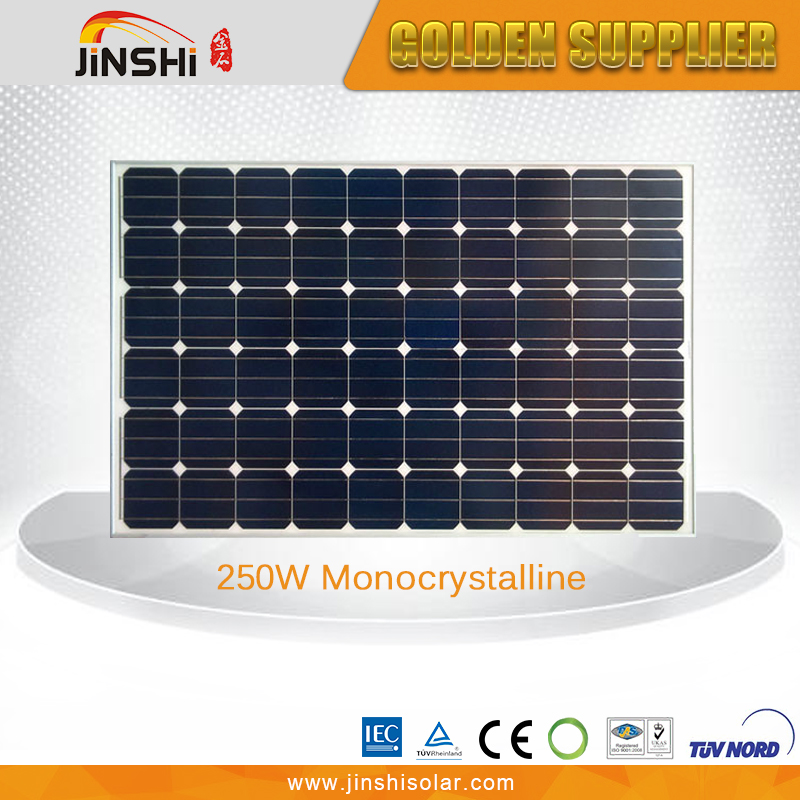

Mono PV Panels, 260w Mono PV Modules Popular in India
| FOB Price: | 0.30 - 0.50 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Kilowatt(s) per Month |
| Shipping: | 15 days after receiving down payment |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Pallets or wooden case |
Quick Details
- Max. Power: 260
- Number of Cells: 60
- Size: 1650*992*35mm
- Material: Monocrystalline Silicon
- Brand Name: JINSHI
- Model Number: NBJ-260M
Specifications
Electrical Parameters at Standard Test Conditions(STC) |
Module type |
NBJ-250M |
NBJ-255M |
NBJ-260M |
NBJ-265M |
NBJ-270M |
Rated Maximum Power (Pmax/W) |
250 |
255 |
260 |
265 |
270 |
Maximum Power Voltage (Vmp/V) |
30.31 |
30.58 |
30.81 |
31.11 |
31.33 |
Open-circuit Voltage (Voc/V) |
37.72 |
37.90 |
38.08 |
38.26 |
38.46 |
Maximum Power Current (Imp/A) |
8.25 |
8.34 |
8.44 |
8.52 |
8.62 |
Short-circuit Current (Isc/A) |
8.76 |
8.84 |
8.92 |
9.00 |
9.09 |
Module Efficiency (%) |
15.3 |
15.6 |
15.9 |
16.2 |
16.5 |
STC: Irradiance 1000W/M2 Module Temperature: 25℃ AM=1.5 | |||||
Mechanical Characteristics |
Cell Size (mm) |
156X156 |
No. of cells |
60(6X10) |
Module Size (mm) |
1650X992X35 |
Module Weight (KG) |
17.5 |

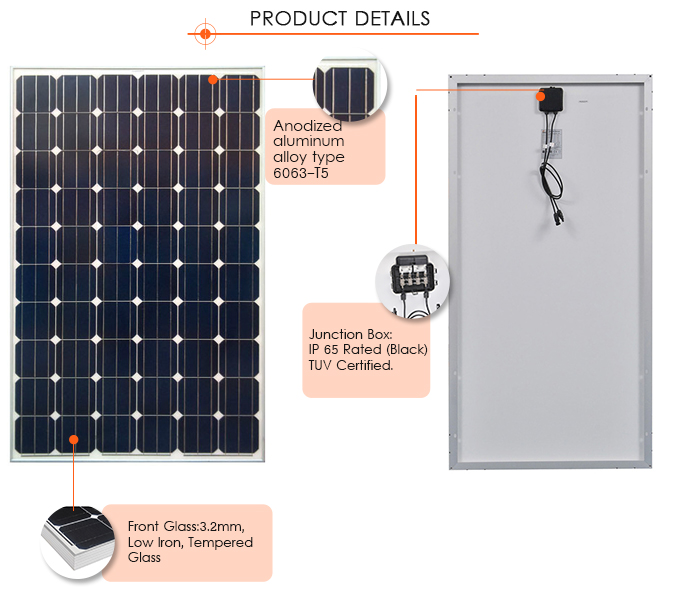

| Construction Materials |
Front Glass |
3.2mm, Low Iron, Tempered Glass |
Frame |
Anodized Aluminum Alloy Type 6063-T5 |
Junction Box |
IP 65 Rated (Black) |
Output Cables |
TUV 1×4mm2, length:900mm |
Connector |
MC4 (IP67) |
Encapsulation Material |
EVA(0.45±0.03mm thickness) |
Back Foil |
White TPT(0.32±0.03mm thickness) |
Fixing Adhesive |
Silicone Sealant(White) |
Temperature Coefficient |
Power Tolerance |
0~+3% |
Temperature Coefficient of Pmax |
(-0.41±0.05)%/℃ |
Temperature Coefficient of Voc |
(-0.34±0.02)%/℃ |
Temperature Coefficient of Isc |
(0.05±0.01) %/℃ |
NOTC(℃) |
(47±2)℃ |
Operating Conditions |
Max. System voltage |
1000DVC (IEC) |
Max. System fuse rating (A) |
15 |
Operating temperature (℃) |
-40~85 |
Max. Static load, front (e.g., snow) PA |
5400 |
Max. Static load, back (e.g., wind) PA |
2400 |
|
|
