Home  >Products Catalog > Hand Pallet Truck > New Design AC Casting Pump Pallet Truck 2.5ton Hydraulic Pallet Truck

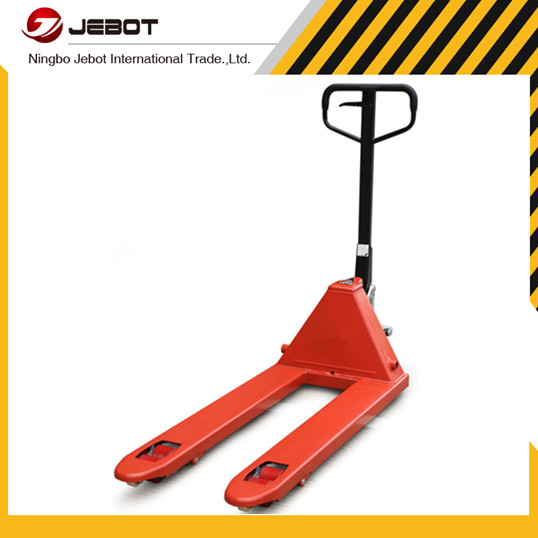

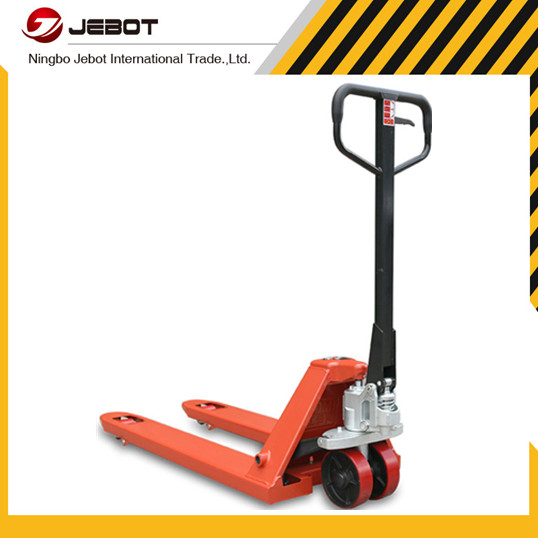

New Design AC Casting Pump Pallet Truck 2.5ton Hydraulic Pallet Truck

FOB Price: 100.00 - 120.00 USD/Piece
Supply Ability: 2,000 Piece(s) per Month
Shipping: 30days
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: wooden package

Quick Details

  • Power Souce: manual
  • Type: Manual Pallet Truck
  • Brand Name: JBTAC
  • Condition: New
  • Year: 2017
  • After-sales Service Provided: No overseas service provided
  • Certification: CE/ISO9001
  • Overall Dimensions: 2100*700*700mm
  • Fork Width: 550/685mm
  • Fork Length: 1150/1220mm
  • Min. Lifting Height: 75/85mm
  • Max. Lifting Height: 190/200mm
  • Rated Loading Capacity: 2500kg
  • Model Number: JBTAC

Specifications

New design AC casting pump pallet truck 25ton hydraulic pallet truckSpecification

Model No





JBT20AC

JBT25AC

JBT30AC

MAX CAPACITY



KG

2000

2500

3000

MIN.HEIGHT

H1

MM

75/85

75/85

75/85

MAX.HEIGHT

H2

MM

190/200

190/200

190/200

FORK LENGTH

L

MM

1100/1150/1220

1100/1150/1220

1100/1150/1220

FORK SIZE

W1

MM

160*50

160*50

160*50

over WIDTH

W2

MM

520/540/550/685

520/540/550/685

520/540/550/685

STEERING WHEEL



MM

180*50/200*50

180*50/200*50

180*50/200*50

SINGLE LOADING WHEELS



MM

74*93/80*93

74*93/80*93

74*93/80*93

TANDEM LOADING WHEELS



MM

74*70/80*70

4*70/80*70

4*70/80*70

MATERIAL of LOADING WHEEL





PU/NYLON

PU/NYLON

PU/NYLON

MATERIAL of STEERING WHEEL





PU/NYLON/RUBBER

PU/NYLON/RUBBER

PU/NYLON/RUBBER

LOADING QTY(1*20GP)



PC

144/180

144/180

144/180

Product oVerview



Jebotlift hand pallet truck with full hydraulic system. Bullet connection between steering shaft and pump piston. It is covenient to replace the rear wheel. the oil pump body can be made by assembling the separated prefabricated parts using threaded connection or make by die casting decrease leak possibility.
Special lowering valve to control the rate of descent and over load by- pass valve to make the trucks durable.Welding  robot for frame and pump make the tuck very strong and nice.

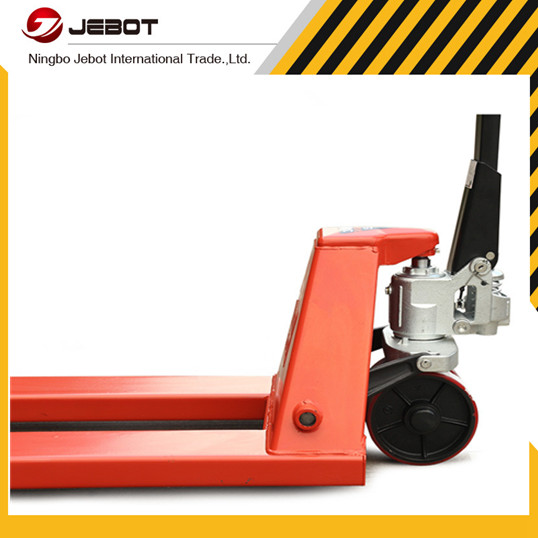

One piece casting pump with reliable oil-proof hydraulic systems

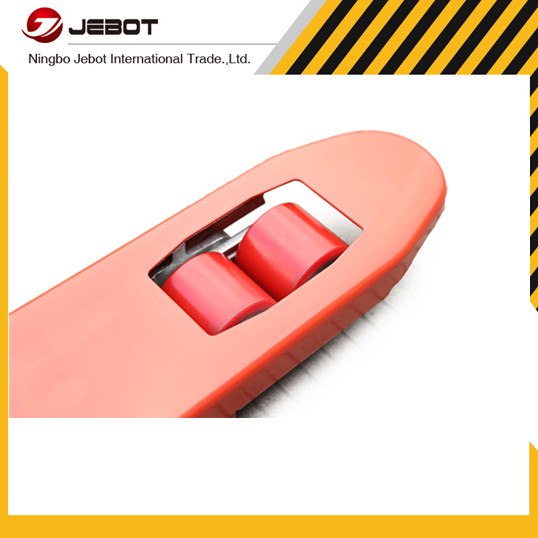

Various wheels for your choose,nylon,PU,rubber

Nylon casters with high hardness, go up the sound, but need some smaller thrust;

Polyurethane with low hardness, go up small noise, pushing heavy items of labor.



Different color can made based on your demand



Manipulator Weld--Good Weld with Panisonic Manipulator










Packing&Delivery



Packing data(unit:1 wooden pallet=6 pieces hand pallet trucks):

Pallet truck size

1*20GP

1*40HQ

685*1220mm

144pcs

288pcs

550*1150mm

180pcs

360pcs
