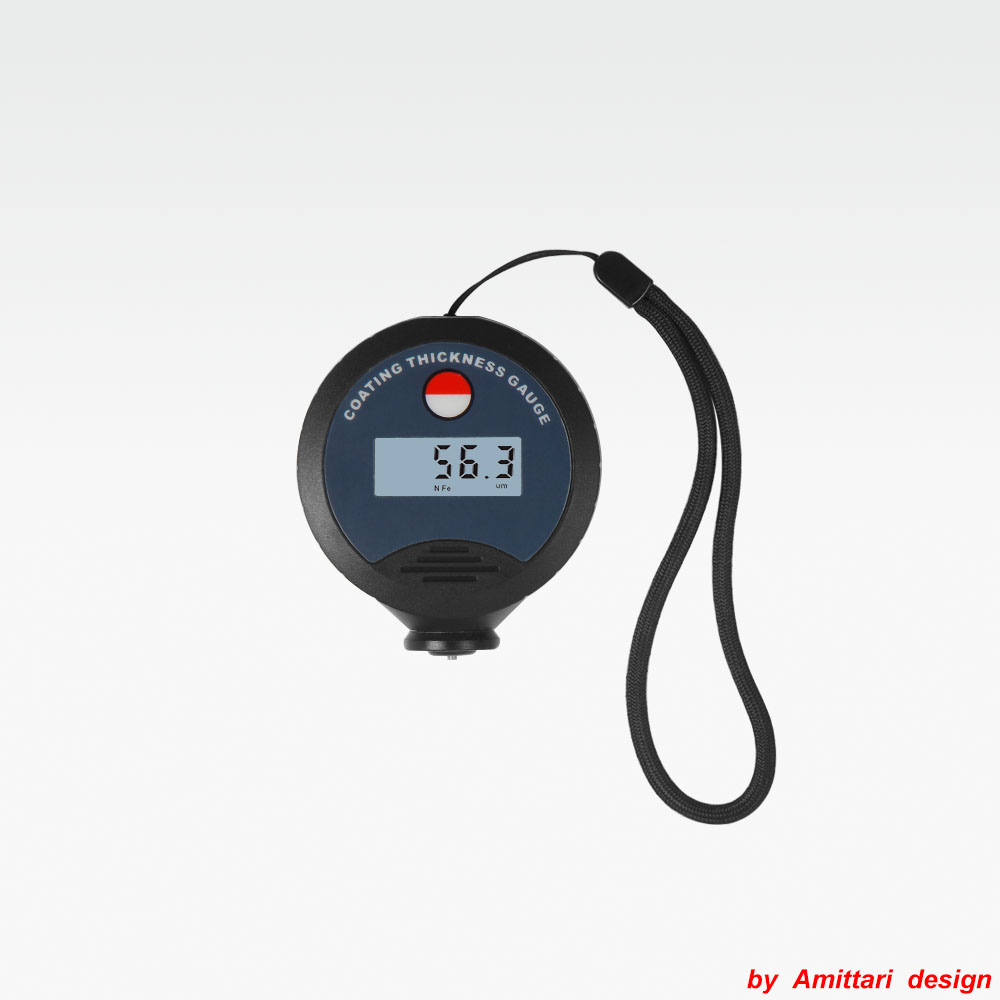

Coating Thickness Gauge AC-990

FOB Reference Price: $ 200
Wholesale: 1 Piece(s)
Supply Ability: 999 Piece(s) per Month
Payment Terms: T/T, Western Union
Update Time: 2018/9/8
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • Brand Name: AMITTARI
  • Resolution: 0.1um
  • Accuracy: 1~3%
  • Measuring Range: 0~500um/0~20mil


Product Description

the Coating Thickness Gauge is suitable for automotive, paint layer coating thickness measurement; Integral Type  suitable for single-hand operation, large probe with large  contact  surface  have  better  stability,  users  can  get  continuous,  good   repetitive and  precise measurements. It is a kind of portable measuring instrument, it can  quickly,  no  damage  and  precise coating, coating thickness measurement; Not only can be used in the laboratory, also can be used  in  the  engineering  field; through the use of different measuring head, but also can meet  the  needs  of  a  variety  of  measurement;  Widely  used  in manufacturing,  metal  processing  industry,  chemical  industry,  commodity  inspection  and  testing  field;   Is   the   material protection professional. Necessary instruments.

Product Feature

* It is not only a F type gauge but also a NF type gauge.
* Digital backlit display gives exact reading with no guessing or errors.
* Two measurement mode: Single and Continuous.
* Wide measuring range and high resolution.
* Manual or automatic shut down.
* Optional USB Cable to connect with PC.

Product Parameters

Measuring Range 0~500μm/0~20mil
Resolution 0.1μm
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area 6 mm

Minimal Surface

F Type convex1.5 mm / concave 25 mm
NF Type  convex 3 mm / concave 50mm
Operating Condition Temp: 0~50°C /
Humidity: <95%
Power Supply 2x1.5vAAA Um-4 Battery
55g  (Not including batteries)

Product Accessories

Standard Accessories

Main Unit

Calibration Foils

Substrate  ( Iron )

Substrate  ( Aluminium )

Leather Bag
Operation Manual

Optional Accessories

USB data output

Coating Thickness Gauge AC990
