PU Foam Spray Polyurethane Foam Forming Machine

FOB Price:	2,900.00 - 4,000.00 USD/Piece
Supply Ability:	999 Piece(s) per Month
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: CNMC
COLOR: RED
name: PU foam Spray polyurethane foam forming machine
Weight: 105KG

Specifications

Introduction of polyurethane forming machine

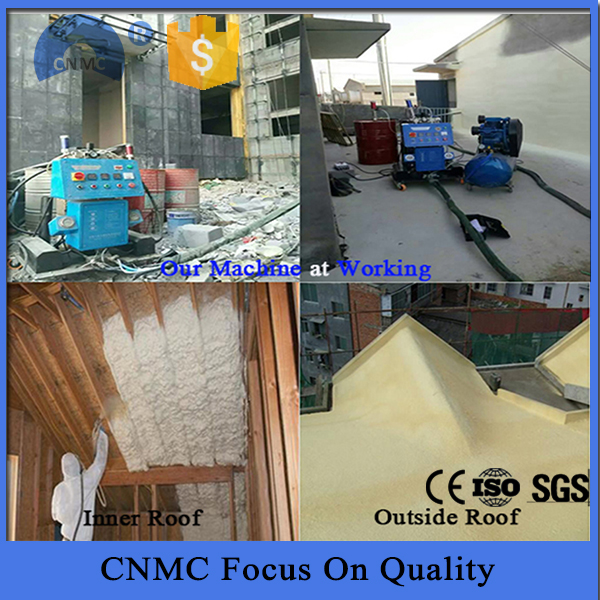

Polyurethane spray: the construction of the external walls of spraying, spraying products, cold storage spray, refrigerated trucks spraying, roof spraying, industrial anti-corrosion, cabin, carriages, cars, tanks.PU foam Spray polyurethane foam forming machine, PU foam Spray polyurethane foam forminG machine

Polyurethane casting: solar water heaters, insulation tanks, refrigerators, security doors, cabin, insulation boards, pipe joints, product packaging, road construction, wall noise.

1. the machine has a small size, light weight, low failure rate, simple operation, easy to move and so on.

2. Use the most advanced pneumatic booster devices, the maximum degree to ensure stability of equipment work.

3. Multiple raw material filter device to minimize the spray plug problem.

4. Multiple leakage protection system to protect the safety of the operator.

5. with an emergency switch system, to the most rapid response to emergencies.

6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state, to meet the normal construction of equipment.

7. the feeding volume can be adjusted, and has a regular, quantitative function, especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.

8. the latest no-clean spray gun with small size, light weight, low failure rate.

9. Material taken pump use large ratio method, automatic mention material, high viscosity of winter raw materials can also easily feed.

Parameter of polyurethane forming machine

Model: CNMC-E

Power source: single phase 220V 50Hz

Heating power: 7.5 KW

Driven mode: pneumatic

Air source: 0.5~0.8 MPa ≥0.9 m3/min

Raw output: 2-12 kg/min

Maximum output pressure: 11 MPA

AB material output ratio: 1:1

Spray gun: 1 Set

Feeding pump: 2 Sets

Heating hose: 15 Meters

Gun connection pipe: 2 Pieces

Feed delivery pipe: 2 Pieces

Pneumatic pipe: 5 Meters

Spare parts: 1 Set

Packing size: 750x560x1130 MM

Machine weight: 109 KG
