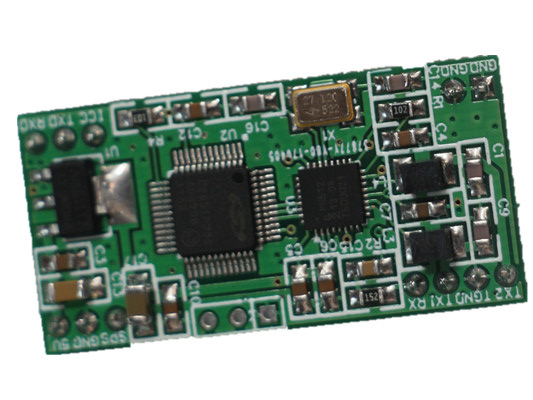

Smart Card Reader Module YST308 Chip PN512
| FOB Price: | 21.50 - 22.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | 14days after the payment, EXW BEIJING |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | in carton |
Quick Details
- Brand Name: JIAN ZHI AN
- Card type: IC card
- Communication: ISO14443A,ISO14443B,mifare
- Dimension: 42mm*21mm*8mm
- Frequency: 13.56MHz
- Model Number: YST308
- size: 42mm*21mm*8mm
- support protocol: ISO14443A,ISO14443B,mifare
- chip: PN512
- interface: UART, IIC
- reading range: 0-10cm
Specifications
YST308 Series are RFID reader/writer module which pick or send command by UART and IIC Ports. YST308 series meet kinds of international contactless IC card standards. Also YST308 series can support kinds of cards from suppliers. YST308 series RF Antenna is separated from the module. the RFID module can be very good at Reading/writing and very stable for impedance analyzer adjusting between RF Circuit and antenna.4wires are linked the antenna and module. Normally the wire Should be less than 200mm, or it will affect the module's performance and Stability.
Qualifications
Where It can be used: bus, access control system, bank, water meter, etc.
PCD: NXP PN512
Working Frequency: 13.56MHz
RF Standard: ISO14443A, ISO14443B
Operating Distance: 80mm (depending on card and antenna design)
Anti Collision ability: Full functions anti collision; be able to process multi-card Simultaneously; be able to set operate single card only.
Auto Detecting card: yes, default off
Interface: IIC &UART (selected by SPS pin, IIC is better)
Communication Rate: IIC 400Kbps, UART 19.2Kbps/115.2Kbps
Max Command length: 1024 Bytes
Interface Level: 3.3V (TTL level; 5V tolerance)
Power Consumption: 50mA
Dimension: 42mm*21mm*8mm
Package: DIP32
Weight about:15g
Operating Temperature: -25～+85℃(-77～+185℉)
Storage Temperature: -40～+125℃(-104～+257℉)
ISP: Yes
Module |
YST308 |
RF base station |
PN512 |
Interface |
IIC, UART |
RF standard |
ISO14443A, ISO14443B, Mifare |
Reading distance |
80mm |
PICC |
|
