220V 380V 3 Phase Solar Inverter Pump Inverter

FOB Price: 65.00 - 120.00 USD/Piece
Supply Ability: 1,000 Piece(s) per Week
Shipping: 2-5 days upon receipt of payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Update Time: 2017/5/24
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: carton

Quick Details

  • Type: DC/AC Inverters
  • Output Voltage: 110V/220V/230V/240V
  • Input Voltage: 110V/220V/230V/240V
  • Output Type: Triple
  • Brand Name: KEWO
  • Output Current: 13-320A
  • Output Frequency: 0-400HZ
  • Weight: as per unit
  • Size: as per unit

Specifications

the following example is for you reference.

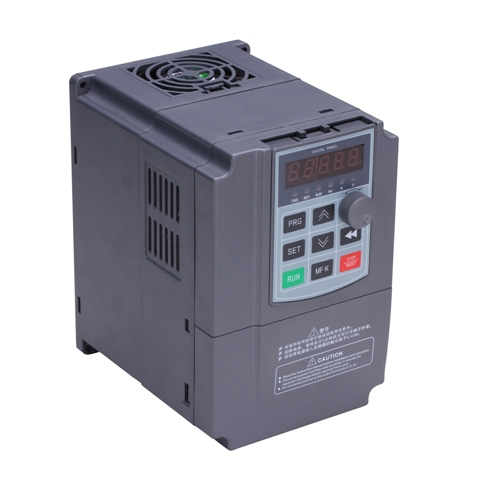

220V 380V 3 Phase Solar Inverter Pump Inverter

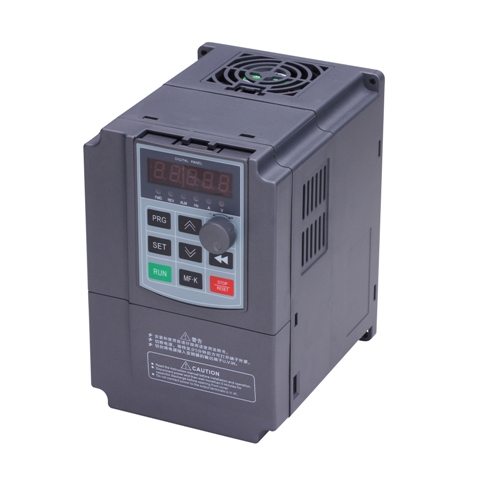

220V 380V 3 Phase Solar Inverter Pump Inverter


1.Brief Introduction:

Fully automatic system using variable speed drive compatible with AC, 3-phase, submersible and surface mount pumps, and high efficiency PMSM Pumps. the system is composed of a PV generator, a pump and a solar pump drive. Based on the design philosophy that it is more efficient to store water rather than electricity, there is no energy storing device such as storage battery in the system. The system is prepared to be combined with a elevated water storage, e.g. Water tower or an uphill tank installation.



2.Techincal parameters:
Recommended MPPT voltage range:

Vmpp 131 to 350 VDC for 1S (80V to 350VDC input3PH 110 to 220VAC output)

Vmpp 280 to 375VDC for 2S ( 150V to 450VDC input, 3PH 220 to 240VAC output)

Vmpp 486 to 750 VDC for 4T ( 250V to 800VDC input, 3PH 380 to 460VAC output)

Recommended input Voc and VmppVoltage:
Voc 180(VDC), Vmpp 155(VDC) for 1S model or 110V AC pumps

Voc 355(VDC), Vmpp 310(VDC) for 2S model or 220V AC pumps

Voc 621(VDC), Vmpp 540(VDC) for 4T model or 380V AC pumps


Rated output voltage:3-Phase,110V/160V/220V. 3-phase, 220V/380V/460V

Output frequency range:0~maximum frequency 600Hz.




3.Performance features:
MPPT ( maximum power point tracking), CVT (constant voltage tracking), auto/manual operation, dry run protection, low stop frequency protection, minimum power input, motor maximum current protection, flow calculating, energy generated calculating and water tank level detected.
