Processing Air Cooled Industrial Water Chiller

FOB Price: 1,800.00 - 2,500.00 USD/Set
Supply Ability: 100 Set(s) per Month
Shipping: 25-35 working days
Payment Terms: T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: wooden case

Quick Details

  • After-sales Service Provided: No overseas service provided
  • Certification: CE
  • Voltage: 380V
  • Cooling Capability(kw): 3RT
  • Brand Name: Anyda
  • Warranty: 1year
  • Weight: 160KG
  • Dimension(L*W*H): 1200*910*1300MM
  • Model Number: AYD-03A
  • Type: Air-Cooled
  • Condition: New
  • Outlet Temp: 7C

Specifications

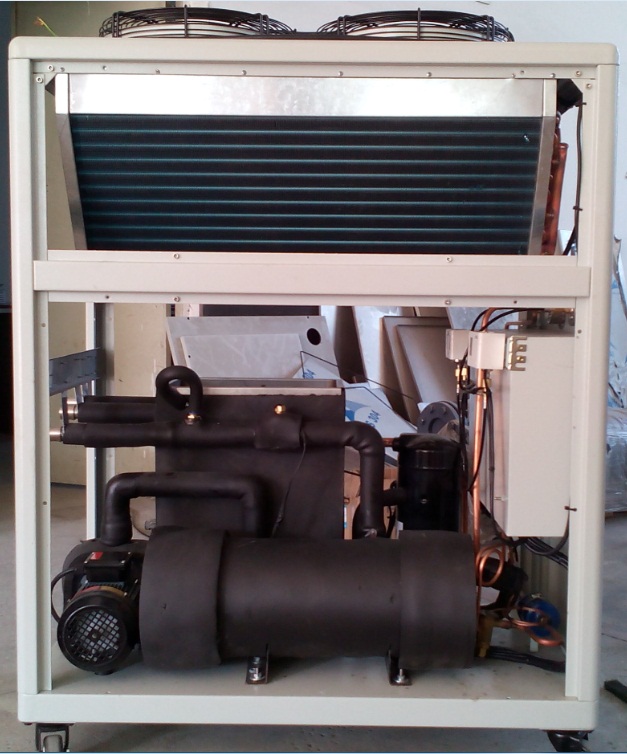

Processing Air Cooled Industrial Water Chiller

Product Description



Industrial water chillers are used for controlled cooling of products, mechanisms and factory machinery in a wide range of industries, including plastic injection and blow molding industry. the industrial chillers assist to improve the production efficiency and minimize the rejection ratio of finished products. A chiller will use either a vapor compression or absorption cycle to cool.



Chillers can be either air-cooled or water-cooled.

Air-cooled chiller requires less maintenance than water-cooled unit and it dispenses with the need for cooling towers. however, the air-cooled chiller generally consumes approximately 10% more power than a water-cooled unit. It transfers the heat absorbed to surrounding air directly.

Water-cooled chiller absorbs heat from process water and transfers it to a separate water source such as a cooling tower, river or pond. A cooling tower is a must if there is no direct discharge source like river or pond. The water could be reused after special treatment to remove the dusts and impurities.

There are
10kw-200kw cooling capacity for you choosing. Please kindly contact us for you detail request.
Features:
1.Cooling temperature range 5-35 centigrade temperature.
2. High-capacity tube-in-shell evaporator with very good heat exchange performance especially under high ambient temperature condition. the heat exchange power is: 15KW
3.Tube-fin double condensers with excellent heat transfer and rapid cooling. the efficiency of condensers is 17.5KW
4. Stainless steel warm-keeping water tank.
5. Overload protection for compressor, pump and blower.
6. Warm-keeping design for all piping to avoid partial convection.
7. Independent temperature controller, anti-freeze protection.
8. Phase sequence protection for control circuit, refrigeration loop controlled by high and low pressure switch.
9. R22 refrigerant to be used for efficient cooling.

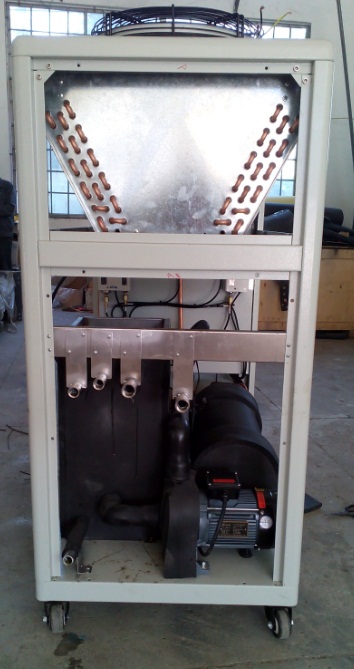

Processing Air Cooled Industrial Water Chiller

Packaging & Shipping

 1.Delivery Time: 15-30days,that depends on the model and quatity.



2.Package: wooden case



3.Payment: 30% TT as the deposit,70% balanced before delivery.



4.Warranty: 1year.during this period,if some parts broken,we could send you new one for replacement.

Our Services

 1.Reply your inquiry within 12 working hrs.

2.Strong R&D team,more than 15 years of manufacturing chiller experience. OEM&ODM is welcomed.

3.Direct factory,offer customer competitive price with high quality chiller.

4.Strict quality control system,professional QC team.
