Shandong Jiezhuo Machinery Co., Ltd.
China Manufacturer with main products: Machine and Accessories, Mine Machine, Construction Machine Equipment, Lifting Machine, Garden Machine |

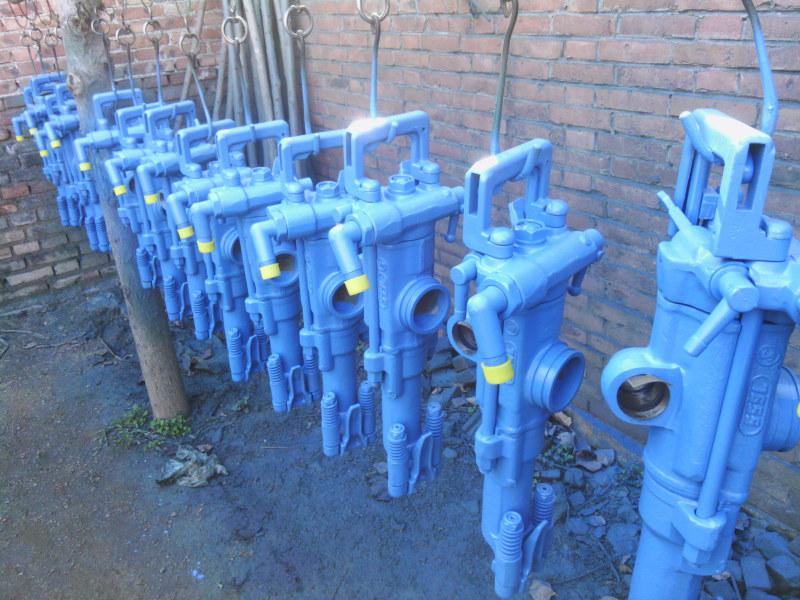

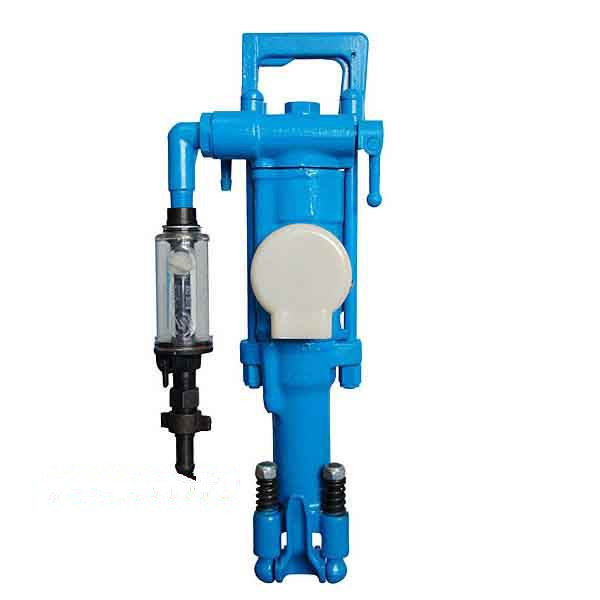

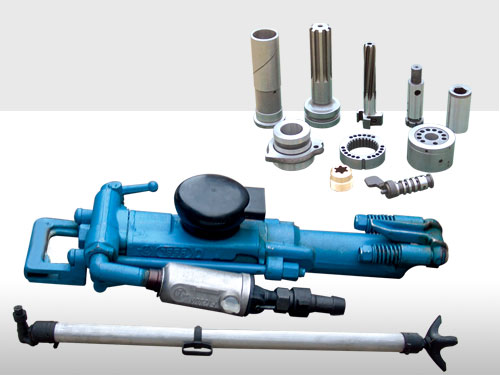

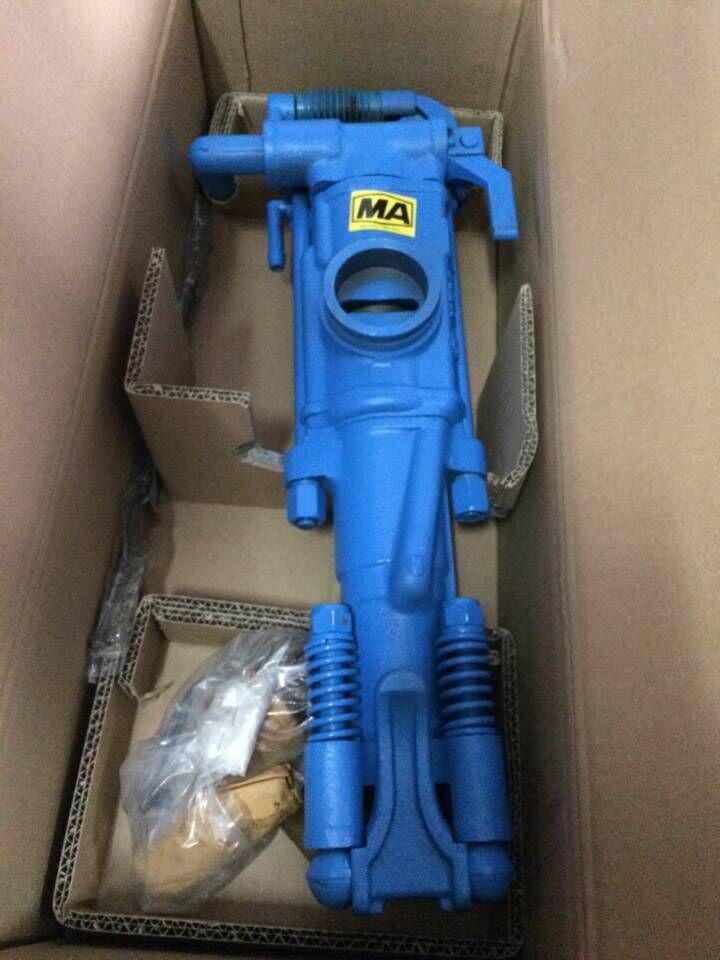

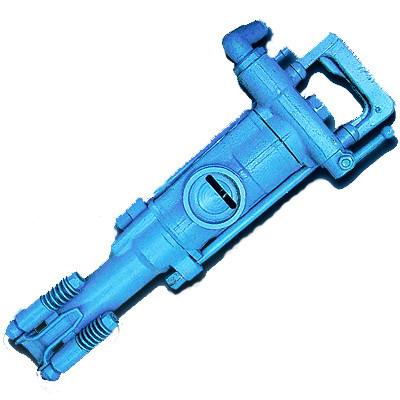

Hot Sale Rock Drill Air Leg Drilling Machine Pneumatic Rock Drill
| FOB Price: | 200.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | In 7 days after receive payment |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | WOODEN BOXES |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: JIEZHUO
- Power Type: Pneumatic
- Type: Core Drilling Rig
- Condition: New
- Warranty: 1 year
- Certification: CE
- Weight: 24kg
- Usage: Coal
- Model Number: YT23(7655)
Specifications
Hot sale rock drill air leg drilling machine pneumatic rock drill
Applications
the rock drill YT23(7655) is a kind of high efficiency hand hold rock drill machinery. It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defense project facility.
It is suitable for drilling and blasting under various of rocks at any direction angles. Blast hole diameter is 34-42 mm, drill hole depth is 5 m.
Features
1. Easily-accessible position throttle
2. Integral muffler, lower noise
3. It accepts heavy duty bits
4. Reliable structure, easy and stable operation
5. Drill diam. Can be from 32mm-60mm.
6. Hand-held and air legs rock drill accessible.
7. Provide the ultimate combination of performance and economy.
8. Portable and durable.
Specifications
Pneumatic rock drill YT23(7655) | |
Model |
YT23(7655) |
Weight |
24kg |
Length |
628mm |
Cylinder diam. |
76mm |
Piston stroke |
60mm |
Working pressure |
0.5-0.6Mpa |
Impact energy |
≥60.2 (J) |
Impact frequency |
≥36Hz |
Air consumption |
≤80L/s |
Working water pressure |
0.2~0.3 (Mpa) |
Air pipe inner diam. |
25 (mm) |
Water pipe inner diam. |
13 (mm) |
Rock drill hole diam. |
34~42 (mm) |
Rock drill hole depth |
5 (m) |
Shank size |
22*108 (mm) |
Oiler FY200A | |
Tank |
200ml |
Weight |
1.2kg |
Optional for Air leg:
Air Leg FT160A &FT160B | ||
Model No. |
FT160A |
FT160B |
Weight |
17kg |
16kg |
Max. Length of air leg |
3006mm |
2526mm |
Min. Length of air leg |
1668mm |
1428mm |
Push length |
1338mm |
1098mm |
the maximum axial thrust |
2000N |
2000N |
