>Products Catalog > wire mesh machine > 4300mm Weaving Mesh Width New Double Rack Drive Gabion Box Machine, Hexagonal Mesh Machine
4300mm Weaving Mesh Width New Double Rack Drive Gabion Box Machine, Hexagonal Mesh Machine
| FOB Price: | 35,000.00 - 48,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden box or accoding to customers request |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: XM
- voltage: 220V
- weight: 15TONS
- Condition: NEW
- Model Number: 5
- Woven Wire Diameter: 2.0-4.5mm: Mesh Width: 2.3m,4.3M,5M
- Capacity: 165*4(L*W) (660 Square Meters Per Hour: mesh size:60x80,80x100,100*120
- Gabion Basket Size: 2X1X1m, 3X1X0.5m, 4X2X0.5m, 6X3X0.5m: Zinc Coating: 250-300G/M2
- Lacing Wire: 2.2mm: Twisted Number: 3
Specifications
Product Description

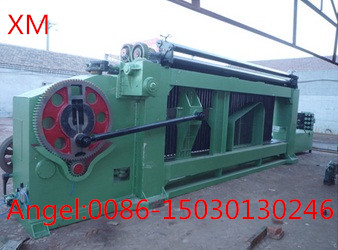

Gabion mesh machine
Gabion mesh machine is one kind of special equipment for twisting metal wire hexagonal mesh with big wire, big mesh and wide breadth.
the product has widely purpose, with its good corrosion resistance and oxidation resistance, serves well as strengthen, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, petroleum, chemical, breeding, garden and food processing industries.
Gabion machine is a kind equipment to make gabion mesh with twisted, big hole and wide panel.
this series of equipment has the features of reasonable design, simple structure, smooth and steady running, good property,reliable operate,easy maintenance. and the equipment is made up of main machine, wire tension machine,mesh coiling machine
It can weave 3.2mm wire mesh easily like normal machine weave 2.4mm wire mesh, and speed is also quickly as normal style
4300mm Max Mesh Weaving Width Heavy Duty Hexagonal Gabion Machine for 3.2mm Wire, 22kw
Twist Gabion Hexagonal Wire Netting Machines with Automatic Oil System
Maintenance period: one year
Specification of gabion wire mesh
Mesh Size:60x80,80x100,100x120,120x150
Gabion mesh width:2300mm,3300mm,4300mm.
Diameter:2.0mm-4.0mm
Our machine adapts PLC frequency control after being improved.
the advantages for PLC frequency control for you.
1,It is touch screen control.
2,It has the function of frequency control of motor speed according to different of wire diameter.
3,It has buffer function when speed increase or decrease in very short time.
4,It can count output every day or every year.
5,It can save about 30% energy.
Specifications |
Maximum width | Maximum diameter | Power of motor | Knitting speed | Exterior size | Weight(T) |
| 60x80 | 2400mm | 2.8mm | 15kw | 165m/hour | 5200*1400*2400 | 13.5 |
| 3300 | 2.8 | 18 | 6200*1400*2400 | 15 | ||
| 4300 | 2.8 | 22 | 7200*1400*2400 | 16 | ||
| 80x100 | 2400 | 3.2 | 15 | 200m/hour | 5200*1400*2400 | 13.5 |
| 3300 | 3.2 | 18 | 6200*1400*2400 | 15 | ||
| 4300 | 3.2 | 22 | 7200*1400*2400 | 15.5 | ||
| 100x120 | 2400 | 3.2 | 15 | 220m/hour | 5200*1400*2400 | 13.5 |
| 3300 | 3.2 | 18 | 6200*1400*2400 | 16 | ||
| 4300 | 3.2 | 22 | 7200*1400*2400 | 15.5 | ||
| 120x150 | 2400 | 3.2 | 15 | 230m/hour | 5200*1400*2400 | 13.5 |
| 3300 | 4.0 | 18 | 6200*1400*2400 | 15 | ||
| <4300 | 4.0 | 22 | 7200*1400*2400 | 16 |
Gabion box machine
Wire spring winding machine
Wire tension machine
Mesh rolling machine
