Quick Details
- Machine Type: Other
- Material: Stainless steel
- Certification: CE
- Brand Name: Gz air tech
- Condition: New
- Machine Type: clean equipment
- After-sales Service Provided: Engineers available to service machinery overseas
- Dimension(L*W*H): As picture
Specifications
| Product feature | Someone can immediately clear off when he is hurt by acid, Causticity, industry solvent or corrosive product accidentally. |
| Product surface: | acidproof and endure cauterization. Adopt stainless steel Pipe and all connects are made in copper, which can prevent rust inside |
| Shower nozzle | Φ70 soft rubber protecting cup to avoid second hurt resulted by colliding eyes when use it urgently. Protecting cup is dust-proof and can be Pulled by water when in use. Meanwhile it can reduce the water pressure to Avoid hurting eyes. There's connection between protecting cup and dust-proof Tray to avoid falling off. |
*Main Function parameters
Pressure |
Flux L/Min |
Temperature | |||
Nominal Pressure |
Seal Pressure |
Working Pressure |
Shower |
Eye wash |
Tepid water |
0.4 |
0.45 |
0.20-0.40 |
≥75.5 |
≥11.4 | |
Choosing these data is considering the hurt to the skin, eye(s), when Accidents happen.
*Structure
1. the ball valve controls spray and eye wash Respectively. It is easily operate and you may assure the quality.
2. Set the seepage hole in the pipe of eye wash, can drain off the Residual water in the sprayer head of eye wash, which will help to clean pipes and antifreeze(part of the water drained into the downcomer, will not Affect the using.
*Main material: Good Quality stainless steel, Gloss exquisite polished

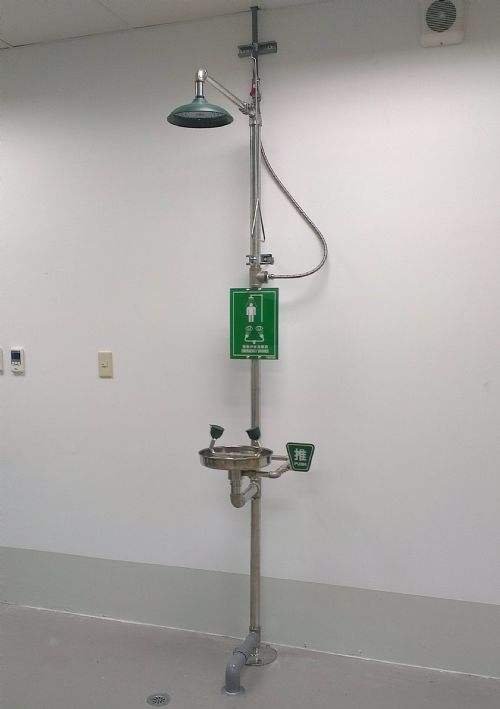

*Installation and maintenance
- You should check the type of products, Instruction and the packing list for Another time.
- the location of the emergency equipment should be installed within 10 seconds walking time or 15 meters from the hazard.
- Installation and maintenance:
- the connection of the bracket and the pipe: connect the T-piece of outlet with the bracket.
- the installation of the bracket: Adjust the position of the T-piece and install it by M10 screw.
the installation of shower pipe: screw on the sprayer Head (G3/4" net gasket inside) to sprayer pipe, Enwind the other end of sprayer pipe with Teflon tape, tighten at the up part of erect pipe, and then adjust the position of sprayer head and to lock well the

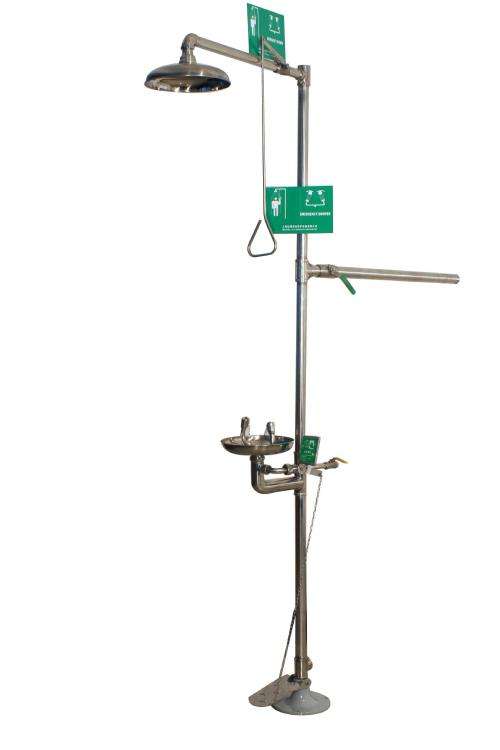

1. Body: 304 Stainless steel
2. Eye Wash: 304 stainless steel inlet pipe, S/S stay-open ball valve with flag handle & S/S eye wash bowl.
3. Spray head: Solid brass, built-in stainless steel filter to remove inpurities from water
4. Foot treadle stainless steel available: Activating eye wash valve(Non-standard Supply)
