Puyang Zhongshi Group Co., Ltd.
China Manufacturer with main products: Casing Centralizer, Float Collar, Float Shoe, Cemnet Plug |

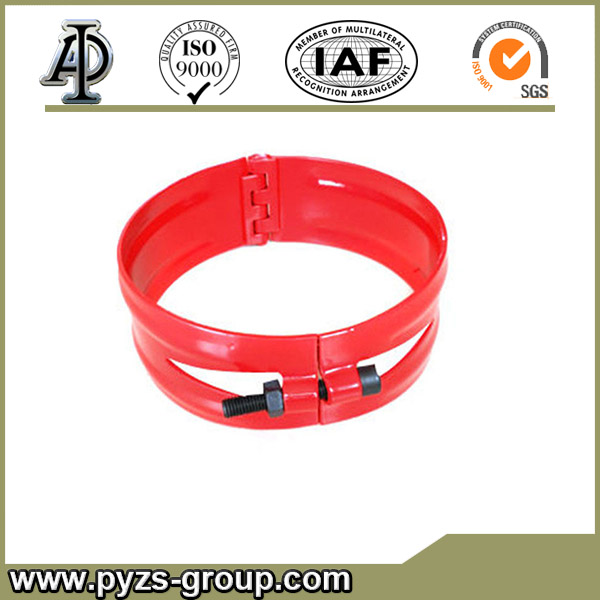

API Stop Collar Ring for Casing Centralizer
| FOB Price: | 4.00 - 23.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: PYZS
- Material: 65Mn
- Fiberglass duct rodder: none
- HRC: none
- Lmpact: none
Specifications
1. Application and characteristic
Position device (stop ring), called position ring, stop circular, brake ring, etc. It is used to limit the centralizer or cement basket slip on casing. It is divided into mobile screw type, fixed screw type and buckle type.
2. Install and use method
A. When use mobile screw type stop collar, slip over the casing, tighten the screws using wrench.
B. When use fixed screw stop collar, put the collar around the casing, insert the screw, and knock into screws by hammer.
C. When install buckle type stop collar, buckle the stop collar onto the casing, lock with pin, knock into the screws.
Specification
3. Property Parameters
|
Specifications,mm |
13 3/8″ |
10 3/4″ |
9 5/8″ |
8 1/8″ |
7 5/8″ |
7″ |
5 1/2″ |
5″ |
4 1/2″ |
|
ID,mm |
338 |
272 |
245 |
206 |
193 |
177 |
139 |
126 |
114 |
|
OD,mm |
350 |
284 |
257 |
218 |
285 |
189 |
151 |
138 |
126 |
|
Holding Force,KN |
40 |
40 |
40 |
30 |
30 |
30 |
30 |
24 |
24 |
