Foshan Tian Qi Co., Ltd.
China Manufacturer with main products: Drawer Slidng, Rail Assembly Machine, Outer Rail Automatic Machine, Milde Rail Automactic Machine, Rivet Fixed Machine |

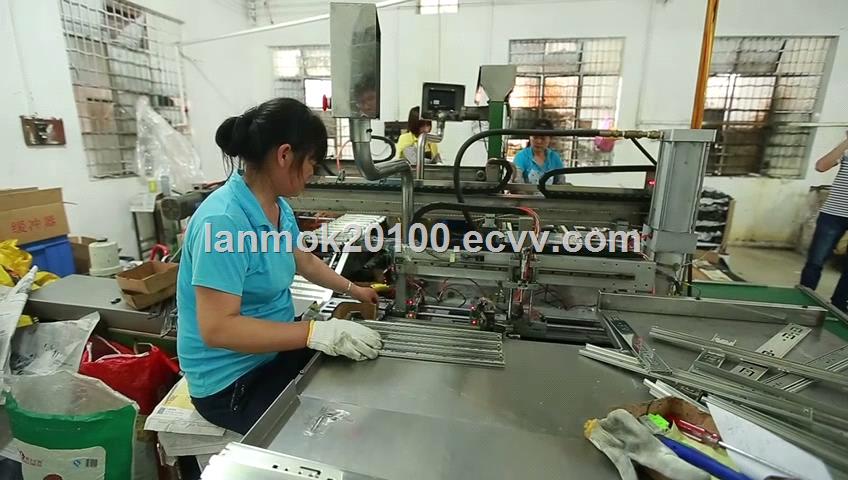

Outer Rail Auto Assembly Machine
| FOB Price: | 13,500.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set(s) per Year |
| Shipping: | shenzhen |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Mid East |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: Tian qi
- voltage: 220V ,380 V
- weight: 600KG
- Condition: Wooden packing
- Model Number: OT-1
- name: Outer rail auto-assembly machine
- capacity: 25pcs/min
- Usage: Drawer Cabinet Wardrobe Sliding Door Extension Table, Kitchen Furniture cabinet drawer Extension dining table
Specifications
the following example is for you reference.
1.Brief Introduction:

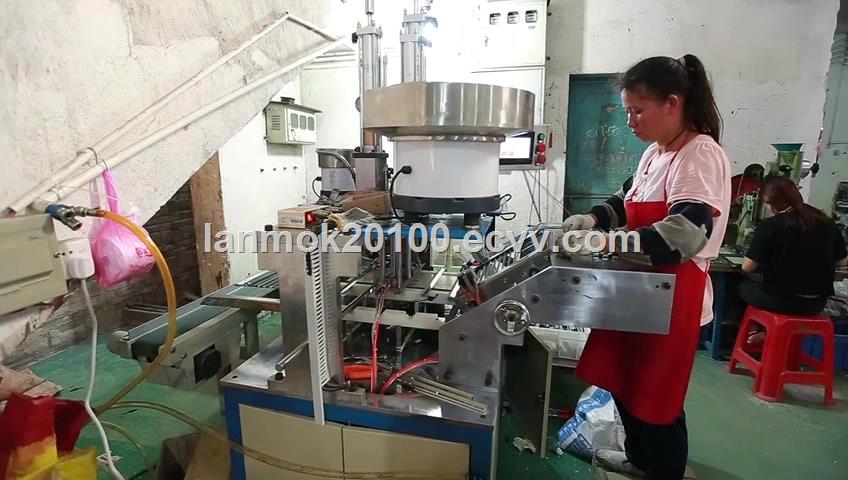

Semi-Automatic Ball Slide Assembly Machine
this semi-automatic ball bearing slide rail assembly machine is good for 2-section ball slides. It assembles four major parts as following below:
Middle rail
Ball cage
Steel balls
Greasing

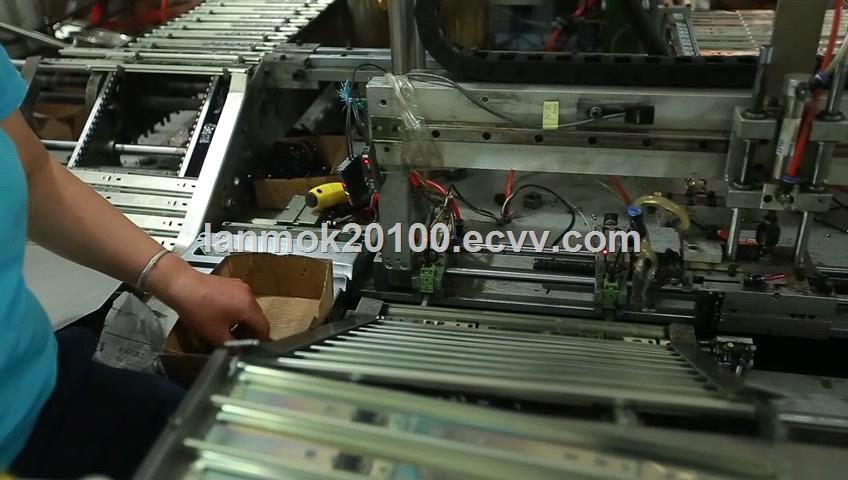

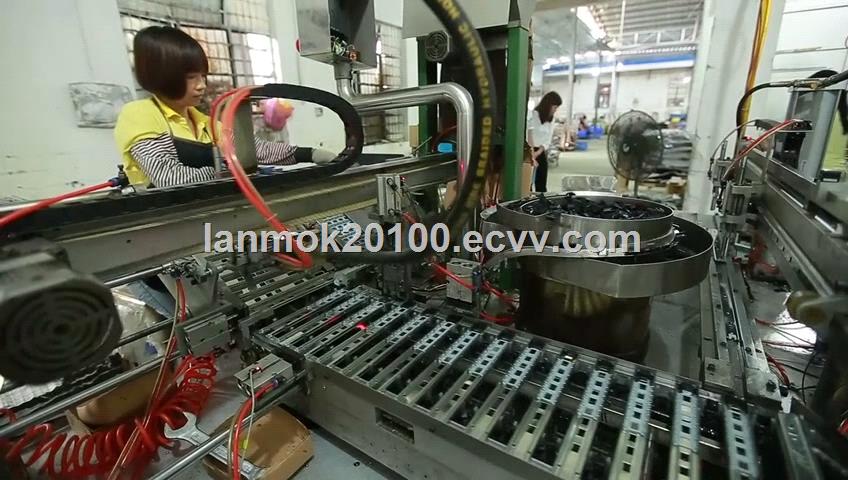

Line up ball cage on the left side material rack, and then line up middle rail on right side material rack. Robot will bring the ball cage running through ball inserting device. Balls will be fed into cavities on ball cage, and then there is grease disperser, which will instill grease into the slide rail.
2.Techincal parameters: Full extension ball bearing slide, full extension ball bearing slide Top one technical in China Lessing produce process No need carry the material from this place to other
Machine Code:
Ass-001 Material:
1, Inner slide fixed with fish (outer product from machine RVT-001
2, Middle slide
3, Outer slide
4, Stainess Steel balls
5, Steel ball cage (Inner ball cage) (no fixed with ball yet)
6, Grease
7, Plastic ball cage (outer ball cage) fixed with balls
8, Plastic stopper for middle slideSuitable slide type:
Advantages
High speed, effective facility
Protect the surface of drawer slide
Human reducing
