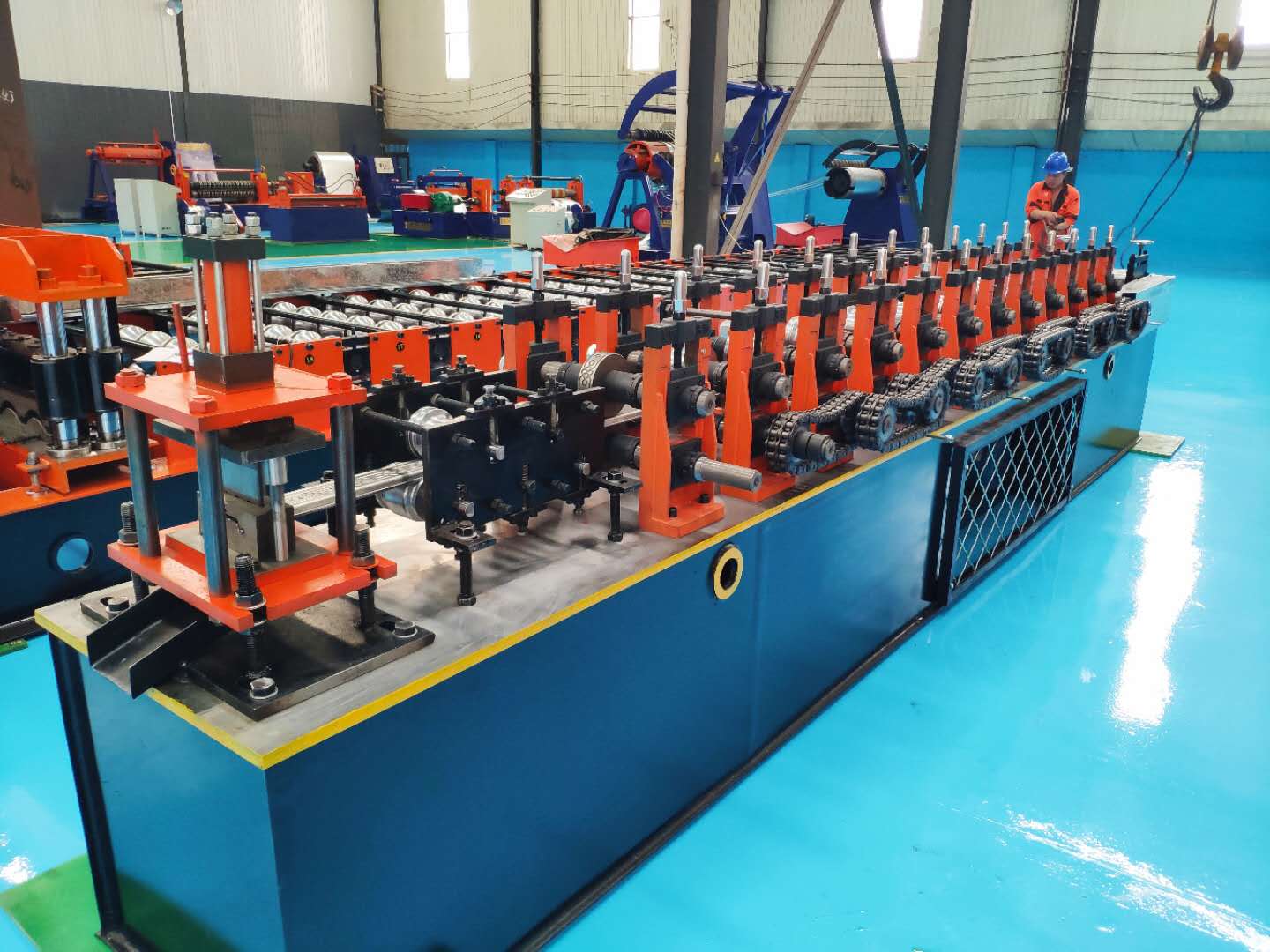

Galvanized Steel Roller Shutter Door Roll Forming Machine

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Main machine is naked, plc control cabinet is packed with carton box and water proof

Quick Details

Galvanized Steel Roller Shutter Door Roll Forming Machine
Technical parameter and accessories

Parameter		Specification
1	Processing material	Strip steel / aluminum sheet / galvanized steel coil / GI / PPGI.
2	Certification	CE / BV / ISO / SGS
3	Voltage	AC 380V 50Hz 3Phases or as per your request.
4	Power	5.5 kw main roll forming core + 4kw hydraulic station
5	Processing thickness	0.6-1.2mm
6	Feeding width	According to your profile drawings.
7	Output width	According to your profile drawings.
8	Diameter of shaft	48mm(Solid shafts)
9	Roller stations	12 rows of rollers
10	Machine size	about 6.8m * 1.0m * 1.2m
11	Machine weight	about 3.9 tons
12	Productivity	about 10-12 m/min
13	Roller material	Cr12 mould steel with quenched treatment
14	Cutter material	Cr12 mould steel with quenched treatment
15	Screw	Galvanized national standard
16	Control system	Delta PLC (made inTaiwanprovinceofChina.)
