3M Width Full Automatic Chain Link Fence Making Machine Manufacturer
| FOB Price: | 12,000.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | by sea |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | plastic film or according to customers request |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Brand Name: XM
- voltage: 380V
- weight: 2.3TONS
- Condition: NEW
- Model Number: XM,
- Mesh Width: 3.0m: Woven Wire Diameter: 2.0-4.0mm
- Outside Dimension: 6.3*2.8*1.8m: Weight: 2.3TONS
- Mesh Size: 25*25-100-100mm: Motor: 5.5KW one set, 1.5kw one set, 0.75kw two sets, 0.12KW one set
Specifications

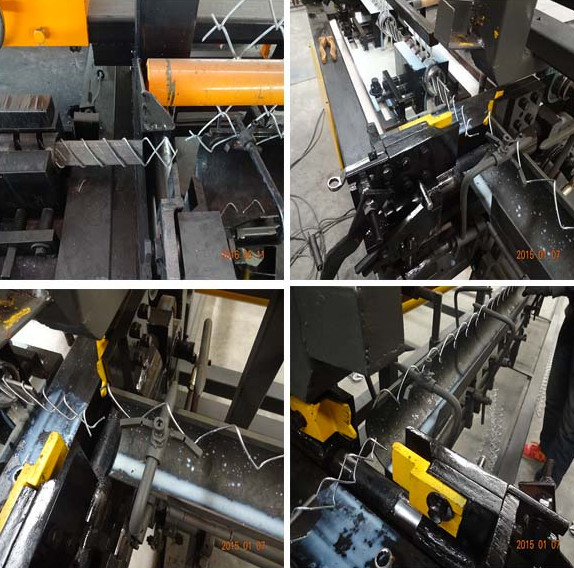

Full Automatic Chain Link Fence Machine Fully-automatic chain link fence machine performance 1.Designed for continuous working system as 24 hours. 2.Double wire input 3.Two sets mold for free 4.Long using time for mold 5.Low tolerance for mold +/-1mm 6.Wire fencing option up to 6 meters height.(the minimum could be any size) 7.Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size) 8.It works with any thickness between of wire 1.5mm and 6mm. 9.between 25mm-100mm of mesh size wire fencing 10.Can be used with kinds of galvanized or PVC wire
Technical Parameter:
1. Width scope of weaving: 1000-3000mm; Suitable for all kinds of Electro-galvanized, Hot-dipped galvanized diamond shape mesh
2. Mesh scope of weaving: 25--100mm(According to the requirements of customers, Can provide 2 different types of knife molds)
3. Wire diameter scope of weaving: 2.0- 4.0mm
4. the output per minute: for example: If the mesh is 50*50mm, width 3000mm, the Output will be 100/h
5. the machine is controlled by PLC automatic controller
6. Power consumption: Servo motor power:5.5KW Machinery total power:10KW
7. Suitable wire to the machine: High-quality low-carbon steel wire,
Galvanized Steel Wire, Stainless steel wire, Aluminum alloy wire, Aluminum-clad
Steel Wire
ANPING XINGMAO METAL WIRE MESH CO.,LTD Contact Name
Larry Mesh width
3000mm Maximum mesh hole size
80mm Minimum mesh hole size
40mm Maximum Wire diameter
4.0mm Minimum Wire diameter
2.0mm Material type
Galvanized wire ,stainless wire, Aluminum alloy wire, PVC Coated wire. Selvage type
Hook edge or Screw edge Machine speed
80-120/hours Machine weight
2.3T Machine size
6.3x2.8x1.8m Machine voltage
Standard is:380V60Hz,We according to your needs Drive system type
Servo motor(EURA) 5.5KW PLC brand
Delta Control system type
Touch screen control(English) Adjustment parameters
on the touch screen Delivery time
25 -30 day
Installation and commissioning:
Machine to be installed and commissioned by SEMAI technicians.
the seller will send our engineer to install the machine accordingly if the buyer need.
the buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
Eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
If you have any interest in our chain link fence machine,please feel free to contact with us.
