Xiamen Matrix Technology Co., Ltd.
China Manufacturer with main products: SDI Converter, Multiviewer, Fiber Extender, HDMI Converter, Matrix Switcher, Distribution Amplifier |

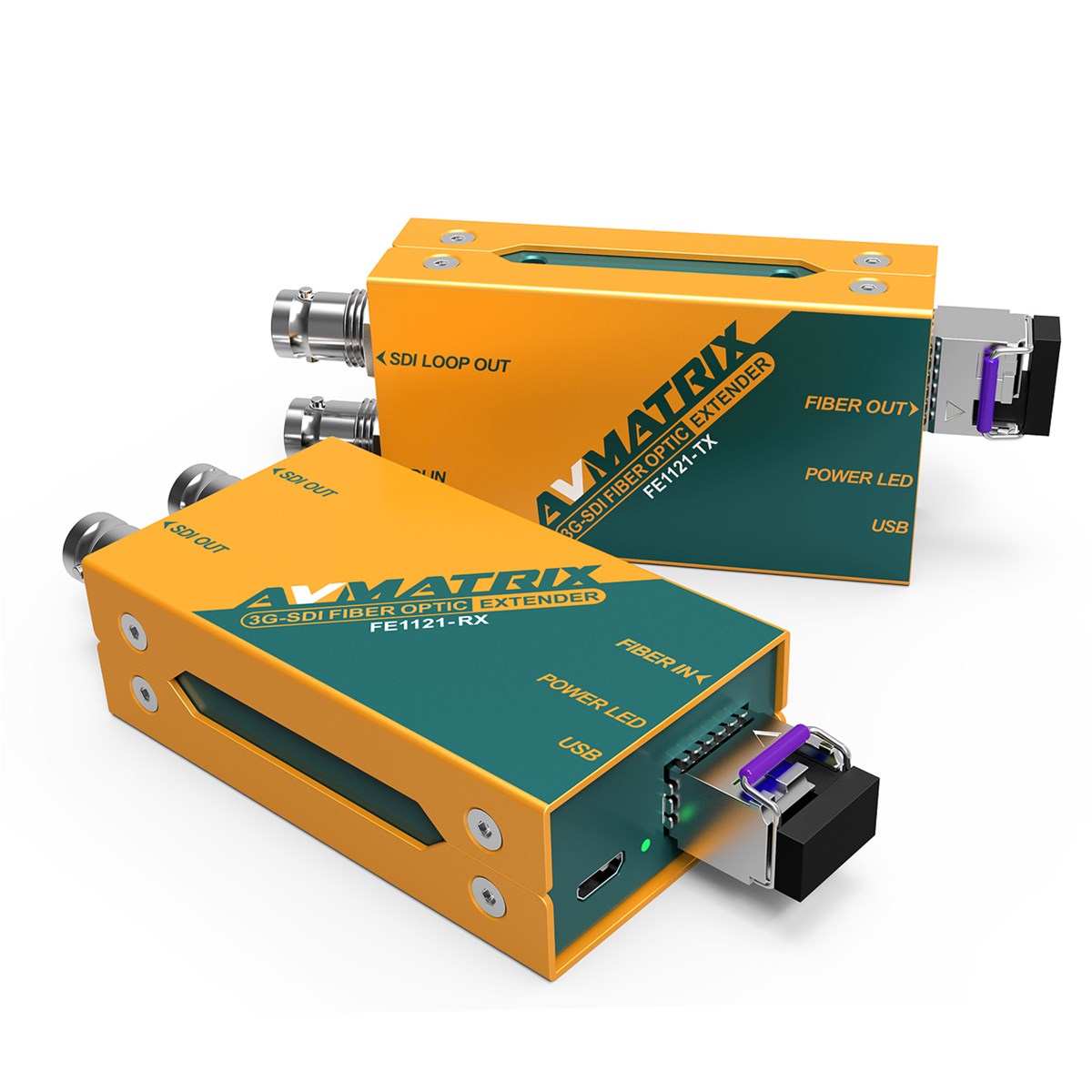

3G-SDI Fiber Optic Extender
| FOB Price: | 409.00 - 439.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Avmatrix
- Wavelength: 1490
- Data Rate: 3G
- warranty: 3
- Connector: SG-SDI;Fiber
- Model Number: FE1121
Specifications
Features
- 20km transmission distance
- Support 3Gbit Level A and Level B (all formats)
- SFP/ LC Fiber transmitter & receiver
- SDI equalization and re-clocking
- 3G-SDI input & loopout on transmitter
- Dual 3G-SDI outputs on receiver
- SDI input automatic switching SD, HD & 3G
- USB power supply

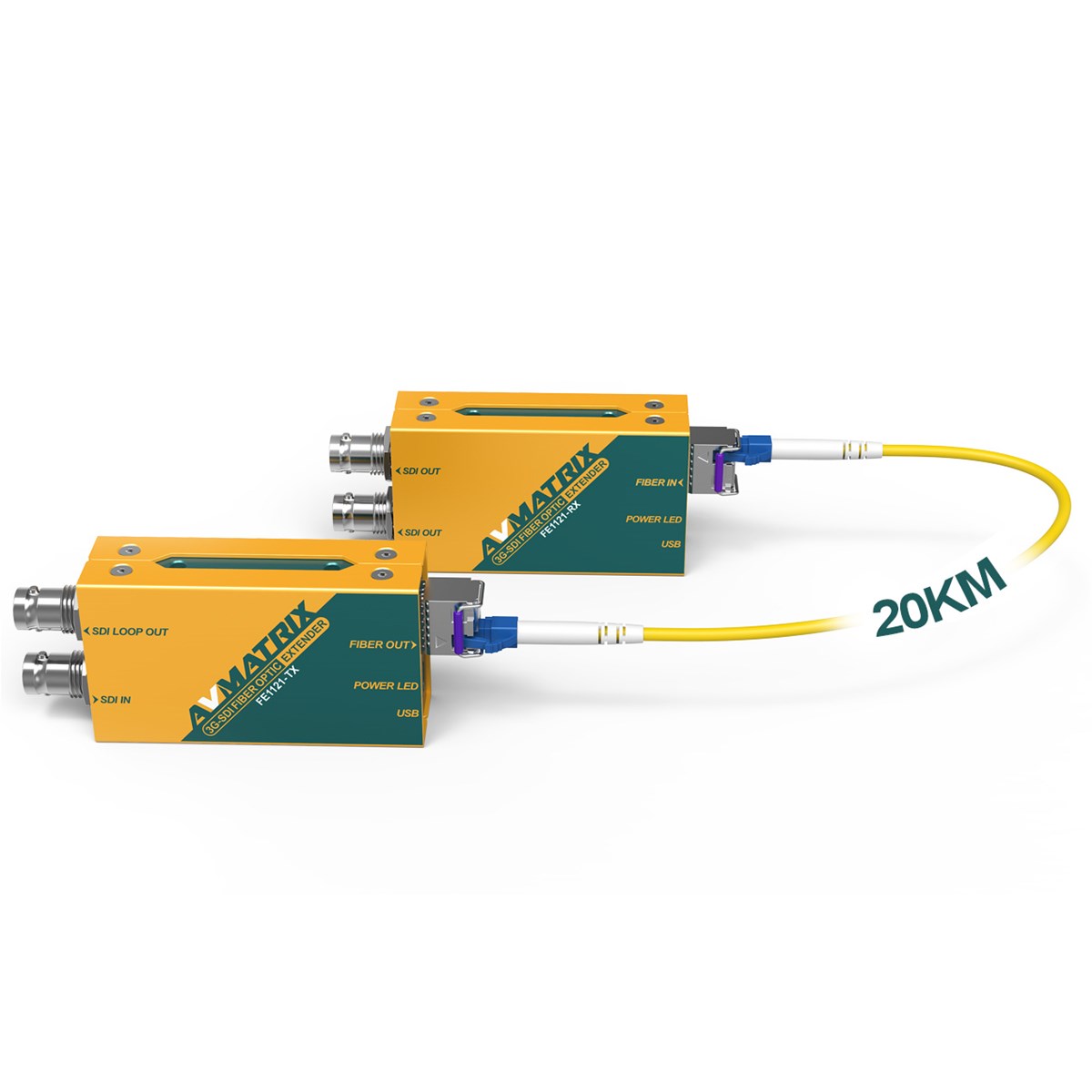

20km Transmission
the 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1490nm wavelength single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 1080p (Max. Bandwidth: 3Gbps) with audio and metadata.
SFP module with LC connector
the fiber extender uses hot-pluggable SFP design with LC connector. You can replace the module anytime and anywhere. It is designed to transmit data rates from 50Mbps to 3Gbps, compliant with SFP MSA, SFF-8472 and SMPTE 297M-2006.
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 120m for 3G and 140m for HD-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 3G level A & level B formats.
