Home >Products Catalog > Cold Room Door

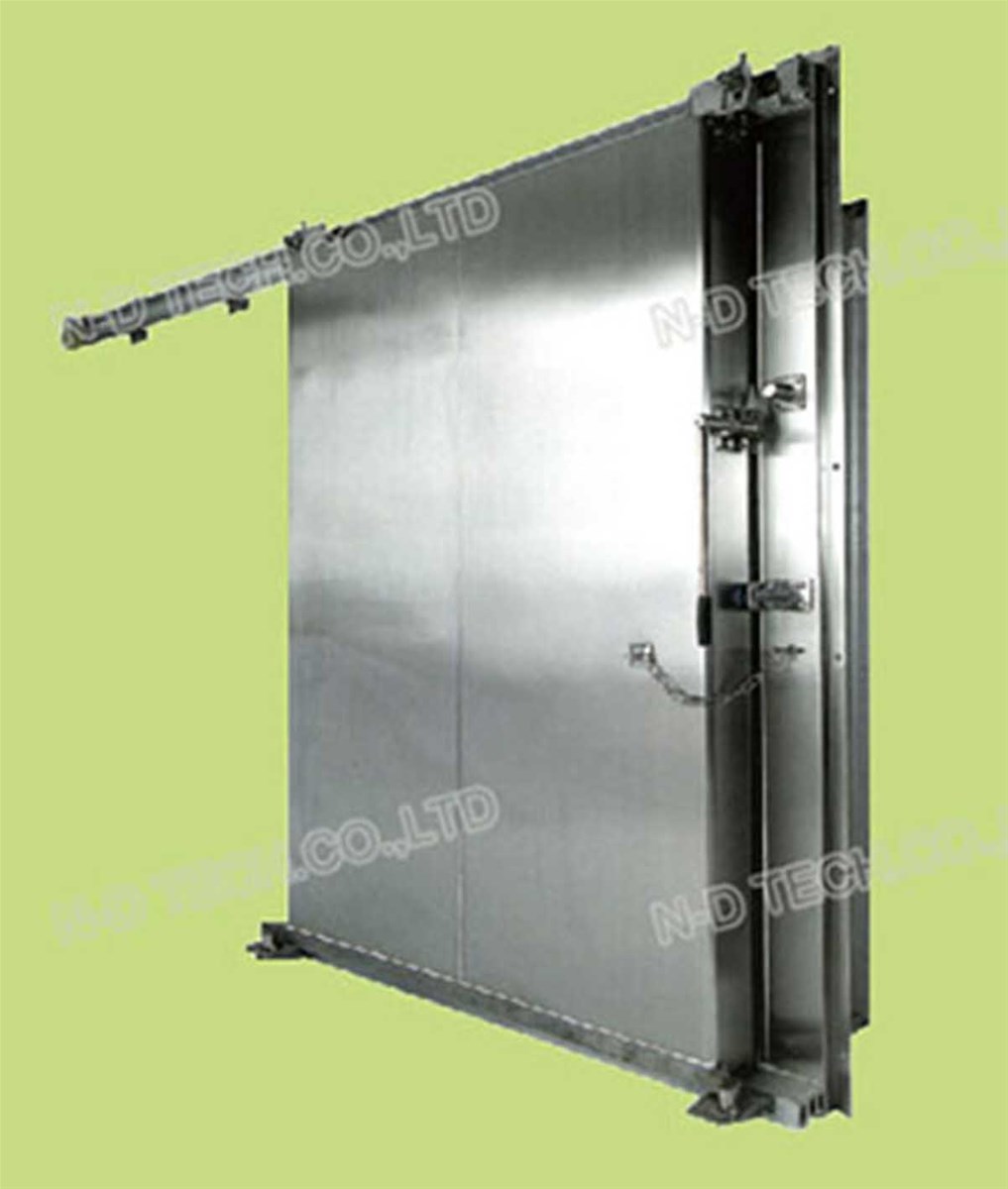

Cold Room Door

FOB Price:	1,000.00 - 2,000.00 USD/Set
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

2. Chinese Factory Fabricated Iron Doors EBD001...

Price:380.00-450.00 USD/Square Meter

Min. Order:1 Square Meter
ST single door

Price:

Min. Order:
Fail Safe Electric Strike for Frameless Glass D...

Price:34.00-37.00 USD/Piece

Min. Order:1 Piece
custom wood screen doors

Price:50.00-200.00 USD/Unit

Min. Order:100 Units

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: Automatic Door Operators
Brand Name: n-d
Type: electric door
Motor: motor
Motor power: 550w
Product Name: cold room door

Specifications

Heavy electric cold storage door

cold room door

If the door size larger, can make it double door. Air curtain can be installed according to customer's requirement. Can also be upgraded to rack, electric door and belt electric door.

Features:

Anti-folder function: 2 meters infrared sensor, safe edge optional

One button open and close: open, stop, close the door position arbitrary control.

Power source: 380V. Motor: AC380V 550W

Electrical tropics: 36V, 15W/M

Opening and closing time: 5-8 seconds (switch arbitrary adjustable)

Material: 304 stainless steel

Laser cutting

Aluminum alloy slideway

Double door / single door

Air curtain can be added

Rack electric / belt electric

Door thickness: 100/150mm

Grade of insulating materials: B1(PIR)

Scope of use: large freezing room,cold storage.

Applications	Food, industry, supermarkets, warehouses, pharmaceuticals, retail.
Optional accessories	Visual window, optional insulating glass. the remote control, anti-collision column, installed in the openings on both sides, to prevent the vehicle hit the door wrongly.
Applicable environment	-45℃~ +50℃
Sealing strip	using EPDM production, chemical resistance, good stability. Temperature wide applicability, long-term working temperature of -50c ~ +130℃.
Door panel	Using pOlyurethane and stainless steeltofoamandMold,goodAppearanceandInsulation.
Doorframe	Made of aluminum alloy, the appearanceis clean and generous, durable, avoid wood door shortcomings of easyPerish, low strength. Equipped with automatic temperature limitingHeating strip, noneedTemperature control or manual switch.
Guide rail	Specially made aluminum alloy guide rail, the wheel works on the inner lining rail and the inclined rail, so that the door is separated from the door Frame when it opens, and the door and the floor are pressed tightly when closed.
Transmission system	It adopts synchronous motor and code combination to eliminate stroke switch and double stable switch, and can correct error free and precise action.At the same time, the electromagnetic clutch is used to realize the electric movement automatically and the manual conversion ensures the safety and practicability of the electric door.
Electric control system	Schneider electric component ensures the reliability of electronic control system. the PLC programmable controller makes the circuit of the electric control system greatly simplified. Wireless control, anti blocking system, program design and other trigger states corresponding to different circumstances, so that the door control to achieve perfect results.
