Iron Based Nanocrystalline Ribbon

FOB Price:	10.00 - 12.00 USD/Kilogram
Supply Ability:	40,000 Ton(s) per Year
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China

Quick Details

Application: Industrial Magnet
Shape: Strip
Composite: CuFeNBSiB
Type: Soft
Brand Name: ZY AMORPHOUS

Specifications

1 Introduction

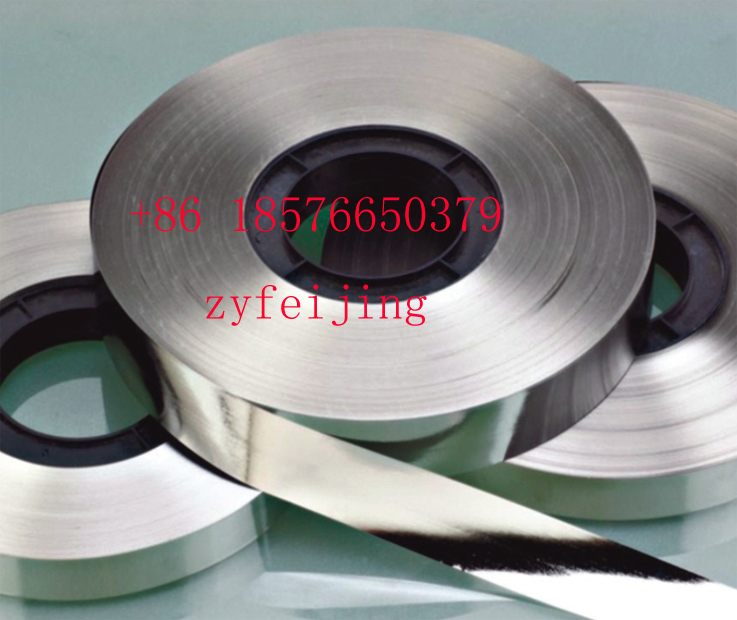

Iron Based Nanocrystalline Ribbon

Iron Based amorphous alloy consists of Fe, Si, B, Nb, Cu, etc. the alloy with Cu and Nb will become crystallite with size in 10-20nm when annealing above the crystallization Temperation by particular annealing and crystallization treatment. the Crystallite material is defined as.

2 Application

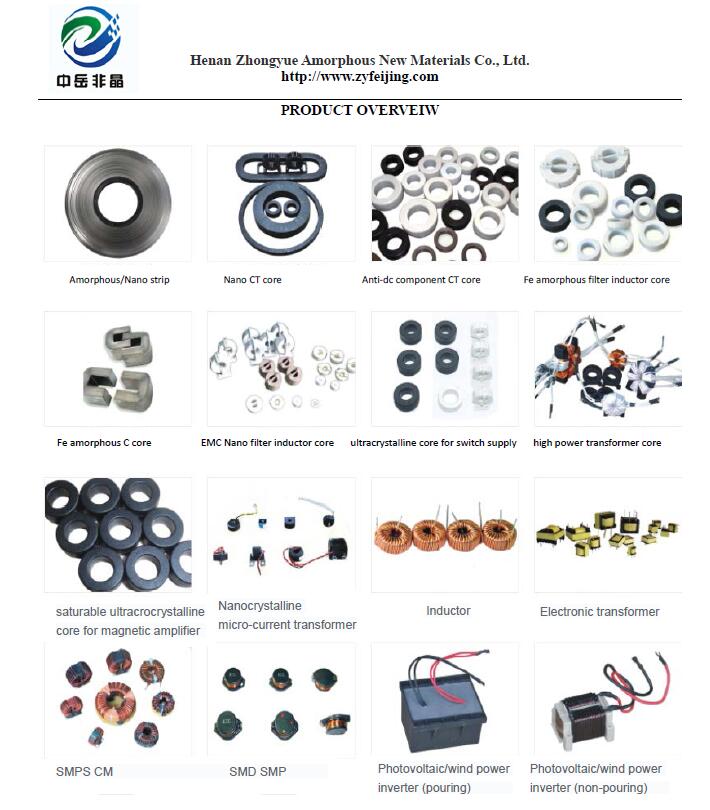

EMC common mode and Differential mode filter inductor core;

Switching supply Transformer core in high, medium, and low power;

Current Transformer core in all accuracy (zero sequence, leakage protection);

Magnetic Amplifier core, peak suppressor core, saturable inductor core;

It has excellent Property of high saturation flux density, high permeability, low coercivity, low Loss, good stability, high strength and corrosion resistance, etc.

It can replace Silicon steel, permalloy and ferrite as ideal material for transformer in high and medium frequency, mutual inductor, inductance components,

It has the Highest PQ ratio in the metal soft magnetic material.

4 Property

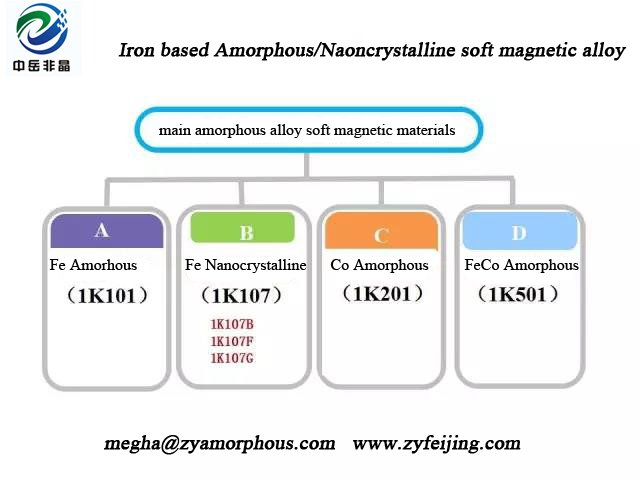

Model : 1K107

Saturation Flux density Bs /T	1.25	Saturation Magnetostriction λs	27*10^-6
Curie Temperature Tc()	560	Density D (g/cm^3)	7.2
Crystallization Tx(℃)	510	Resistivity Ρ(Ωm2/m)	130
Hardness HV (kg/mm^2)	880	Thickness um	29-35

Model : 1K107B

Thickness um	0.020-0.025	Filling Factor σ	≥0.80
Magnetic Displacement B／T	≥1.12	Coercivity Hc(A/m)	≤2.0
Iron Loss P0.5T/20k (W/kg)	≤25	Iron loss P0.3T/100k /(W/kg)	≤100
Permeability U(1khz)	≥70000	Permeability U(10khz)	≥60000
Permeability U(100khz)	≥10000	Curie Temperature Tc℃	570
Continuous operation Temp℃	-50-120	Saturation Magnetostriction λs	<2*103-6

5 Specification

Item	Width (mm)	Thickness (μm)	Thickness error (μm)	Lamination Factor
Spray Strip1K107	2-50	25-35	±1	>0.80
Spray Strip1K107B	2-50	18-25	±1	>0.75
Shear Strip1K107	2-50	25-35	±1	>0.80
shearStrip 1K107B	2-50	18-25	±1	>0.75
