Shanxi Solid Industrial Co., Ltd.
China Manufacturer with main products: Ductile Iron Pipes, Ductile Iron Pipe Fittings, Steel Pipes, Steel Pipe Fittings, PVC Pipes, Flange Adaptors, Manhole Covers, Valves |

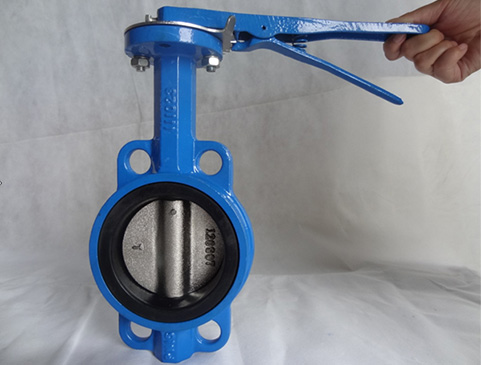

Water Type Butterfly Valve
| FOB Price: | 100.00 - 10,000,000.00 USD/Ton |
|---|---|
| Supply Ability: | 3,000 Ton(s) per Month |
| Payment Terms: | L/C, D/P, T/T |
Quick Details
- Brand Name: Solid
- Temperature of Media: -
- Material: -
- Pressure: -
- Standard or Nonstandard: -
Specifications
Standard: EN593/ ISO 5752 /BS5155/AWWA C504
Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material:
Body: DI/CI /Carbon Steel/Stainless Steel
Disc: DI/Stainless steel 304/316, AL-Bronze
Shaft: Stainless steel410/416/420, Seat: EPDM/NBR
Coating: Internal and external with fusion bonded epoxy coating min250μm
