Hot Sale Corrugated Cardboard Conveyor Belt

Supply Ability:	60,000 Square Meter(s) per Year
Shipping:	25days against contract
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Woven bag,wooden case

Quick Details

Brand Name: Lingdong
oil resistent: 12
oi; resistent: 1
Model Number: 002

Specifications

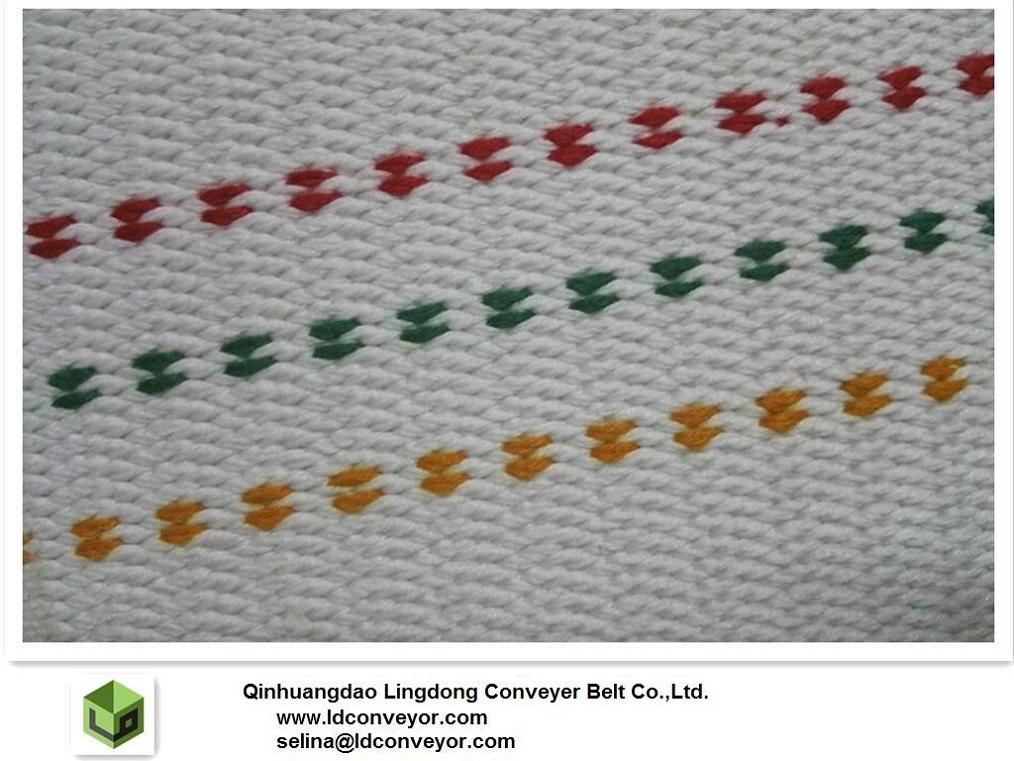

Woven corrugated belt
Middle Speed corrugator Belt is 5 layer structure belt, each structure of the layer are the same, each layer has the same material, and the absorbent fiber is woven into the surface layer, made of the high grade PET continuous filament yarn with high tension and low flexibility. the surface is straight line, then, in return, guarantee correct gluing and fast drying of the board. Our specifical structure design ensure the hydrophilic and drying ability.

Products Features:

Fasteners Cliper Steel

High Tensile strenght

Heat resistance

Good moisture absorption

Excellent air pemeability

Stability dimension

Suitable for linear speed 100 -180m/min

Long life time

Specifications:

Material:PET100%

Applt speed:150m/min.

Thickness:(100.3)mm

Wideth:(1200-2900)mm

Tension:63Mpa

Heat-resistance:under200C,accept short time pressure under150C,accept long time pressure

Coefficient of friction:0.35

Weight per unit:(40.2)kg/m2

Min. winding radius:R75mm

Air-permeability:1.95M³/M²

Life:14000h
hot sale Corrugated cardboard conveyor belt
