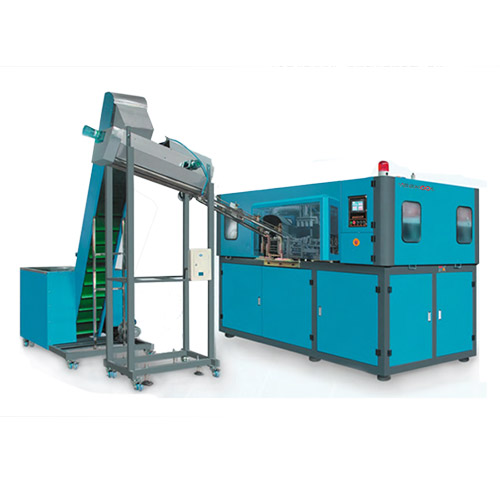

Fully Automatic PET Bottle Blow Molding Machine YKA Series

FOB Price: 33,000.00 - 50,000.00 USD/Set
Supply Ability: 15 Set(s) per Month
Shipping: Shanghai / Ningbo
Payment Terms: L/C, T/T
In Stock

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Brand Name: YEEKOOL
  • Automatic: Yes
  • Blow Moulding Type: Stretch Blow Moulding
  • Condition: New
  • Warranty: One Year
  • Weight: 3.0T
  • Dimension(L*W*H): 2.1*1.4*2.5
  • Power(W): 68kw
  • Voltage: 380V/50HZ
  • Model Number: YKA
  • Plastic Processed: PET
  • Application: Bottle
  • color: Blue or customization

Specifications

Fully Automatic PET Bottle Blow Molding Machine YKA Series
Automatic bottle blow molding machine specifications:
1.Compact space design for convenience of mold-conversion,repairing and maintenance.
2.Utilization of automatic central lubrication.
3.Minimized transfer pitch for increasing heating efficiency and saving energy.
4.Swift exchange design for preform mandrels.
5.Optimized air flow in the oven for stable heating process.
6.Easy to adjust,exchange and access heating oven;Protection for preform thread against heating.
7.Electronic inspector for ejecting faulty preform and bottles.
8.Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.
9.Fast,safe and accurate cam-controlled blowing wheel for providing the best bottles.
10.Precise control of blowing technique to produce less-weighted bottle.
11.Operating blow moulding machine through touch panel; program protected by code lock.
12.through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
13.Smart design for quick conversion of blow mold.

Item YKA600-4 YKA2000-4 YKA600-6 YKA1000-2 YKA2000-2
Theoretical output 3500-4000 3000-4000 5000-6000 1800-2000 1800-2000
Container volume 0.65L 2L 0.6L 1L 2L
Preform inner diameter 38mm 38mm 38mm 45mm 60mm
Max.Bottle diameter 70mm 105mm 68mm 85mm 105mm
Max.Bottle height 240mm 350mm 240mm 280mm 350mm
Cavity 4Pc 4Pc 6Pc 2Pc 2Pc
Main machine size 3.05X1.95X2.25m 3.6X2.1X2.3m 4.05X2.2X2.3m 2.4X1.73X1.9m 3.1X1.75X2.25m
Machine weight 2.8T 3.3T 3.6T 1.8T 2.2T
Feeding machine dimension 2.1X1.3X2.5m 2.1X1.3X2.5m 2.65X1.2X3.1m 2.1X1.0X2.5m 2.5X1.4X2.5m
Feeding machien weight 0.25T 0.25T 0.4T 0.25T 0.25T
Max.Heating power 42kw 54kw 48kw 21kw 27kw
Installation power 45kw 56kw 50kw 22kw 29kw
Item YKA5000-1 YKA5000-2 YKA5000-3 YKA2500-2
Theoretical output 500-700 1000-1300 1700-1900 900-1200
Container volume 5L 5L 5L 2.5L
Preform inner diameter 120mm 60mm 60mm 12-38mm
Max.Bottle diameter 200mm 200mm 200mm 125mm
Max.Bottle height 350mm 350mm 350mm 350mm
Cavity 1Pc 2Pc 3Pc 2Pc
Main machine size 2.65X1.85X2.1m 2.8X2.07X2.2m 2.8X2.07X2.2m 4.05X2.80X2.5m
Machine weight 2.3T 3T 3T 4T
Feeding machine dimension 2.1X1.4X2.5m 2.1X1.4X2.5m 2.1X1.4X2.5m 2.1X1.4X2.5m
Feeding machien weight 0.25T 0.3T 0.3T 0.3T
Max.Heating power 33kw 66kw 66kw 60kw
Installation power 35kw 68kw 68kw 65kw

If you have any questions about our products, pls feel free to contact us.
