Medicine Powder Bottle Packing Machine

FOB Price: 18,800.00 - 20,000.00 USD/Set
Supply Ability: 1,000 Set(s) per Year
Shipping: shipped in 20 days after order confirmed
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: wooden case

Quick Details

  • Type: Filling Machine
  • Brand Name: Dongtai
  • Packaging Material: Plastic,Wood
  • Packaging Type: Bottles,vial,small bottles
  • Application: Beverage,Chemical,Commodity,Food,Machinery & Hardware,Medical
  • Condition: New
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE,ISO,GMP
  • Weight: 800kg
  • Dimension(L*W*H): 3000*1400*1600mm
  • Model Number: DT
  • Power: 3KW
  • Voltage: 220V
  • Driven Type: Electric
  • Automatic Grade: Automatic


Medicine Powder Bottle Packing Machine

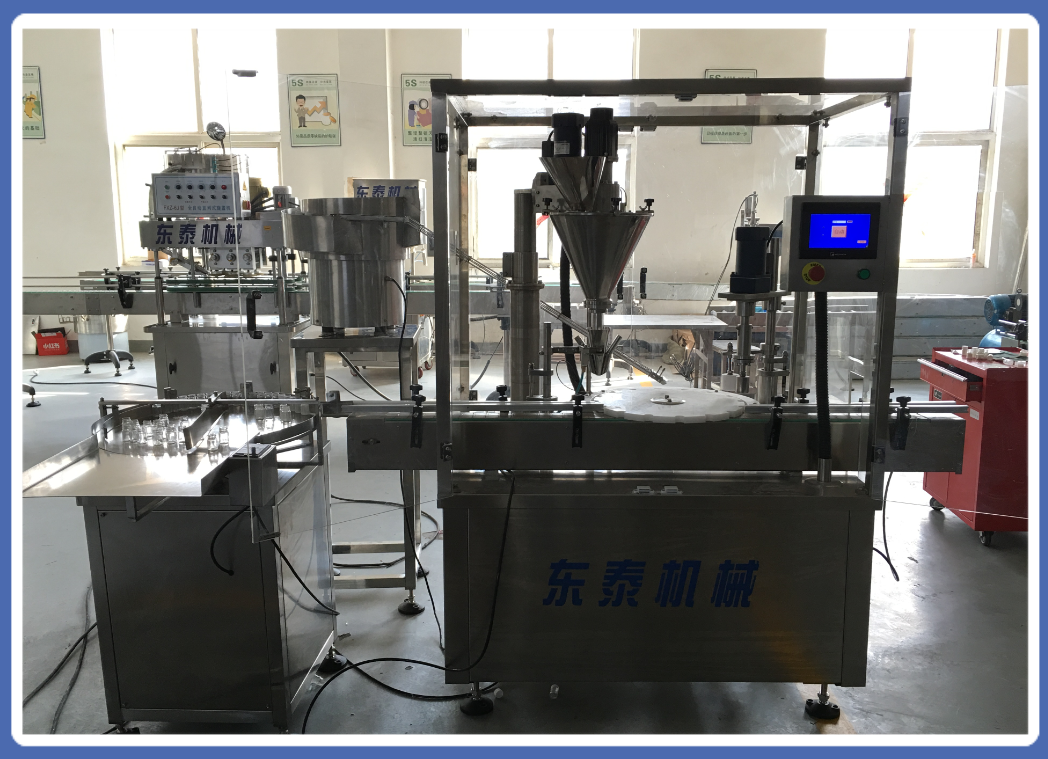

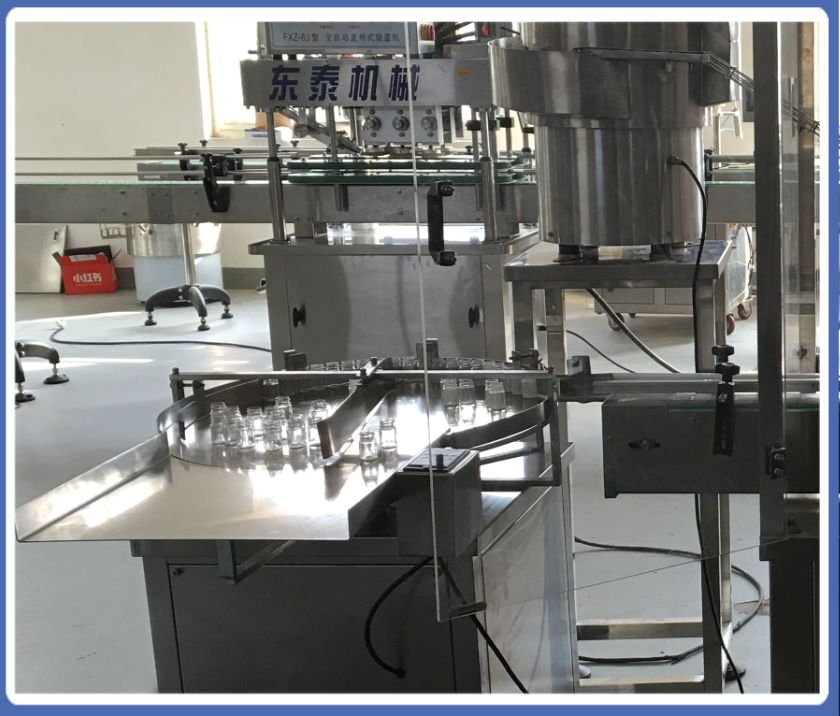

Medicine Powder Bottle Packing Machine is mainly available to fill various powder into round and flat plastic or glass bottles with the range from 2--200ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down; constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action.
No bottle no filling and no capping.
Capping speed: ≤2800b/h
Air pressure: 0.6~0.8Mpa
Air consumption: 200L/min
Voltage: AC220V, 50Hz
Power: 3Kw
Weight: 800Kg
Dimension: (L×W×H): 3000mm×1200mm×1900mm(main part 1200mm)

Characteristics of Medicine Powder Bottle Packing Machine

A. Loading the Man-machine dialogue system with the visual convenient operation.
B. the running speed of minframe is frequency conversion. at the same time, the accurate of filling level is high quality.
C. the Medicine Powder Bottle Packing Machine owns the multi-failure prompt function.
D. If there is no filling, no inner plug in any rail, the Rotary Vials Powder Filling and Capping Machine may be haled automatically.
E. the Medicine Powder Bottle Packing Machine owned the high accuracy on filling and capping technology. this condition reflects the stable drive, the precise degree of filling and capping dosage.
F. at the end, the Medicine Powder Bottle Packing Machine is simple about the operation and also protects bottle caps fully.

Configuration List:
1.PLC: Taiwan Delta
2.Magnetic valve: Taiwan Airtac
3.Sensor system: Autonics
4.Touchscreen: Taiwan Delta
5.Cylinder: Taiwai Airtac
6.Servo motor: Taiwan Dongyuan
7.Material contacted part adopts 316LSS.
