1080P 2x2 HDMI Video Wall Controller Support TCP/IP Control

FOB Price:	199.00 - 299.00 USD/Piece
Shipping:	DHL
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Oceania
Place of Origin:	Guangdong in China

Quick Details

Brand Name: OEM/ODM
Weight: 1KG
Color: Black
Size: 250mm (W) X 118mm(D) X 32mm(H)
Material: Metal
Model Number: VT-TW01
Type: 2x2 video wall controller
Input format: HDMI/VGA/USB/CVBS
Resolution: 1080P@60Hz
Control: IR, Remote, RS232, IP
Power supply: 12V/2.5A DC
Certificate: CE/FCC
Color: Black
Material: Metal

Specifications

Model: VT-TW01

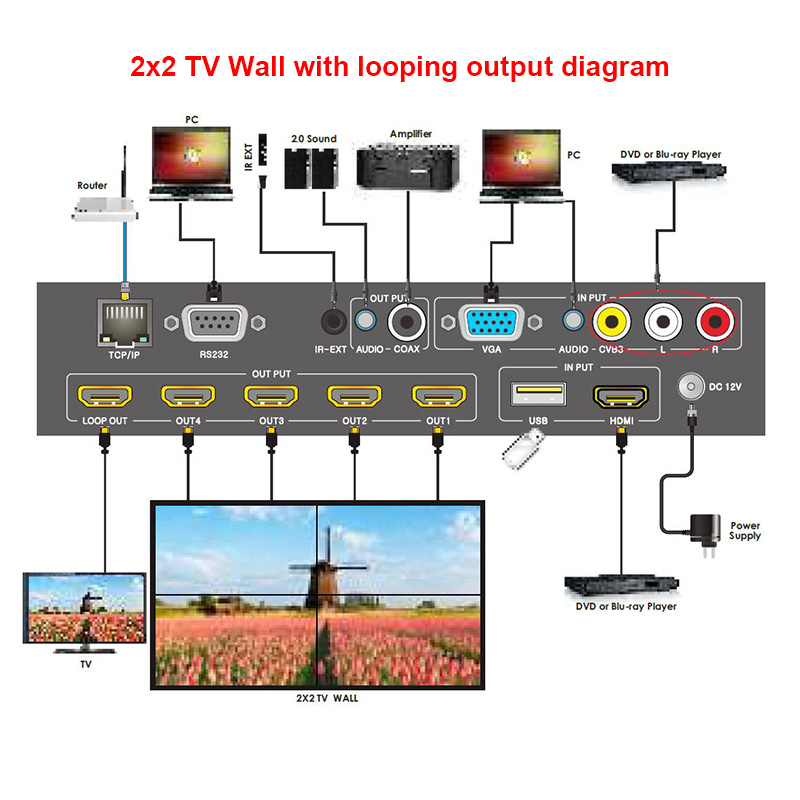

HDMI TV wall controller support customized 2x2, 2x3, 1x4, 4x1, 3x3 TV wall setup.

Product descriptions:
VT-TW01 supports CVBS/VGA/HDMI/USB play input sources to be freely arranged on 4 displays. the embedded scaler converts signals from the input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to 1920x1080. All the operation and control can be done through IR, Ethernet and RS-232.

Features:
1, HDMI 1.3a compliant
2, Output source signal to 4 displays as a full image with adjustable Bezel Correction.
3, Control: support Remote, IR, TCP/IP control and RS232 control.

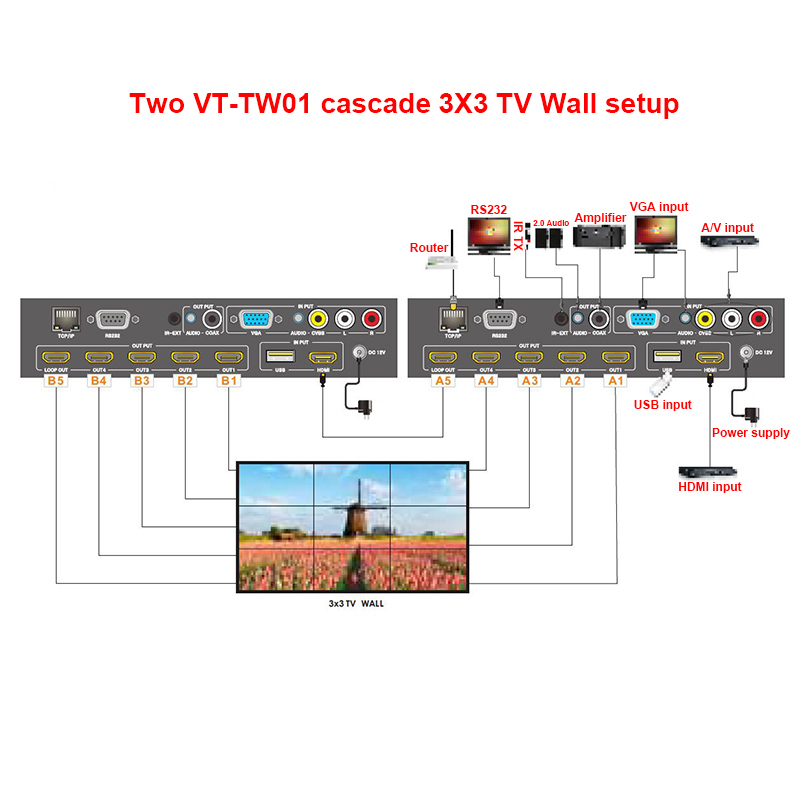

4, Support cascade upto 9 display (3x3 TV wall).
5, Input format: CVBS/VGA/HDMI/USB.
6, Maximum resolution upto 1080P@60Hz.
Package:
1, VT-TW01 TV wall device x1pcs
2, 12V/2.5A DC power supply x1pcs
3, IR cable x1pcs
4, Remote x1pcs
5, RS232 cable x1pcs
6, User manual x1pcs
Specifications:

Video Bandwidth:	225MHz/6.75Gbps
Input ports:	1x HDMI (Female type), 1xUSB,1xVGA,1xCVBS+L/R
Output ports:	5 x HDMI (Female type) ,1xCoaxial, 2xL/R
HDMI Cable Distance:	15M/8-bit 1080p
Power Supply:	12V/2.5A DC (US/EU standards, CE/FCC/ULcerti ication)
Dimensions (mm):	250mm (W) X 118mm(D) X 32mm(H)
Weight (g):	1050g
Chassis Material:	Metal
Silkscreen Color:	Black
Operating Temperature:	0?C ~ 40?C / 32 ?F ~ 104 ?F
Storage Temperature:	-20?C ~ 60?C / -4 ?F ~ 140 ?F
Relative Humidity:	20~90% RH (non-condensing)
Power Consumption:	7.5W
