4m Width Double Wire Full Automatic Chain Link Fence Machine

FOB Price:	11,000.00 - 13,500.00 USD/Set
Supply Ability:	10 Set(s) per Month
Shipping:	by sea
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	wooden box or accoding to customers request

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Brand Name: XM
voltage: 380V
weight: 2.2TON
Condition: NEW
Model Number: XM
Woven Wire Diameter: 2.0-4.5mm: Weight: 2.2t
Mesh Size: 25*25-120-120mm: Outside Dimension: 6.8*2.2*1.7m
width:4m: output:30-150m2/hour

Specifications

Anping Fully-Automatic Chain Link Fence Machine with Factory Best Price
Full automatic chain link fence machine includes:main machine,weaving machine mesh rolling machine and border wire treating machine as well as all related accessories,it can produce many different hole size of the mesh with different molds.the machine is controlled by PLC system,we can set the length of the fence by PLC program.
Chain link fence machine parameter


Woven wire diameter	2.0mm-4.5mm
Mesh size	25X25-120*120mm
Mesh width	4.0m
Production capacity	30-150m2/h
Main machine motor	5.5KW
Weaving machine motor	1.5KW
Border wire treating machine motor	0.75KW*1
Voltage	380V/50HZ
Weight	2.2T
Outside dimension	6.82.21.7m
Certification	CE
Warranty	12 months

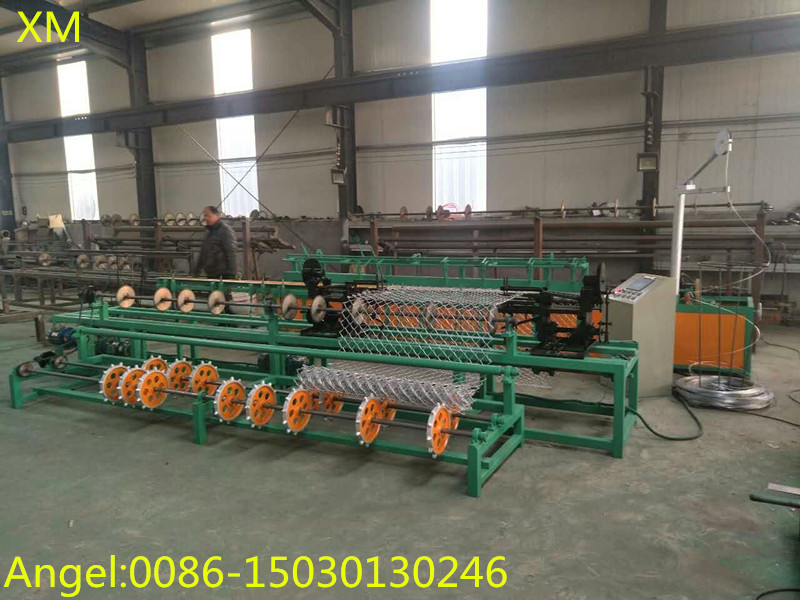

Chain link fence machine main machine 4m width double wire full automatic chain link fence machine

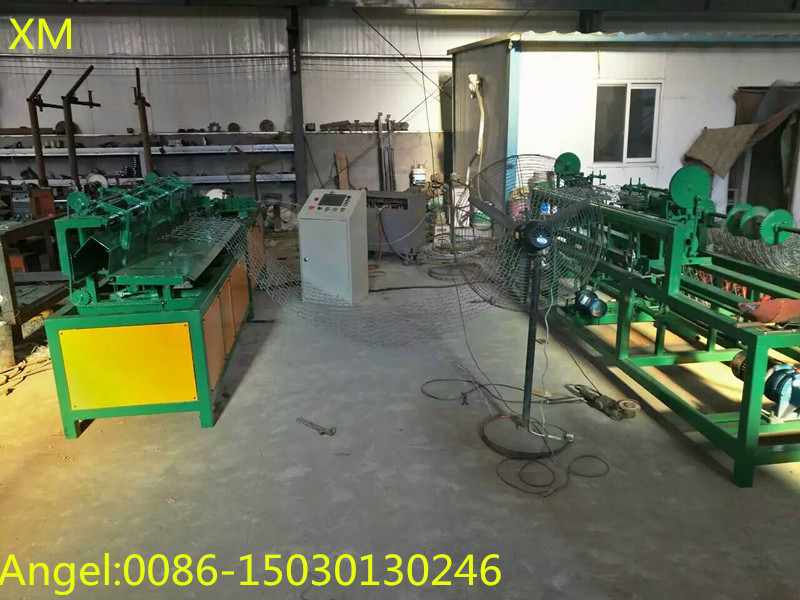

Chain link fence machine mesh cutting machine
4m width double wire full automatic chain link fence machine

Chain link fence machine mesh weaving machine
4m width double wire full automatic chain link fence machine

Chain link fence machine mesh rolling machine
4m width double wire full automatic chain link fence machine

Chain link fence machine double wire feeding system

4m width double wire full automatic chain link fence machine

Chain link fence machine servo motor
4m width double wire full automatic chain link fence machine

Fully-automatic chain link fence machine performance

1.Designed for continuous working system as 24 hours.

2.Double wire input

3.Two sets mold for free

4.Long using time for mold

5.Low tolerance for mold +/-1mm

6.Wire fencing option up to 6 meters height.(the minimum could be any size)

7.Wire fencing capacity(speed):120m2/hour-(as result of tests 70mm mesh size)

8.It works with any thickness between of wire 1.5mm and 6mm.

9.between 25mm-100mm of mesh size wire fencing

10.Can be used with kinds of galvanized or PVC wire

Fully-automatic chain link fence machine after-sales service
Installation and commissioning:
Machine to be installed and commissioned by SEMAI technicians.
the seller will send our engineer to install the machine accordingly if the buyer need.
the buyer have to pay the salary US$100 per day, and the air ticket, accommodation,
Eating and some related fees should be your responsibility.
It is in same condition if the buyer need the seller to send the interpreter.
