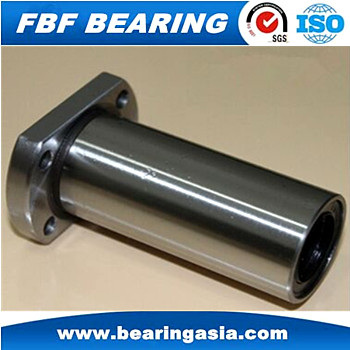

THK FBF JIMBIL LMH6L Flange Type Linear Ball Bearing Bushing LMH6LUU Linear Bearing Drilling Machine Bearing

Supply Ability:	500,000 Piece(s) per Month
Shipping:	Delivery within 3 days after payment
Payment Terms:	T/T, Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. industry package. 2. according to customer requirement.

Quick Details

Type: Linear
Precision Rating: P0 P5 P6
Brand Name: THK FBF JIMBIL
Type: Linear
Linear bearing: Flange type
Accessories: Linear Ball Bearing Bushing
Model Number: LMH6L
Ball rows: four
Inscaibed bore: 6 mm
Outer diameter: 12 mm
Length: 35 mm
Flange diameter: 28 mm
Mass: 28g
Material: Chrome steel, stainless steel
Application: Printing machine, textile machine..

Specifications

THK FBF JIMBIL 3d printer part THK LMH6L Flange Type Linear Ball Bearing Bushing LMH6LUU linear bearing drilling machine bearing

1.THK flanged linear ball bearing bushing:

Linear bearings is a linear motion system at low cost production, for unlimited travel used with cylindrical shaft. Because point contact ball bearing with shaft, so using the load is small. Steel ball with minimal friction spinning, which can obtain high precision of smooth movement. Linear motion bearings metric and inch series: standard (LM/LME/LMB.. UU), gather (LM/LME.. UUAJ) and open (LM/LME.. UUOP); The stretched (LM/LME.. LUU); Flange type (LMF LMK/LMH.. UU, LMEF/LMEK. UU), flange (xl (LMF/LMK/LMH.. LUU, LMEF/LMEK. LUU) among assembly flange type (LMFC LMKC), with leading end flange (LMF - E/LMK - E), simple, OB since embellish, KH LMC/LMG open rack straight line slide block, etc.

2.THK flanged linear ball bearing bushing application:
Linear bearing is widely used in electronic equipment, tensile testing machine and digital 3 d coordinate measuring equipment such as precision equipment, and multi-axis machine tools, automatic punching machine, tool grinding machine, gas cutting machine, printer, card sorting machine, industrial machinery, such as food packages installed the sliding parts.

3.THK flanged linear ball bearing bushing type :
1.Linear bushing:

Cylindrical(Standard) Model LM;

LM3UU,LM4UU,LM5UU,LM6UU,LM8UU,LM8S,LM10UU,LM12UU,LM13UU,LM16UU,

LM20UU,LM25UU,LM30UU,LM35UU,LM40UU,LM50UU,LM60UU, LM80UU,LM100UU

LM10OPUU,LM12OPUU,LM13OPUU,LM16OPUU,LM20OPUU,LM25OPUU, LM3OOPU,LM35OPUU,LM40OPUU,LM50OPUU,LM60OPUU,LM80OPUU,LM100OPUU

Cylindrical(European standard) Model LME;

LME3UU,LME4UU,LME5UU,LME6UU,LME8UU,LME8S,LME10UU,LME12UU,LME13UU, LME16UU, LME20UU,LME25UU,LME30UU,LME35UU,LME40UU,LME50UU,LME60UU, LME80UU,LME100UU

2.Linear bushing flanged type:

Circular Flanged Model LMF;

LMF6UU,LMF8UU,LMF10UU,LMF12UU,LMF13UU,LMF16UU,LMF20UU,LMF25UU,LMF30UU,

LMF35UU,LMF40UU,LMF50UU,LMF60UU,LMF80UU,LMF100UU

Square Flange Model LMK;

LMK6UU,LMK8UU,LMK10UU,LMK12UU,LMK13UU,LMK16UU,LMK20UU,LMK25UU,LMK30UU,

LMK35UU,LMK40UU,LMK50UU,LMK60UU,LMK80UU,LMK100UU

Cut Flange Model LMH;

3.Linear bushing:

Linear Bushing(Standard) Model SC;

SC50UU,SC60UU (normal type)

SC8WUU,SC10WUU,SC12WUU,SC13WUU,SC16WUU,SC20WUU,SC252UU,SC30WUU,SC35WUU, SC40WUU,SC50WUU (long type) SC8VUU,SC10VUU,SC12VUU,SC13VUU,SC16VUU,SC20VUU,SC25VUU,SC30VUU,SC35VUU, SC40VUU,SC50VUU(Short type)

Linear Bushing(Compact) Model SH;

4.LM shaft support: SK;

Model code	Ball rows	Inscaibed bore diameter	Outer diameter	Length	Flange diameter	Mass
		mm	mm	mm	mm	g
LMH6	4	6	12	19	28	18
LMH8	4	8	15	24	32	28
LMH10	4	10	19	29	39	50
LMH12	4	12	21	30	42	55
LMH13	4	13	23	32	43	70
LMH16	5	16	28	37	48	95
LMH20	5	20	32	42	54	150
LMH25	6	25	40	59	62	275
LMH30	6	30	45	64	74	575
LMH6L	4	6	12	35	28	28
LMH8L	4	8	15	45	32	40
LMH10L	4	10	19	55	39	75
LMH12L	4	12	21	57	42	82
LMH13L	4	13	23	61	43	107
LMH16L	5	16	28	70	48	143
LMH20L	5	20	32	80	54	225
LMH25L	6	25	40	112	62	450
LMH30L	6	30	45	123	74	575
