INA FAG FBF JIMBIL SKF QJ312 QJ313 QJ314 Bearings Four Point Angular Contact Ball Bearings
| Supply Ability: | 500,000 Piece(s) per Month |
|---|---|
| Shipping: | delivery within 3days |
| Payment Terms: | Western Union, MoneyGram, Safebuy, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | 1. industrial package. 2. according to customer requirement. |
Quick Details
- Type: Ball
- Structure: Angular Contact
- Outside Diameter: 130-150 mm
- Bore Size: 60-70 mm
- Brand Name: INA FAG FBF JIMBIL SKF
- Structure: Angular Contact
- Type: Ball
- Number of Row: Single Row
- Seals Type: Open
- Precision Rating: P4 P5 P6
- Model Number: QJ312 QJ313 QJ314
- Material:: Chrome Steel
- Cage Material:: Brass Nylon
- Lubrication:: Oil Grease
- Feature:: High Speed
- Application:: Industrial machinery
Specifications
INA FAG FBF JIMBIL SKF QJ312 QJ313 QJ314 Bearings Four Point Angular Contact Ball Bearings

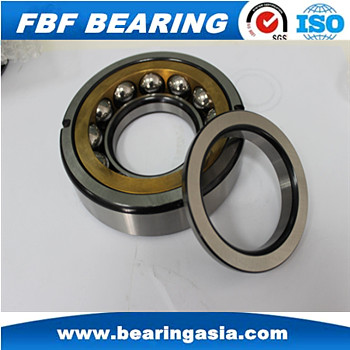

QJ four point angular contact ball bearing is a kind of bidirectional single row angular contact ball bearing. as a result of the special design the groove in the inner and outer ring,it has two contact points with 35 or 45 contact angle between every groove and ball,and so the products can bear bidirectional axial load. It has high limited speed and is siutable for the high-speed operation.It allow the bearing to load a number of balls due to its combined inner ring with double half rings,thus giving a higher load bearing capacity.
| Type | d | D | B | Mass |
| (mm) | (Kg) | |||
| QJ206 | 30 | 62 | 16 | 0.24 |
| QJ306 | 30 | 72 | 19 | 0.42 |
| QJ207 | 35 | 72 | 17 | 0.35 |
| QJ307 | 35 | 80 | 21 | 0.57 |
| QJ208 | 40 | 80 | 18 | 0.45 |
| QJ308 | 40 | 90 | 23 | 0.78 |
| QJ209 | 45 | 85 | 19 | 0.52 |
| QJ309 | 45 | 100 | 25 | 1.05 |
| QJ210 | 50 | 90 | 20 | 0.59 |
| QJ310 | 50 | 110 | 27 | 1.35 |
| QJ211 | 55 | 100 | 21 | 0.77 |
| QJ311 | 55 | 120 | 29 | 1.75 |
| QJ212 | 60 | 110 | 22 | 0.98 |
| QJ312 | 60 | 130 | 31 | 2.15 |
| QJ213 | 65 | 120 | 23 | 1.2 |
| QJ313 | 65 | 140 | 33 | 2.7 |
| QJ214 | 70 | 125 | 24 | 1.3 |
| QJ314 | 70 | 150 | 35 | 3.18 |
| QJ215 | 75 | 130 | 25 | 1.5 |
| QJ315 | 75 | 160 | 37 | 3.9 |
| QJ1016 | 80 | 125 | 22 | 1.05 |
| QJ216 | 80 | 140 | 26 | 1.85 |
| QJ316 | 80 | 170 | 39 | 4.6 |
| QJ1017 | 85 | 130 | 22 | 1.1 |
| QJ217 | 85 | 150 | 28 | 2.2 |
| QJ317 | 85 | 180 | 41 | 5.34 |
| QJ1018 | 90 | 140 | 24 | 1.45 |
| QJ218 | 90 | 160 | 30 | 2.75 |
| QJ318 | 90 | 190 | 43 | 6.4 |
| QJ1019 | 95 | 145 | 24 | 1.5 |
| QJ219 | 95 | 170 | 32 | 3.35 |
| QJ319 | 95 | 200 | 45 | 7.4 |
