Wireless Water Tank Monitoring System 1km ON-off Control

FOB Reference Price: $ 180
Wholesale: 2 Piece(s)
Supply Ability: 600 Piece(s) per Month
Shipping: express
Payment Terms: T/T, Western Union
Update Time: 2018/4/2
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: standard

Quick Details

  • Brand Name: Lensen
  • Frequency: 433MHz
  • Frequency Range: 429-436
  • Polarization: no
  • Weight: 0.6

Specifications

Features:


Monitor remote side water tank's level value and reveal on touch panel

Switches on the pump when the water in the remote tank goes low level.

Switches off the pump when the water in the remote tank reaches high level.

Wireless connection, no need to switch ON/off the pump manually.

No more overflow thus saving water electricity & manpower.

Easy installation. No communication fee.

Hardware needed:

1. 24V DC Power supply (12V customize)

2. Thrown-in level sensor

3. LS-RAI02 analog acquisition module

4Pump

5. LS-RDIO0202B (with antenna)

6. Solid state relay

7. HMI



System diagram

Wireless Water Tank Monitoring system 1km ONOFF control

how to connect tank side

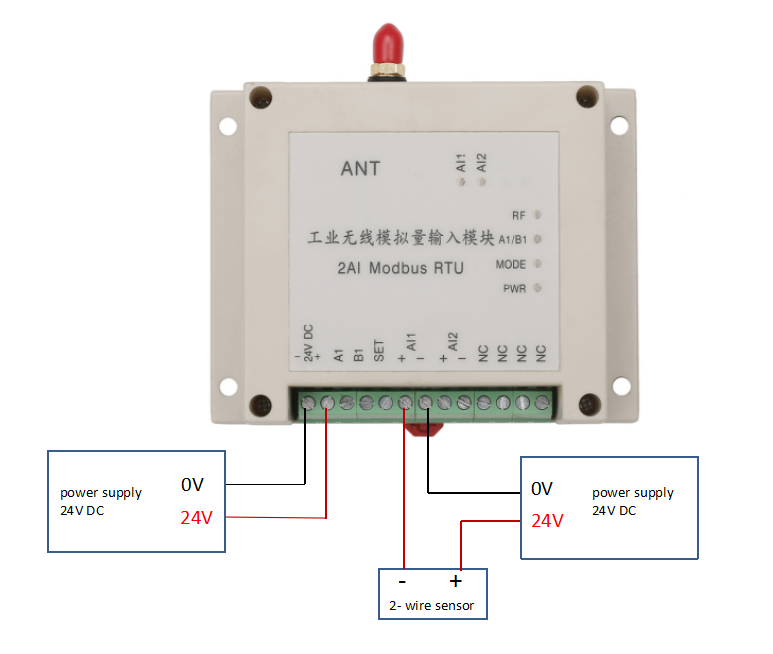

Connect level sensor with our LS-RAI02

Wireless Water Tank Monitoring system 1km ONOFF control

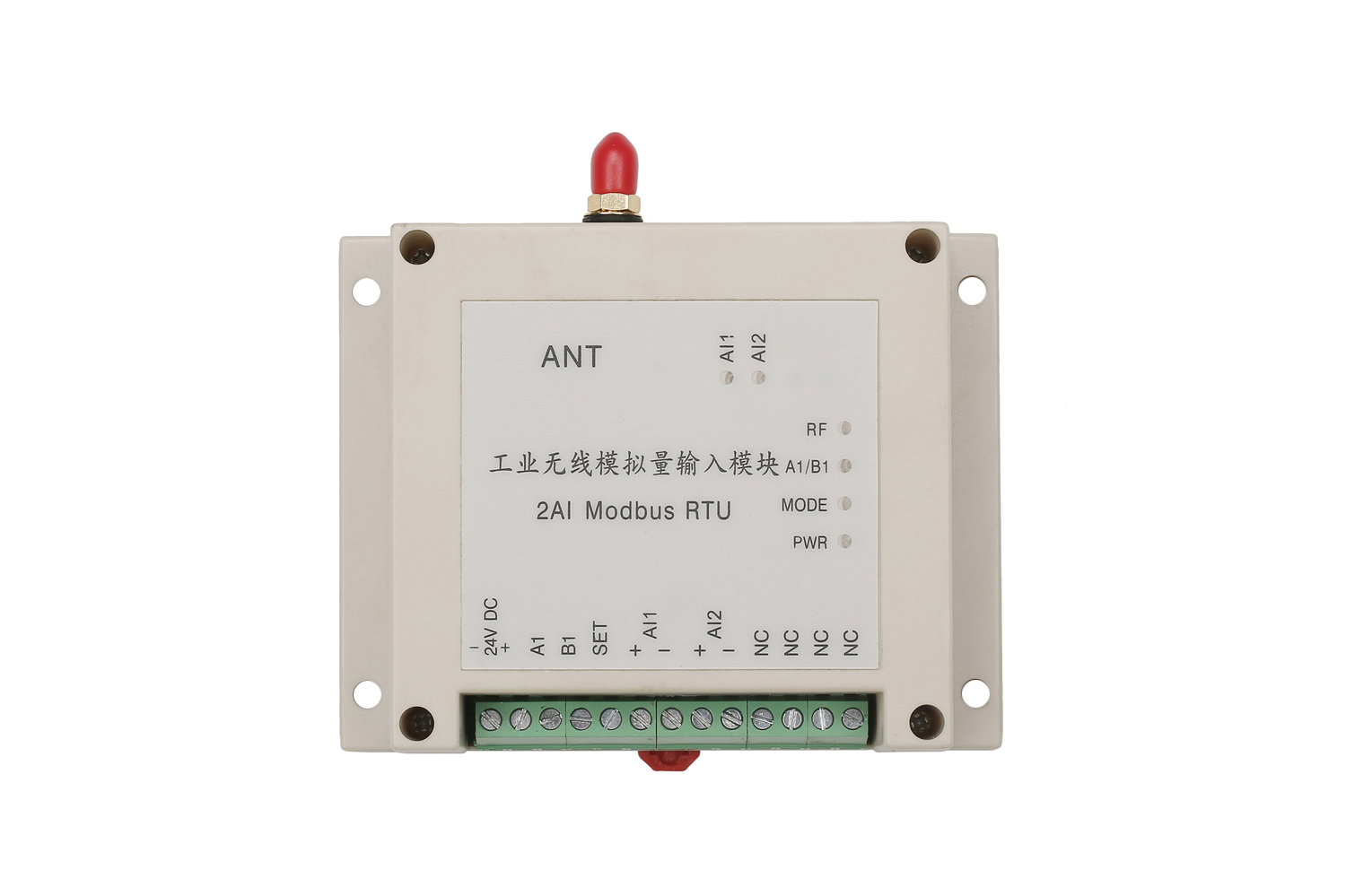

about LS-RAI02

It is an analog acquisition module. OK to collect 4-20mA analog signal and wireless transmit to remote side. Support 2-wire sensor or 3-wire sensor. in this application, you use only 1AI.

Frequency

433MHz or 450MHz or 470MHz

Power output

1W for 2km LOS control

Products

1AI

Input type

4-20mA or 0-5V

Resolution ratio

24 bit

Accuracy

±0.04%

Power supply

9-36V DC    usually use 24V DC

Interface

RS-485

Channel No.

16ch default, can program via DIP switch

Working temperature

-35 °C ~ +75 °C industrial

Dimension

115×90×40(mm)

Fix way

Standard 3.5 inch industrial DIN Guild rail

Wireless Water Tank Monitoring system 1km ONOFF control

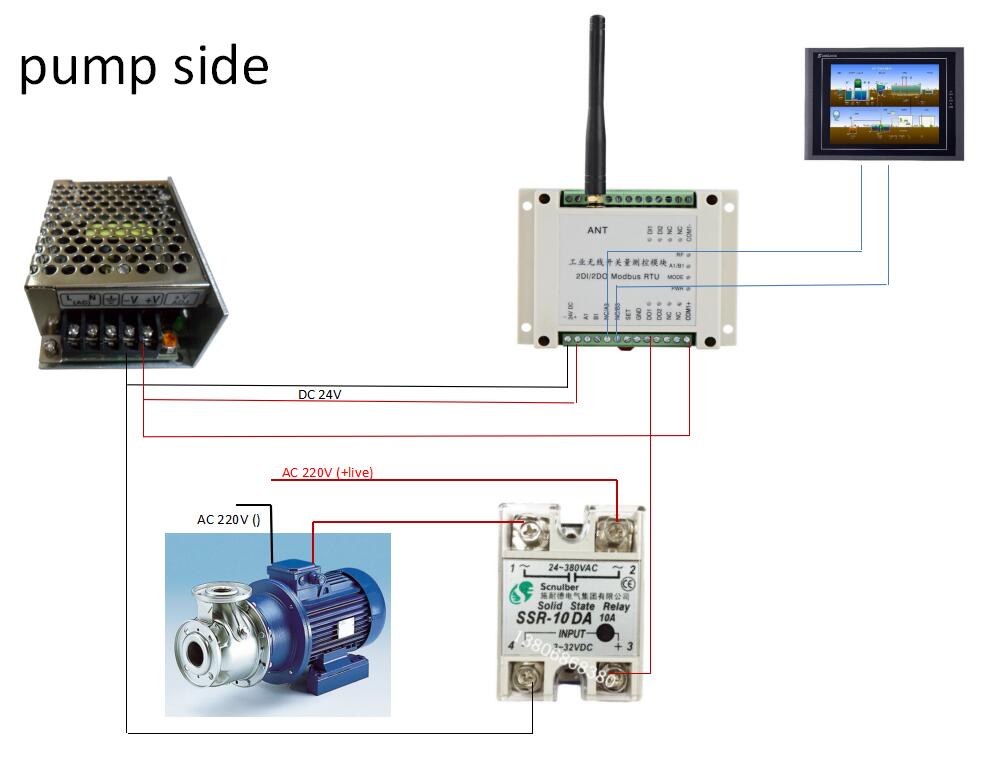

how to connect pump sidE

LS-RDIO0202 has 1 relay output, wireless RS485 port A3 and B3 to connect with HMI.

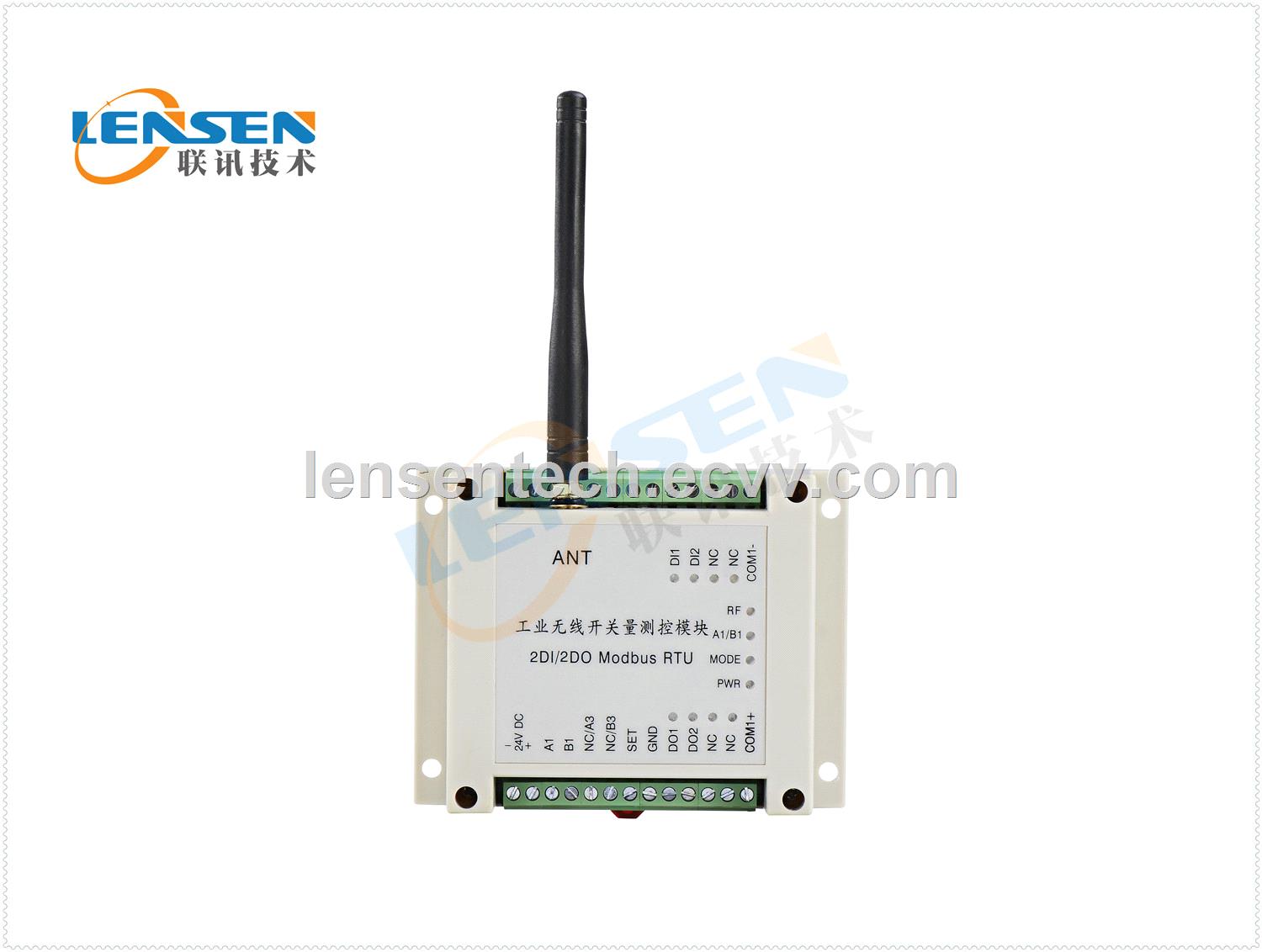

about LS-RDIO0202. in this project, you use only 1 output.

Parameter

Power output:

1W

Power supply:

9V-30V (choose 24V DC or 12V DC)

Control distance:

3km  or  (1km version)

Output:

2 relay output, contact AC250V/5A,DC30V/5A

Transmitting current:

450mA

Communication port

RS485 (wireless RS485)

Frequency:

433MHz,400, 450,470 or other band

Channel No:

16 Channels, can change via DIP switch

Dimension:

115×90×40(mm)

Temperature:

-35℃~+75℃( industrial)

Mounting method:

Standard 3.5 inch industrial guild rail

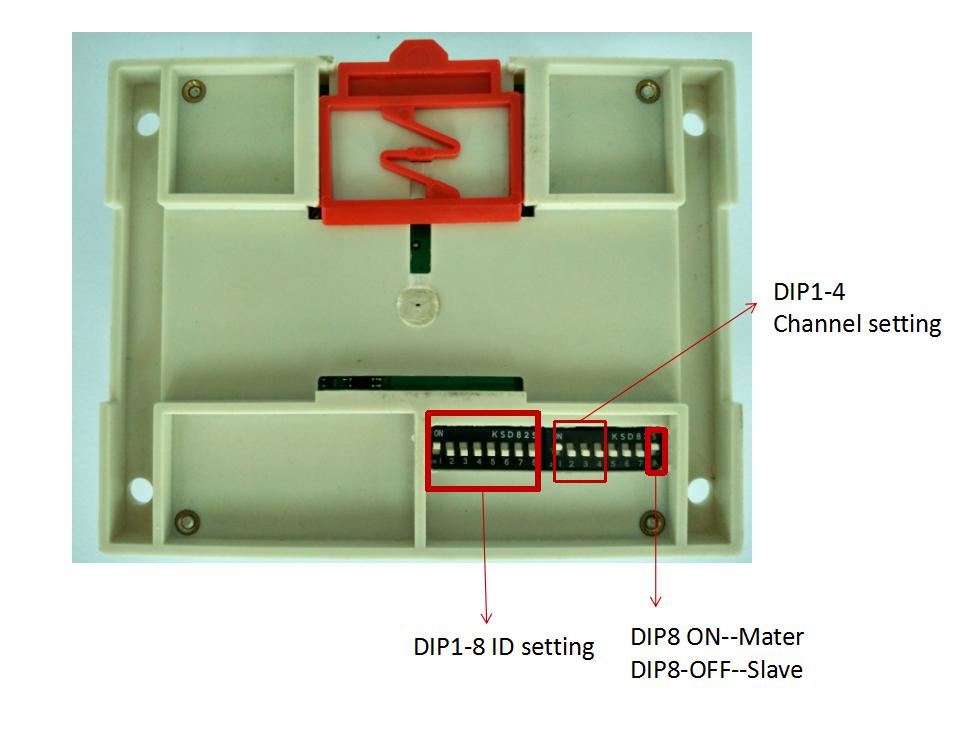

how to set channel and ID

2 modules should set with the same ID, the same channel.

One set as master and one set as slave

Wireless Water Tank Monitoring system 1km ONOFF control

about the HMI program

If you could write HMI yourself, that'S better. If not, we can also provide you HMI with program.

Any further questions about it, welcome to contact Sunny freely.
