Hangjiang Hongyuan Xiangyang Silicon Carbide Special Ceramics Co., Ltd.
China Manufacturer with main products: Silicon Carbide Products, Nitride Bonded Sic Products, Sic Ceramic Pump, Ceramic Riser Tube, Sic Protection Tube, Sic Anti-Wear Pipe, Sic... |
Home
>Products Catalog > SiC Ceramic Riser Tube Stalk Tube NSiC Pipe Nitride Bonded SiC Lifting Tube

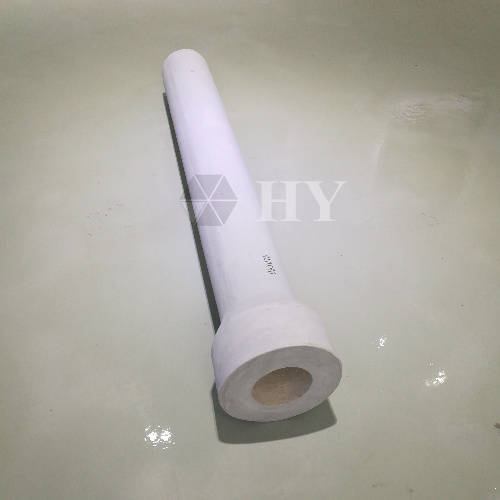

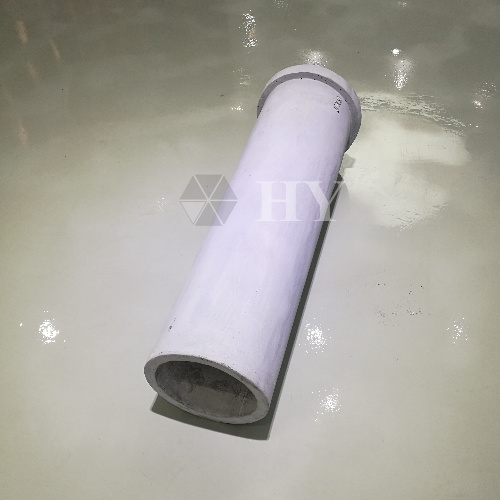

SiC Ceramic Riser Tube Stalk Tube NSiC Pipe Nitride Bonded SiC Lifting Tube
| Supply Ability: | 10,000 Piece(s) per Year |
|---|---|
| Shipping: | 35 days for production |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | plywood cases package |
Quick Details
- Brand Name: HY
- Refractoriness (Degree): Common (1580< Refractoriness< 1770)
- Al2O3 Content (%): 0
- Material: Silicon Carbide (SiC)
- Shape: Pipe
- Model Number: HYLT
- Si3N4: 18-24%
Specifications
Ceramic Lifting Tube for aluminum low pressure casting
Anti-corrison and anti-wear
Main Advantages:
1.Anti-melting and anti-corrosion, no contamination to metal liquid
2.Good at thermal shock resistance, no dreg or crack
3.Airproof, no aluminum adhered, no slag accumulated, preventing air hole on casting piece.
4.Easy maintenance, long life-time, cost-effective
Technical details:
| Item | Result | Item | Result |
| Density(G/cm3) | 2.65-2.8 | SiC(%) | 70-75 |
| Apparent porosity(%) | 12-15 | Si3N4(%) | 18-24 |
| Rupture strength in normal temperature (MPa) | 40-55 | SiO2(%) | 1-3 |
| Rupture strength in high temperature (MPa) | 50-65 | Si(%) | <0.5 |
| Heat conductivity (w/m.K)(1100) | 16-18 | the highest working Temperature() | 1600 |
| Heat expansion(10-6) | 4.2 | HONGYUAN SIC | |
Our Factory:
HONGYUAN - the subsidiary of Hanjiang Water Resources and Hydropower Group, is a state-run company specialized in advanced silicon carbide products.
Silicon carbide is the ideal material for top-end refractory components, kiln furniture and abrasives. the silicon carbide ceramics are produced with our finest material, which are excellent in performance of thermostability, corrosion resistance, abrasion resistance, and thermal shock resistance.
with first-rate technology and service, HONGYUAN are competent to provide you with customized silicon carbide ceramics as well as design plans.
