More Super Hard Products Co., Ltd.
China Manufacturer with main products: Resin Bond Daimond Grinding Wheel, Resin Bond CBN Grinding Wheel, Vitrified Bond Diamond Grinding Wheel, Vitrified Bond CBN Grinding Wheel,... |

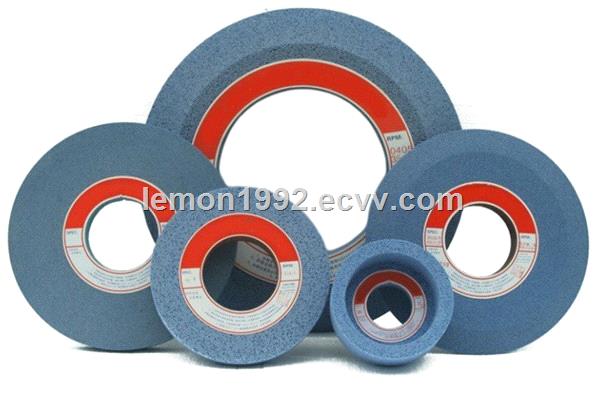

SG ( Sol Gel ) Grinding Wheel
| FOB Price: | 1.00 - 200.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
Quick Details
- Size: all specifications according to customers' requirements
- Bonding Agent: Sol Gel SG grinding wheel
- Abrasive: Al2O3
- Shape: Dish
- Brand Name: MORE SUPERHARD
- Model Number: AII
- Type: Other
- Material: Al2O3
- Grit: 24-180#
- Application: unhardened and hardened steels,such as cast iron,carbon steels, alloy steels, and tool steels, etc.
Specifications
Introduction of SG grinding wheel:
Ceramic abrasives prepared by sol-gel method Is a kind of sintered abrasive, grain size is tiny, only 100- 500nm, hundredths of the size of ordinary corundum abrasive crystal. SG abrasive is high purity, ceramic aluminum oxide abrasive with a submicron crystalline structure deprived from a seeded gel sintering process. the grinding tools made of ceramic abrasive have the characteristic of long life, good self- sharp ability, high cutting efficiency, and low possibility of workpiece burning.
the parameters of Ceramic abrasives:
Main chemical composition (typical value) |
Physical properties (grain size 60) |
the offerable grain size |
Code |
Al2O3 (99.22%) Na2O(0.08%) |
Density 3.90(g/cm3) Bulk density 1.82(g/cm3) Crystal size 0.15 (μm) |
24-180# |
SG |

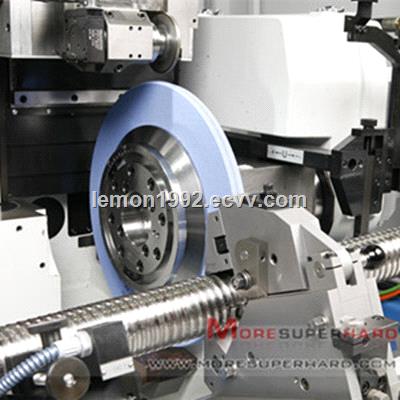

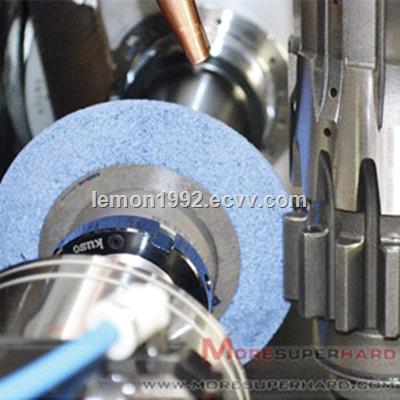

Applications of SG grinding wheel:
* Precision Grinding for unhardened and hardened steels,such as cast iron,carbon steels, alloy steels, and tool steels, etc.
* Internal grinding roller bearings, cylinders, compressor parts, gear parts, hydraulic and pneumatic cylinders etc.

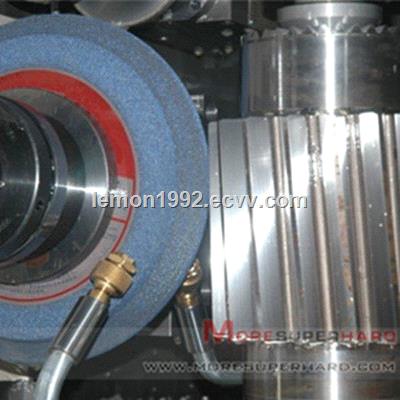

* Grinding tHe crankshaft and camshaft of the engine and transmission of the car; wOrm gear grinding
Advantages of SG grinding wheel:
* Grinding wheel made of ceramic abrasive with has a higher durability and longer life, which is 5-10 times than the grinding wheel made of common corundum.
*Sharp grains, good cutting ability, and high grinding efficiency.
* Good self- sharp ability, microcrystalline structure Benefits;
* Very good cutting capability, sharp grains;
* High removal rate& extended wheel life.
Our company also provides dressing rollers for dressing universal grinding wheels.
